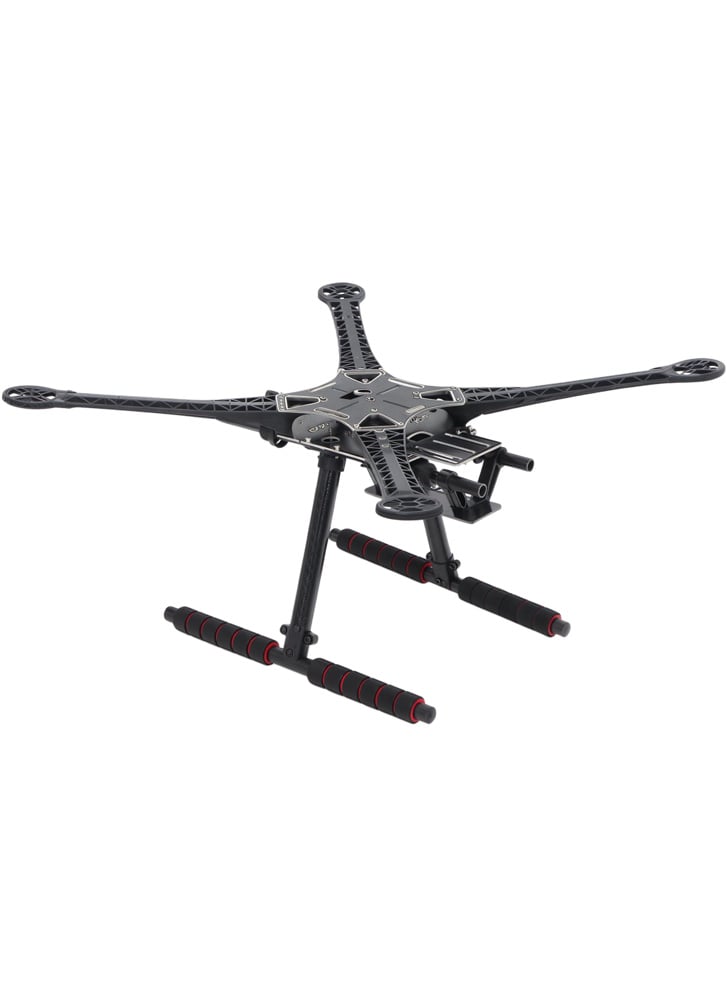

Holybro S500 V2 Quadcopter Frame Kit

£42.00

The Holybro S500 V2 Kit is affordable, lightweight, simple, easy to assemble, and requires no soldering. This is a complete kit that includes almost everything you need to fly. All you will need is a battery and an RC system (optional). It is perfectly compatible with various Holybro Flight Controllers such as the Pixhawk 6C, Pix32 v6, etc.

This S500 frame is composed of a mixture of materials. The arms are made of high strength, ultra-durable Polyamide-Nylon composite material reinforced with carbon fibre rod through the centre. The landing gear consists of 16mm & 10mm diameter carbon fiber tubes connected via plastic tee connectors that have been thickened and strengthened compared to the previous version.

This is an excellent, strong, and lightweight quadcopter frame with landing gear and 1.5mm top and bottom plates. The bottom plate also has a power distribution board (PDB) build in for neat and easy wiring. It also has an adjustable battery mount to achieve the perfect weight distribution. The bottom frame is ready to take a whole host of camera mounts and gimbals, making it perfect for various applications.

Assembly of this frame is super simple due to the pre-threaded sleeves for all the frame bolts, so lock nuts are not required. It utilises one size bolts for the entire build, which means you only need one size hex for the assembly.

S500 V2 ARF Kit Contents:

ARM adopts high strength plastics

Motors – 2216 KV920（ V2 Update）

BLHeli S ESC 20A

Built-in PDB (Cont: 60A, Burst: 100A)

Propeller 1045（ V2 Update）

Battery Straps

Dimensions:383*385*240mm

Wheelbase:480mm

Weight:782g

Recommendation Combination (Not Included):

Flight Controller – Pixhawk 6C , Pixhawk 6X , Pixhawk 4 , Durandal ,

Power Module – PM02D , PM03D Power Module , PM02 V3 ,

Battery Recommendation: 4S 3000-5000mAh 20C+ with XT60 Lipo Battery (Not Included) Payload: 1500g (without Battery, 70% Throttle) Flight time: ~18 minutes hover with no additional payload. Tested with a 5000mAh Battery

The S500 V2 Quadcopter is available as either the frame kit on its own or as the ARTF set which includes the S500 V2 Frame Kit with motors, ESCs, and propellers – please select as required.
