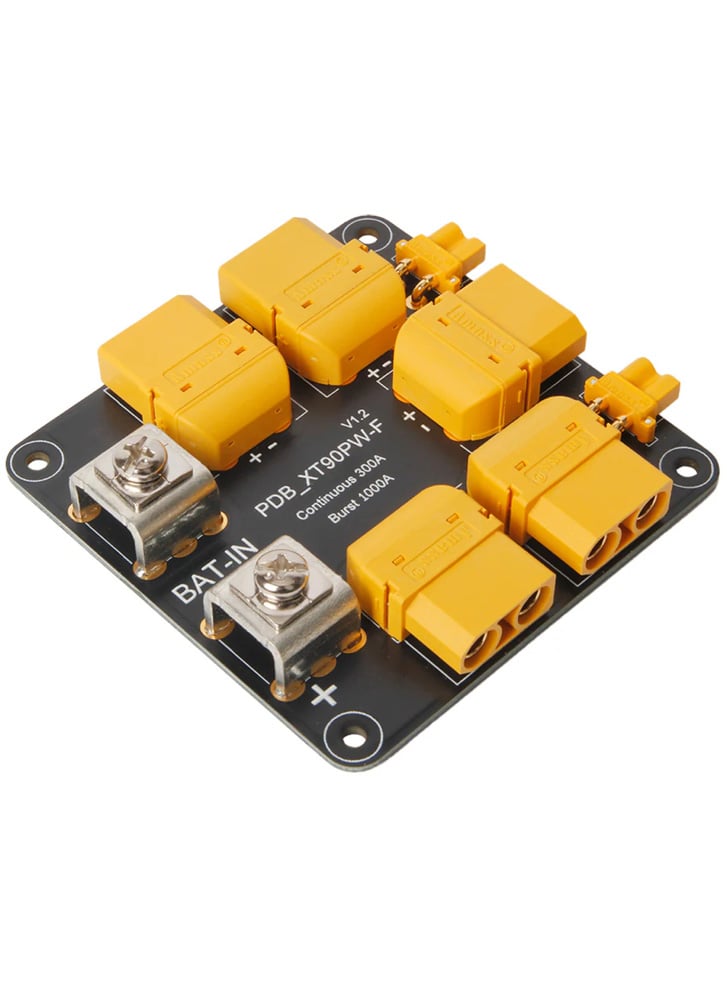

Holybro Power Distribution Board (PDB) 300A Side Entry / Top Entry

£32.90

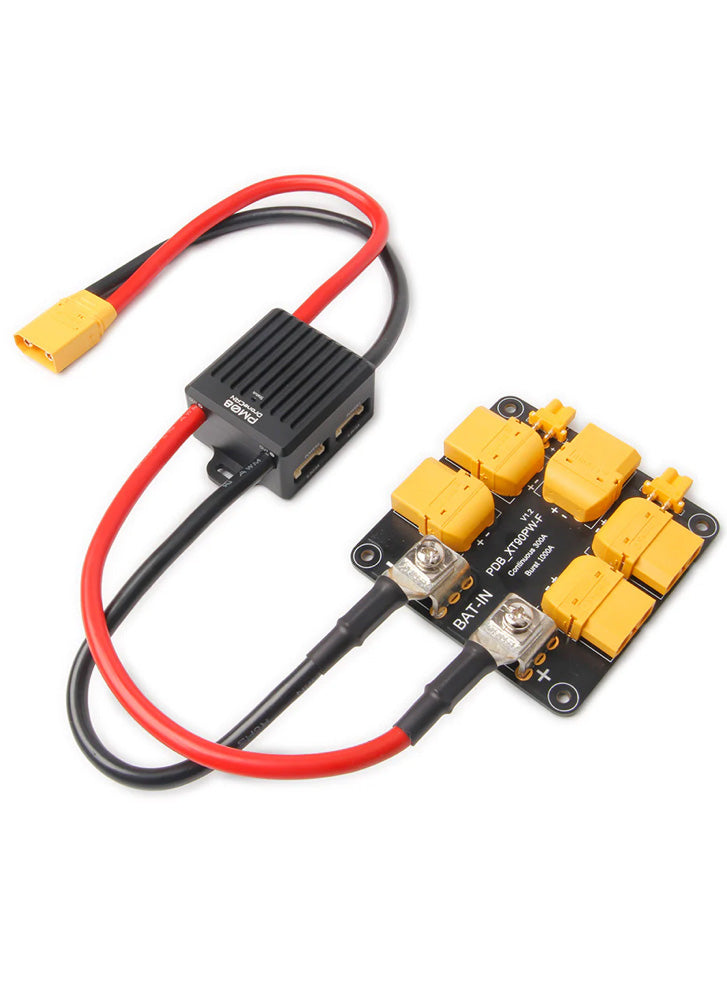

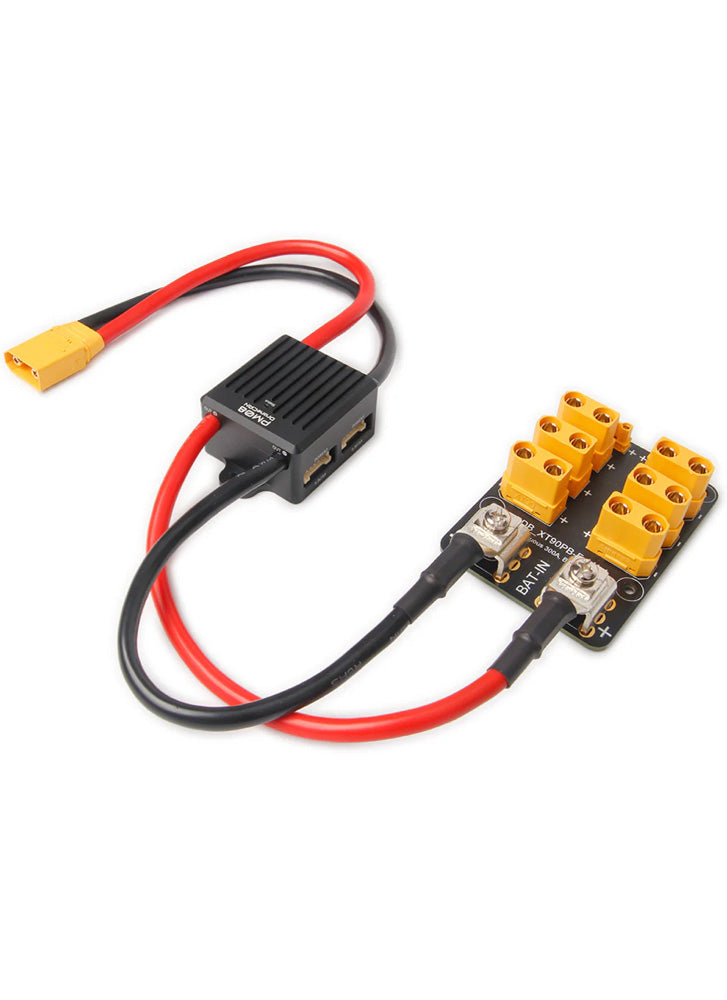

This Power Distribution Board (PDB) 300A is designed to handle high-current applications, making it ideal for demanding power setups. It is compatible with PM08 series power modules and supports various high-current, multi-output configurations. The board utilises 10 oz copper, ensuring superior thermal management and conductivity under heavy current loads.

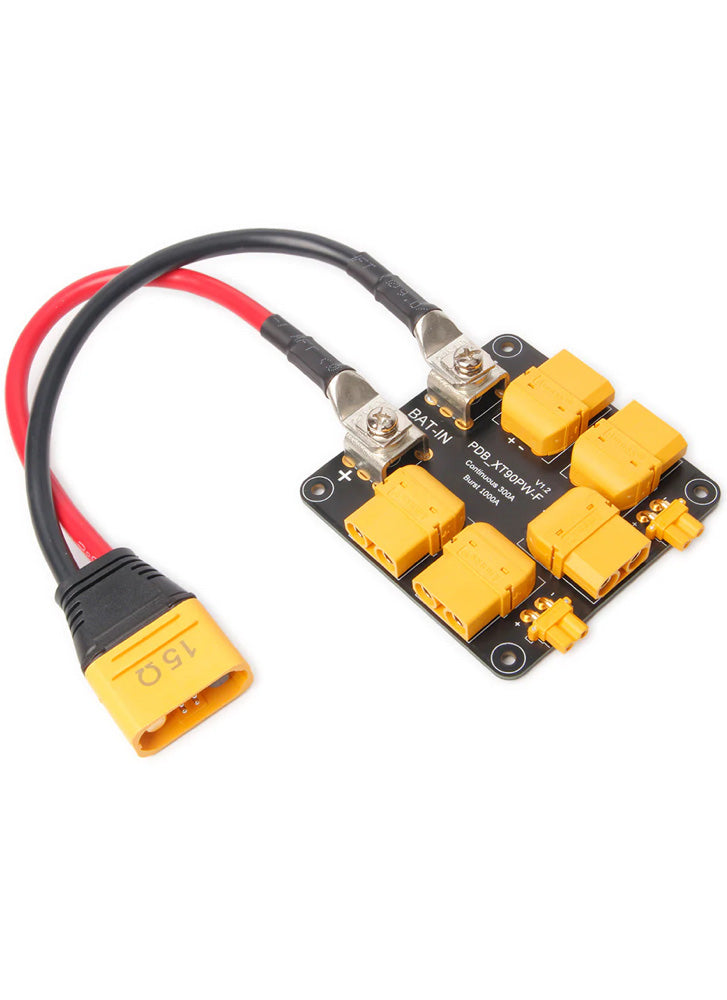

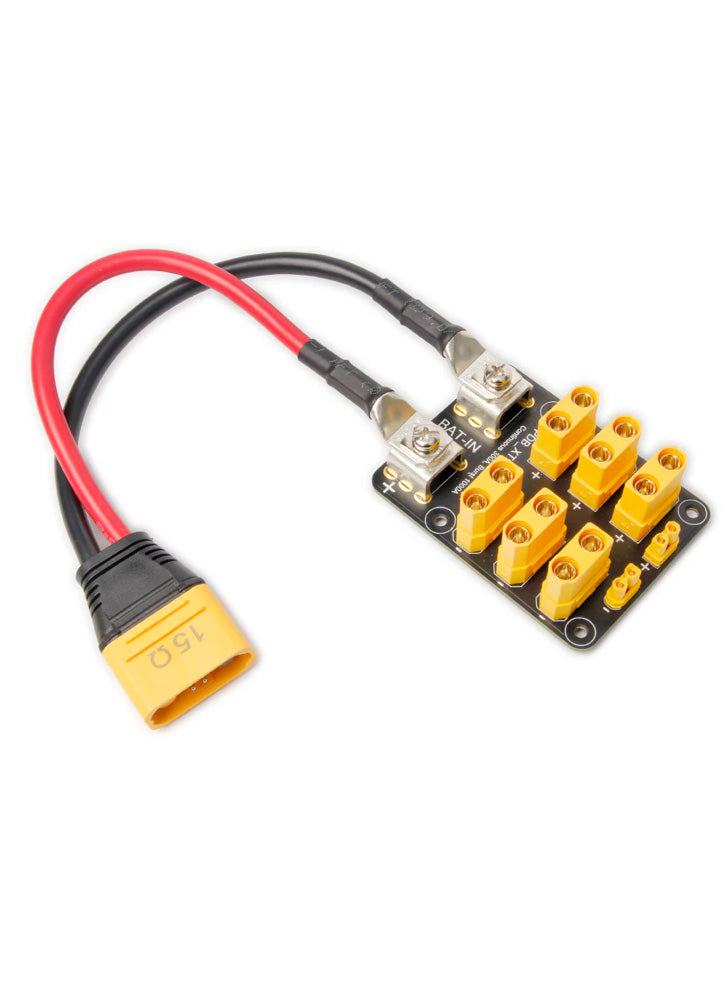

Two connector configurations are available, You choose the orientation that best suits your project needs. Please note, connection wires are not included, available here .

Features

• Pre-soldered with XT90 & XT30
• Continuous Current: 300A
• Burst Current: 1000A
• 10 Oz Copper PCB Design
• M3 Mounting holes

Download:

3D CAD file

Specifications

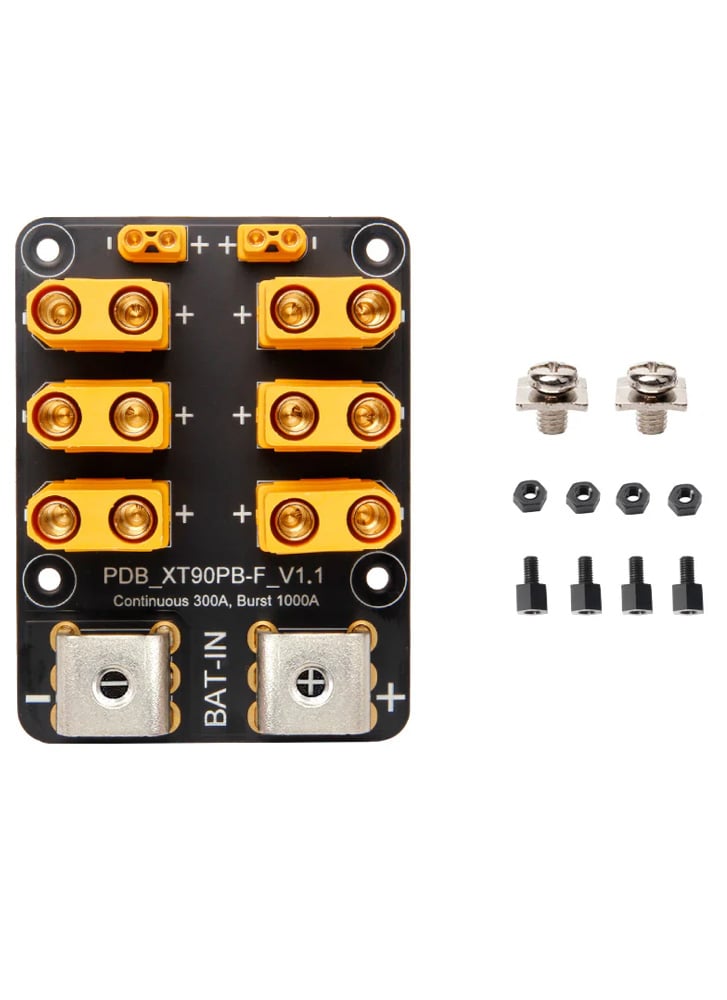

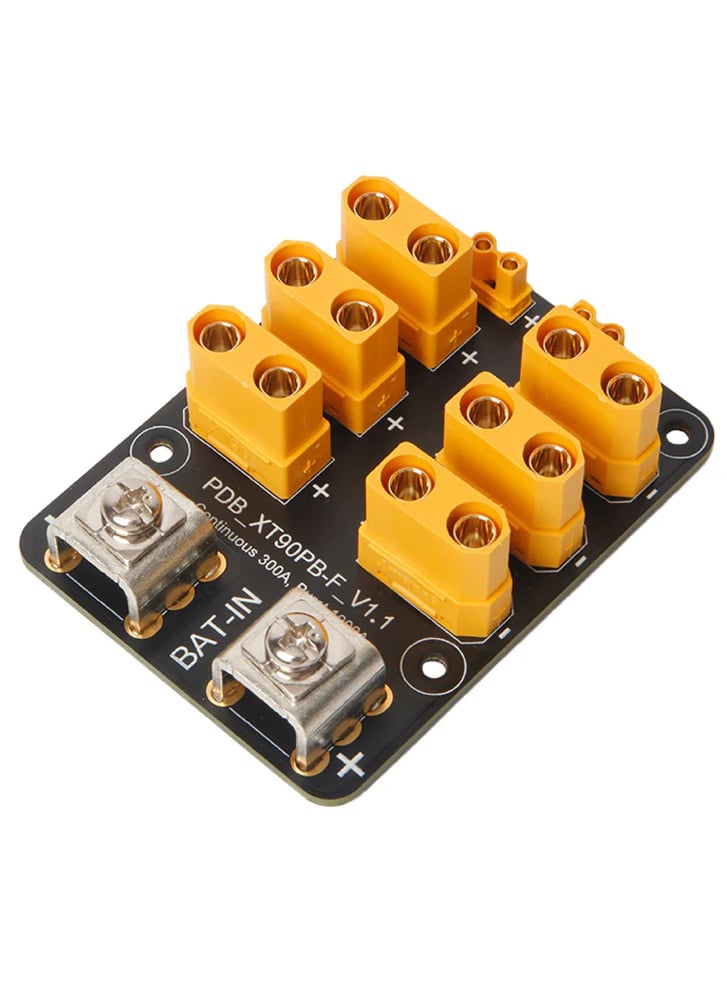

• Pre-soldered with 6 upward-facing XT90 2 upward-facing XT30 connectors. High current screw terminals
• 6 upward-facing XT90
• 2 upward-facing XT30 connectors.
• High current screw terminals

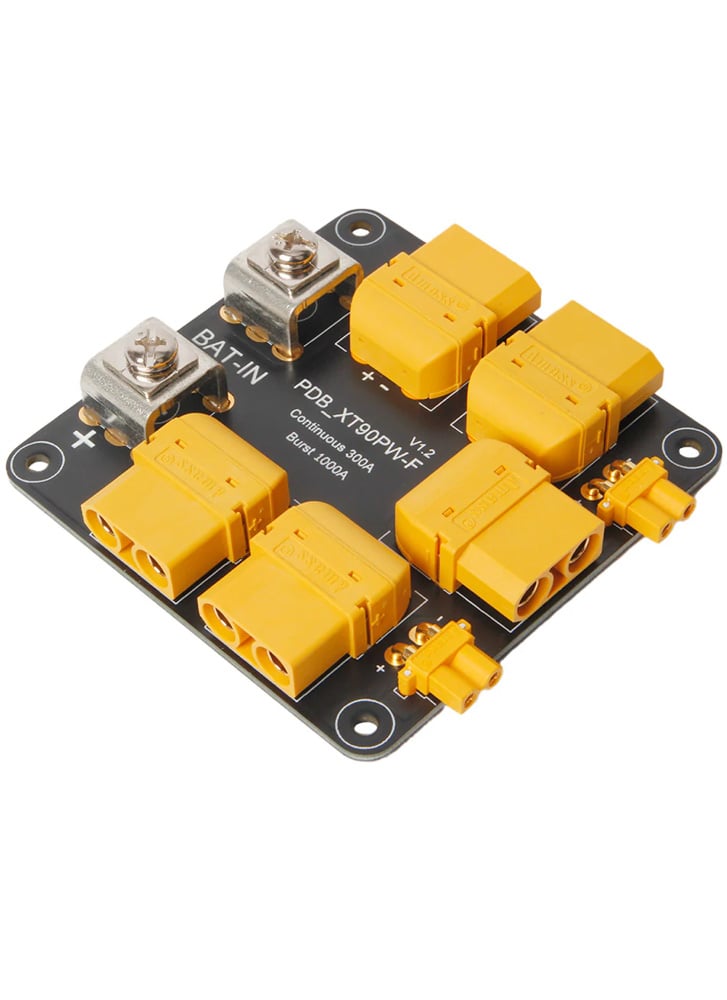

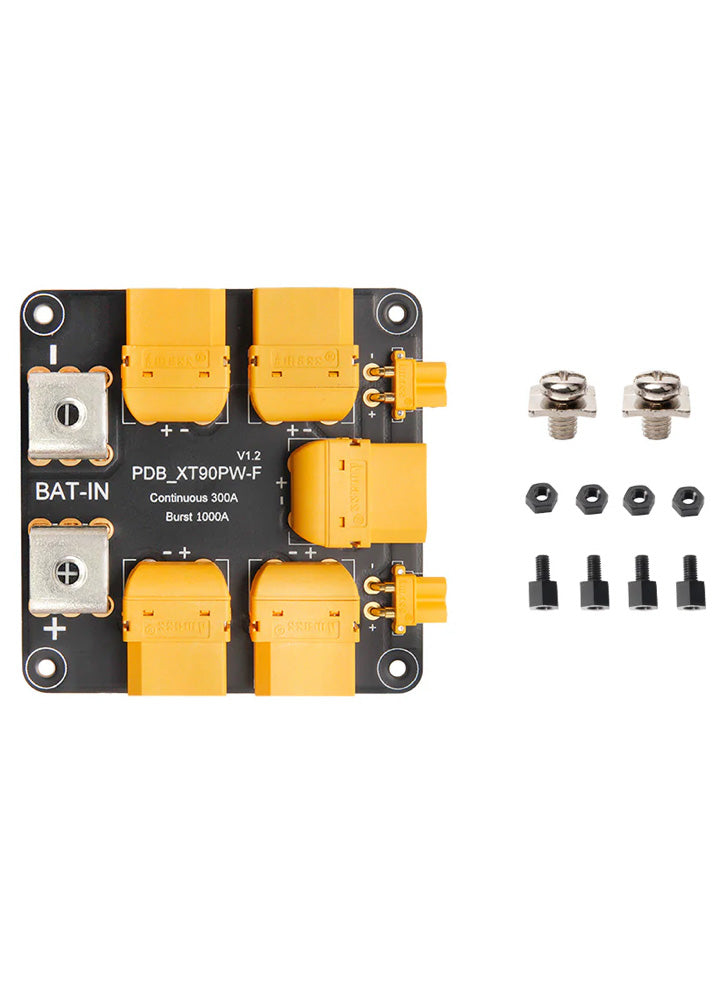

• Pre-soldered with 5 side-facing XT90 2 side-facing XT30 connectors. High current screw terminal
• 5 side-facing XT90
• 2 side-facing XT30 connectors.
• High current screw terminal
