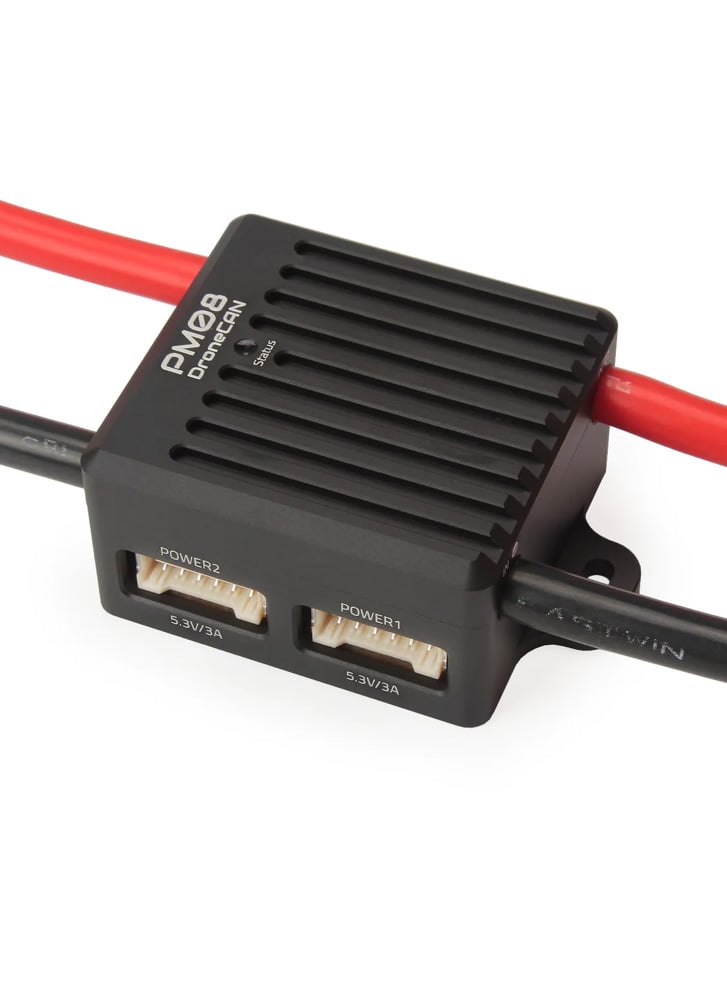

Holybro PM08D-CAN Power Module 14S 200A
£84.90
This PM08D-CAN Power Module supply provides regulated 5.3V to flight controller from the battery while providing current consumption and battery voltage measurements to the Flight controller. This power module connects to compatible controllers via DroneCan Communication Protocol.
This Power Module has two 5.3V power output port with independent circuits, BEC IC and circuitry that can provide redundant power to the flight controller.
This power module is designed for vehicle with high power requirements. It comes housed in a aluminum heat sink case, protecting the module from external elements and actively dissipates heat generated during operation to ensures durability and optimal performance.
What is DroneCan: DroneCAN is the primary CAN protocol used by the ArduPilot and PX4 projects for communication with CAN peripherals. It is an open protocol with open communication, specification and multiple open implementations. More info here .
Features

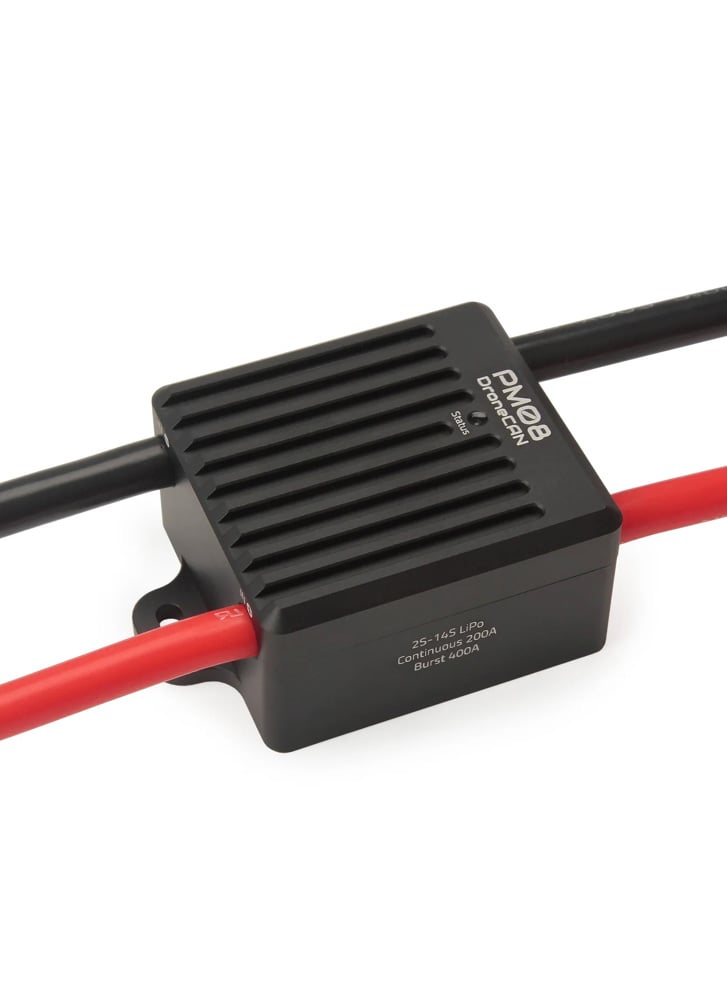

- Supports 2-14S & 200A Cont, 400A Burst
- DroneCAN Communication Protocol
- Small & Compact Design
- Two 5V Output with Independent BEC IC and Circuitry

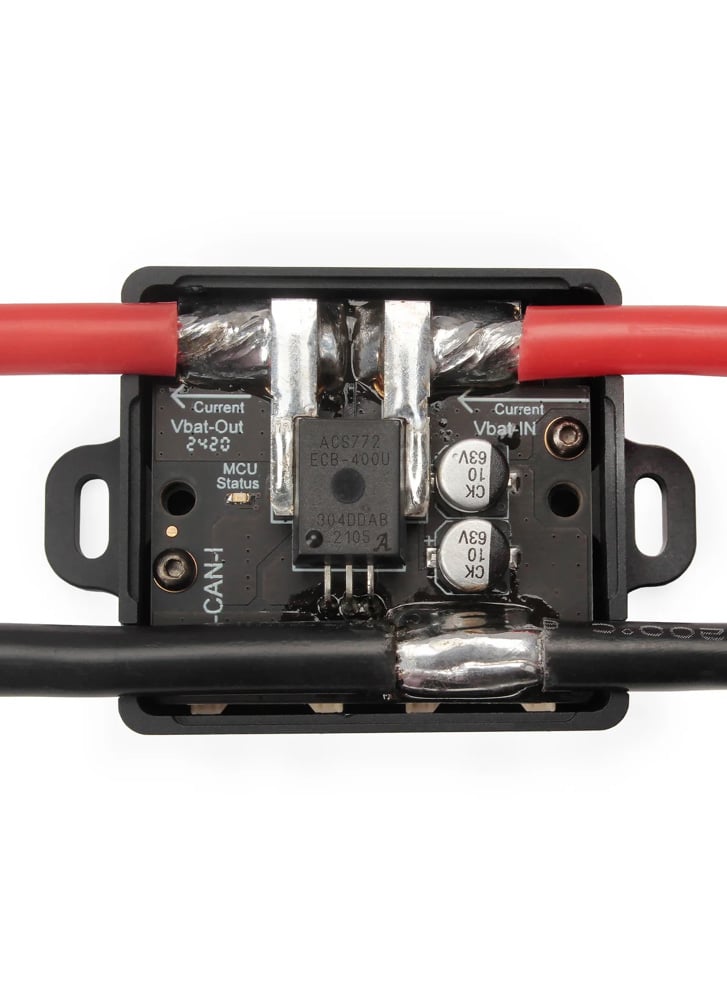

- Separated Sensor and BEC Board to Minimize Electrical Noise Interference
- Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
- High Accuracy Temperature Sensor for Temperature Monitor

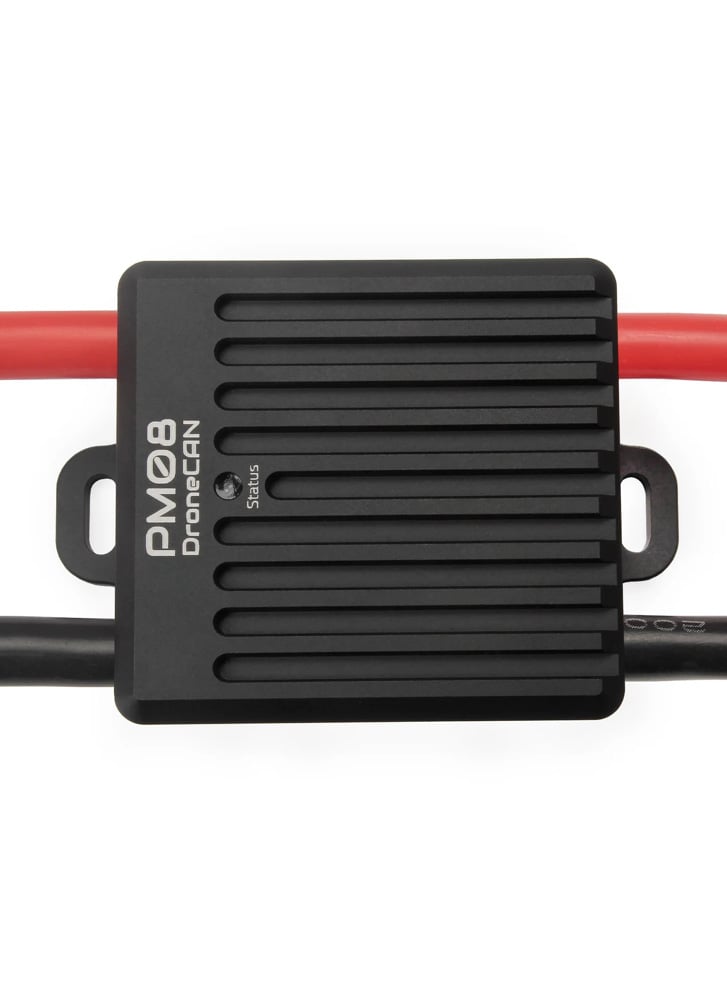

- High-Efficiency Aluminum Heat Dissipation Shell
- Pin out
- Status LED
- Flashing quickly continuously: MCU is in the bootloader stage, waiting for firmware to be flash
- Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
- Flashing slowly (one-second intervals): CAN is successfully connected
- Interface Type
- Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
- Battery IN/OUT Option ( select version as required ): XT90 Connectors Tinned Wires XT90 & Ring Terminals
- XT90 Connectors
- Tinned Wires
- XT90 & Ring Terminals
- Reference Links
- PX4 & Autopilot Setup Instruction
- PM08CAN 3D CAD File Dow nload
- P ower Module Dimension
Specifications
- Processor：STM32F405RG 168MHz 1024KB Flash 196KB RAM
- Voltage input: 7~60.9V (2S~14S)
- Continuous current:200A
- Burst current 400A @ 25℃ 1 sec 1000A @ 25℃ < 1 sec
- 400A @ 25℃ 1 sec
- 1000A @ 25℃ < 1 sec
- Max current sensing: 376A
- Voltage accuracy: ±0.1V
- Current accuracy: ±5%
- Temperature accuracy:±1℃
- Power port output: 5.3V/3A each port
- Protocol: DroneCAN
- Operating temperature :-25℃~105℃
- Firmware upgrade: Support
- Calibration: Support
- Size: 45mm×41mm×26mm (Not Include Cable)
- Weight: 185g (Include Cable)
