Holybro PM08 Analog Power Module (14S, 200A)

£109.90

This PM08 Power Module supply regulated 5.2V to flight controller from the battery while providing current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable to the autopilot.

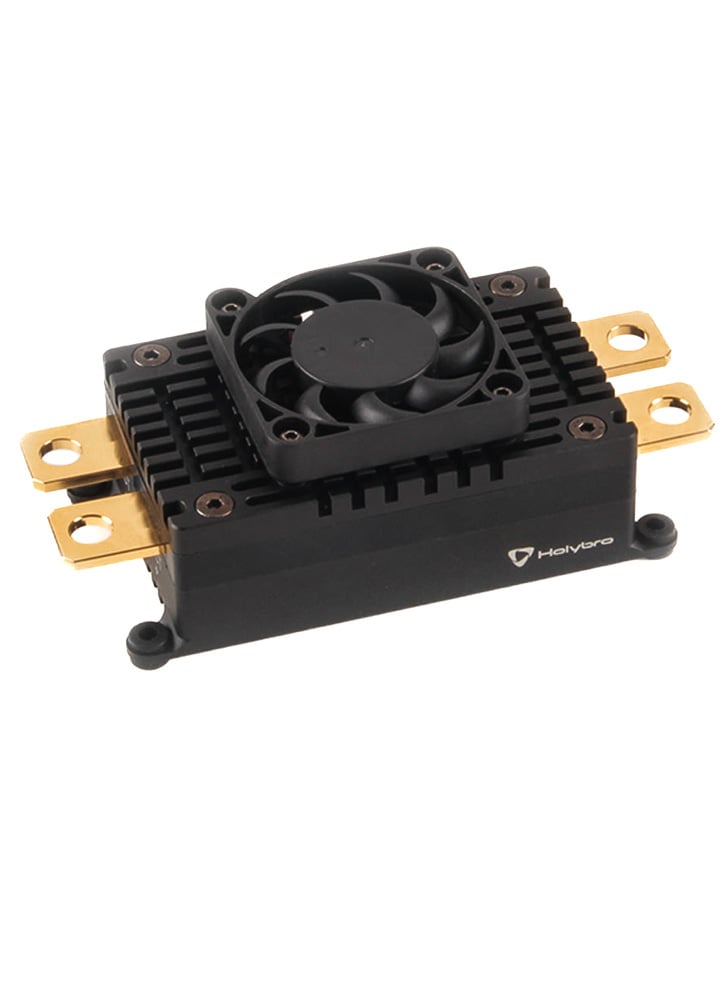

This power module is designed for vehicle with high power requirement. It comes housed in a aluminium heat sink case with fan, protecting the module from external elements and actively dissipates heat generated during operation to ensures durability and optimal performance.

Features

• Support 2S – 14S Battery
• 200A Cont. Current Rating
• Easy to Setup
• Aluminium Case for Heat dissipation

Ports:

Please Note:

This analog power module is not compatible Pixhawk 5X/6X. Please use a digital power module that end with a “D” for the 5X/6X series ( PM02D 120A ).

Wire & connector sold separately

PM08 3D CAD File Download

Wiring sets for PM08 HERE

Specifications

• Input Voltage: 2S-14S
• PCB Cont. Current Rating: 200A
• PCB Burst Current Rating: 1000A (<1 Sec @25C)
• Max Current Sensing: 237.6A
• Output: DC 5.1-5.3V & 3A Max
• Voltage Divider: 18.182
• Amperes per Volt: 72
• Dimensions: 101x45x26mm
• Mounting hole: 79mmx38.1mm

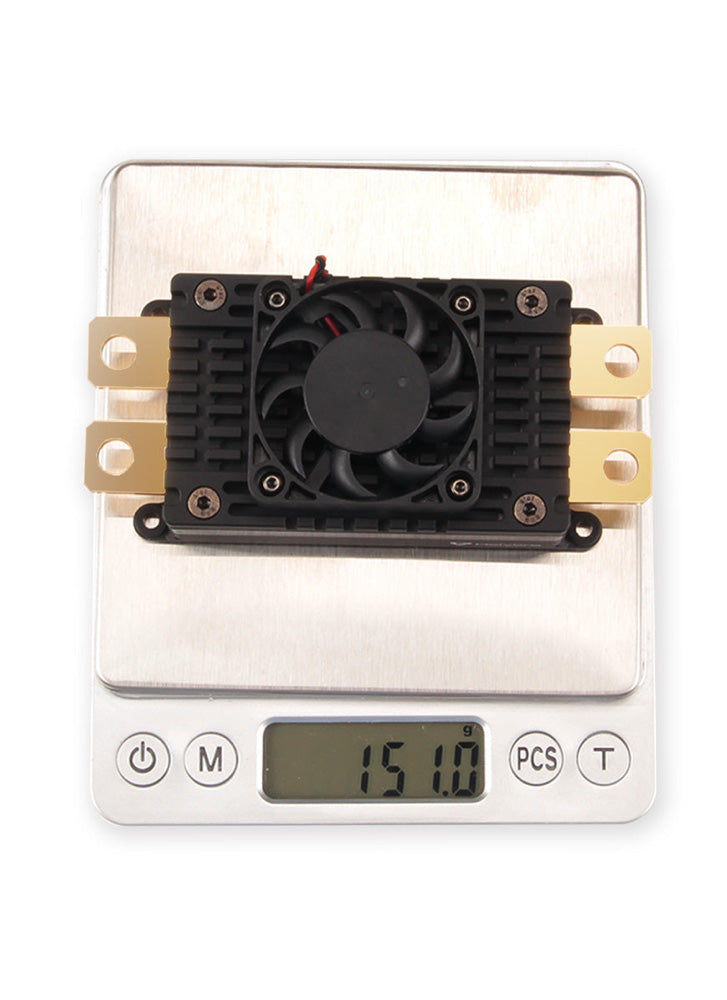

• Weight: 151g

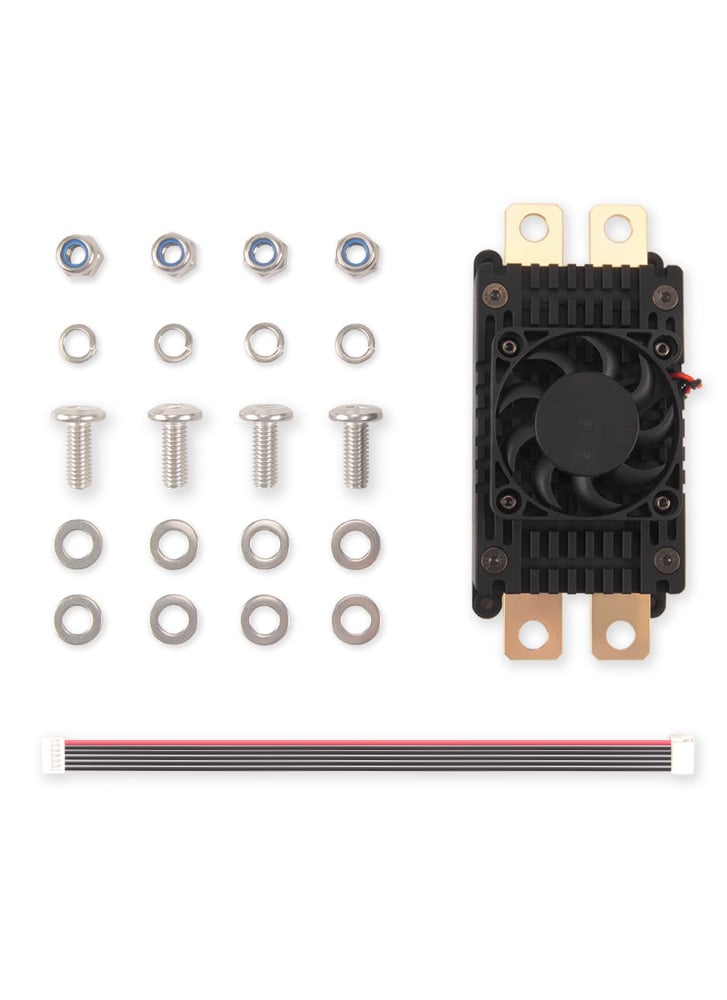

In the box

• 1x PM08 Power Module
• 1x 40x40mm Fan
• 1x JST GH 6 Position Connector 15 cm
• 4x Sets of Screws, Washers, and Nuts
