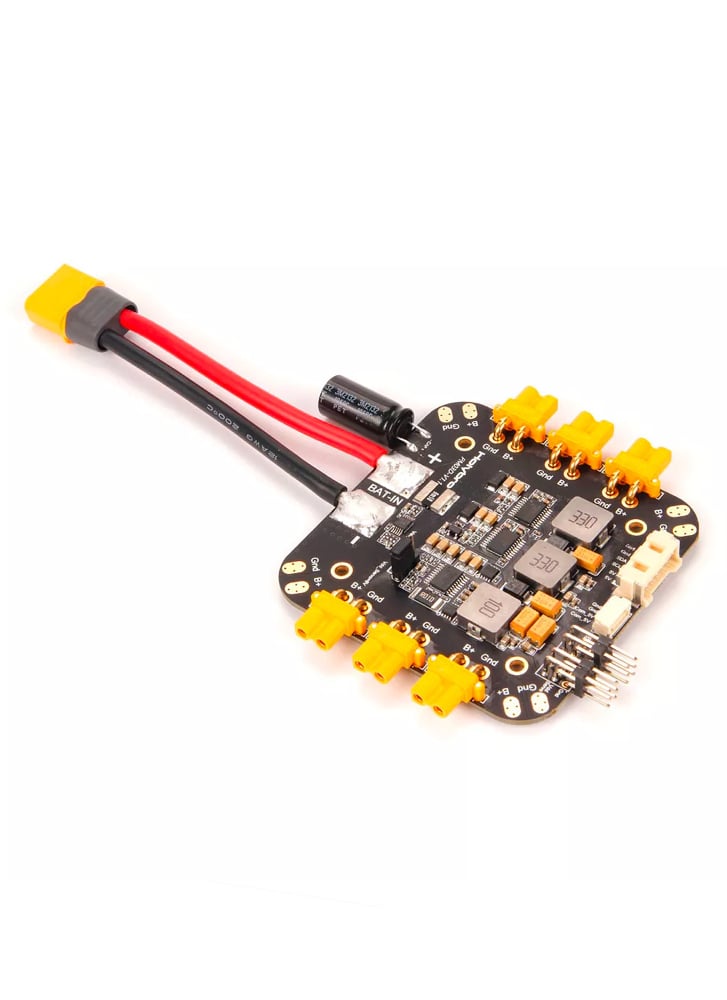

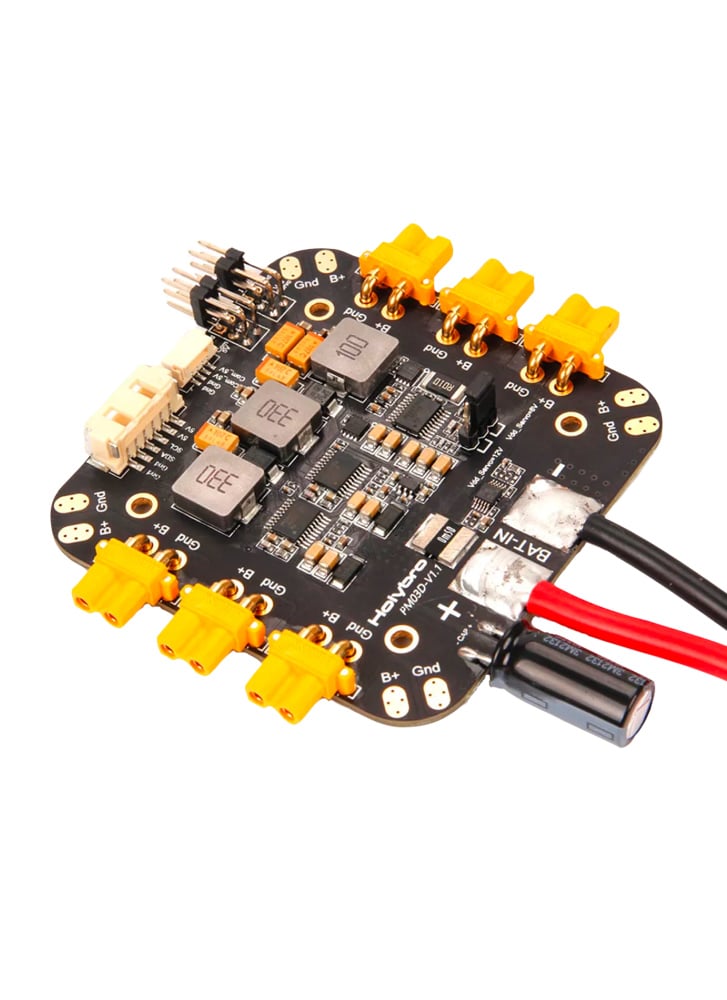

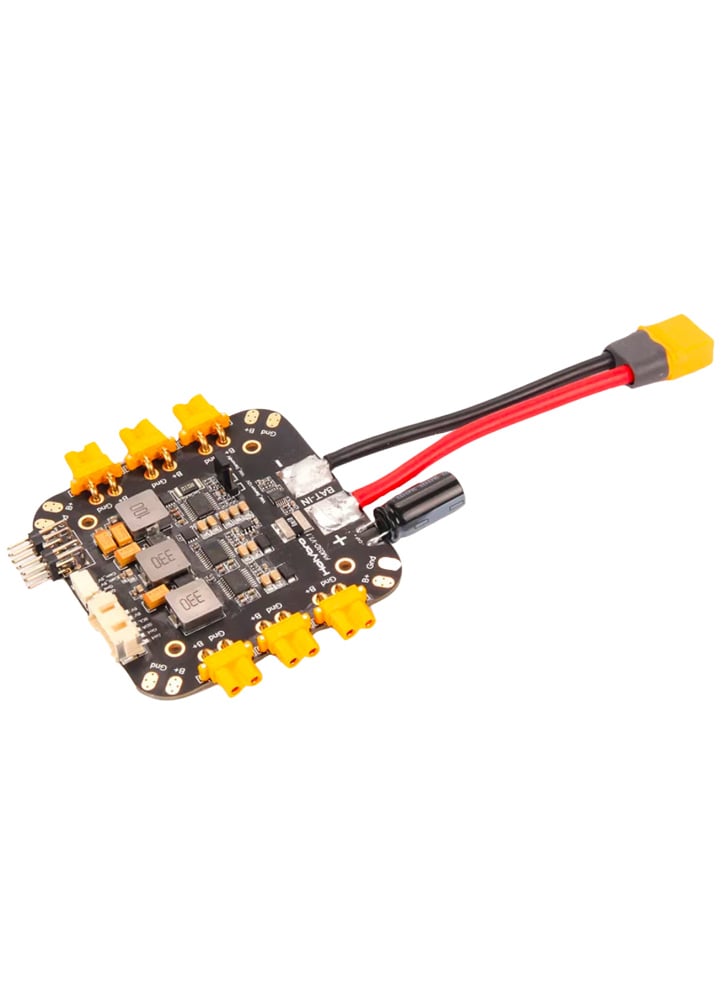

Holybro PM03D Power Module / Power Distribution Board
£49.90
PM03D provides a regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible with flight controllers that use I2C power monitor such as the Pixhawk 5X and up. It is designed for multi-rotors like the X500 V2 . It has both XT30 & XT60 connectors pre-installed for motor-ESCs and battery connections, as well as two 5V BECs and a selectable 8V/12V output to suit different kinds of peripheral devices.
Please Note: This PM is not compatible with flight controller that uses analog PM such as the Pixhawk4, Pixhawk4 Mini, pix32 v5, or Durandal flight controllers.
Features
- Plug & play, no additional setup required for QGroundcontrol & Mission Planner
- XT-30 connectors and solder pads for easy motor ESC connection
- Onboard voltage regulators: two 5.2V & one selectable 8V/12V
- 5V/A ports for powering companion computer or peripheral device
- Selectable 8V or 12V triple row pin header for powering peripheral device
Specifications
- Maximum input voltage: 6S battery
- Rated current: 60A
- Max current: 120A (<60 Sec)
- Max current sensing: 164A
- Connections XT-60 for battery XT-30 for motor & peripheral device (battery voltage Solder pads in each corner (battery voltage) CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC) JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header) 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin) 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
- XT-60 for battery
- XT-30 for motor & peripheral device (battery voltage
- Solder pads in each corner (battery voltage)
- CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
- JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
- Dimension: 84*78*12mm (excluding wires)
- Mounting: 45*45mm
- Weight: 59g
- 4pin JST GH to USB Type C
- 4pin JST GH to barrel plug (2.1*5.5mm)
- 4pin JST GH to barrel plug (2.5*5.5mm)
- 4pin Pin Dupont Cable (2pc)
- Nylon standoffs & nuts

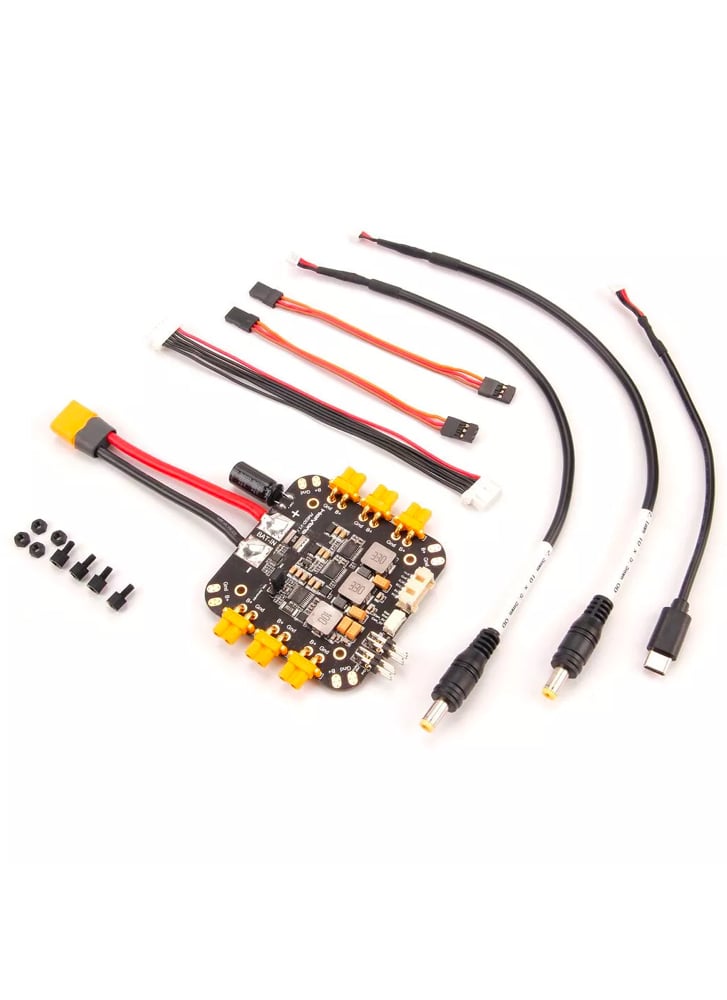

In the box
- 2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
- 2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
- 1x PM06 board
- 1x 80mm XT60 connector wire (pre-soldered)
- 1x Electrolytic capacitor: 220uF 63V (pre-soldered)
- 1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)
