Holybro Mini UBEC 5A (3-14S)
£23.99

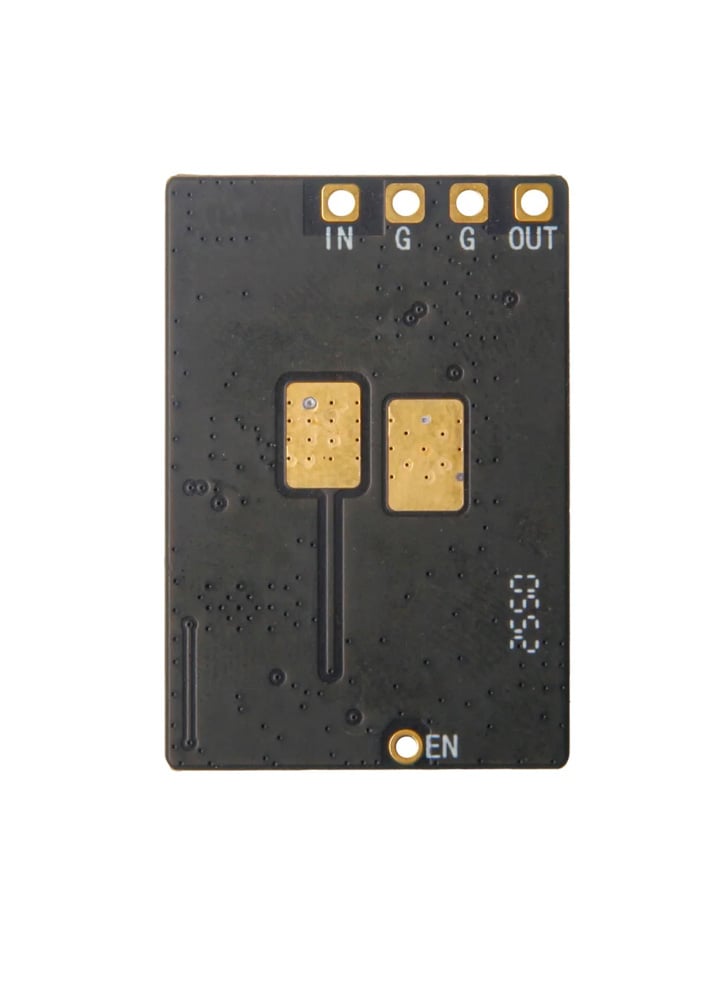

UBEC 5A (3–14S) is a synchronous step-down regulator for high or widely varying input supplies. It takes DC from a 3-14S LiPo battery and brings the voltage down to a level receivers and other electronics can use. Bridging the solder pads on the PCB sets the output voltage.
Features
- High efficiency DC-DC voltage regulator chip for transfer efficiency of over 90%
- Wide 8V to 60V Operating Input Range with TVS protection
- Adjustable output voltage (5.2V/8V/12V) applicable for devices with different voltages
- Supports continuous output current of up to 5.2V/5A, 8V/4A, 12V/2.8A,
- Burst current: 10A
- Dropout voltage: 2V (Input>=14V is required for stable 12V outputs
- Multiple protections, including over-current (output end), short circuit, overheat, and low-voltage cutoff
Specifications
- Input voltage: 3~14S
- Output voltage: 5.2V/8.0V/12V (Adjustable by bridging onboard solder pads)
- Output Current
- Continuous: 5A@5.2V, 4A@8V, 2.8A@12V
- Burst: 10A
- Size: 35x24x6.5mm

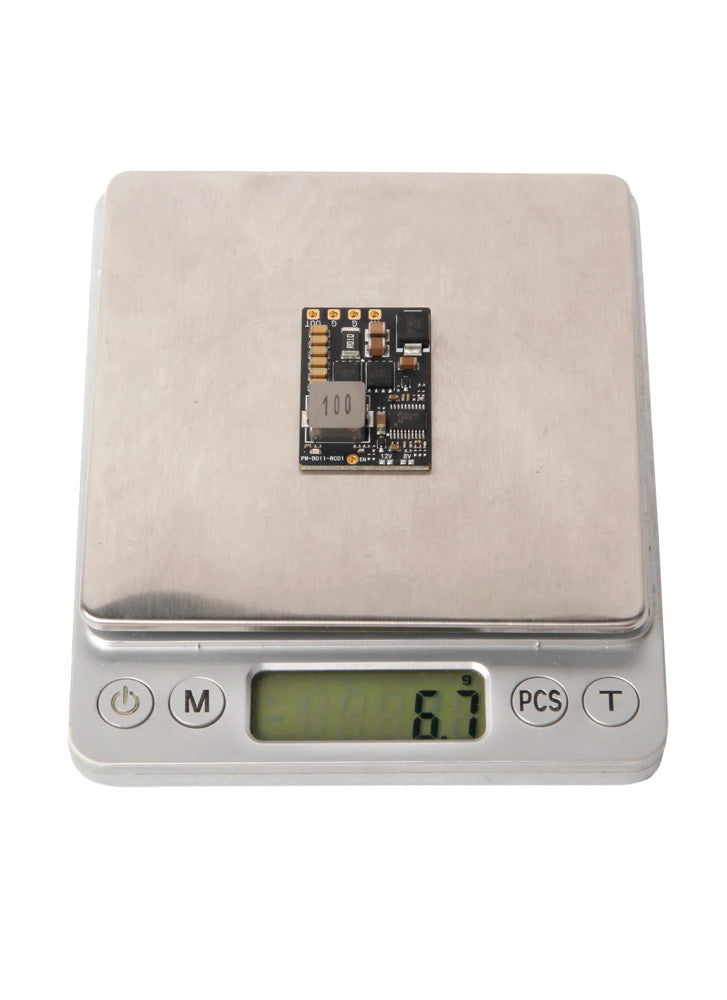

- Weight: 6.7g
