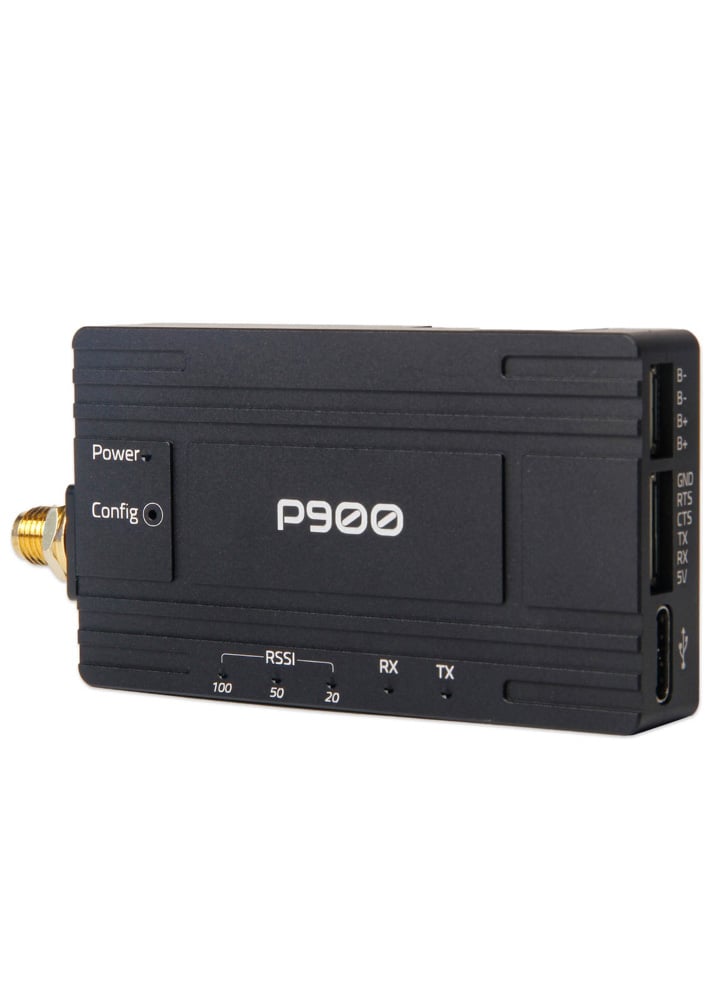

Holybro Microhard Telemetry Radio Set

£229.00

Holybro Microhard Telemetry Radio integrates microhard Pico Series RF module which is capable of delivering high-performance wireless serial communications in robust topologies, such as Point to Point, Point to Multipoint and secure Mesh (Mesh only available on P900).

It uses frequency hopping spread spectrum (FHSS) technology, providing reliable wireless asynchronous data transfer between most equipment types which employ a serial interface. Fixed frequency is available on the P840 version. The radio is configured using AT commands through the Data port or using PicoConfig application through the Diagnostic Port.

P900 Radio operate within the 902-928 MHz ISM frequency band while the P840 operate within 840-845Mhz, and P400 operate within 410-480MHz. You can select your radio based on your country’s available frequency band.

FCC ID: NS913P900

Features

USB Type-C port, integrated USB to UART converter
6-position JST-GH connector, can be directly connected to the TELEM port on various flight controller
High voltage BEC onboard, Support DC7~35V voltage supply
UART transmission LED indicator
Three-stage RSSI LED indicator
Transmission within a public, license-exempt band of the radio spectrum
Transparent, low latency link rates up to 276 kbps (P900) and 345 kbps (P860 & P400)
Supports a robust true Mesh operation with auto-routing (P900 Only)
32 bits of CRC, selectable retransmission and forward error correction
Separate diagnostics port, transparent remote diagnostics and online network control

Specification

Other Technical details and downloads can be found on the Holybro Documentation page.

Reference Links

Ports & Button

Status LED Meaning

Default Setting

Pinout

Dimension

Enabling RTS / CTS Flow Control

Point-to-Multipoint Setup

Downloads

In the box

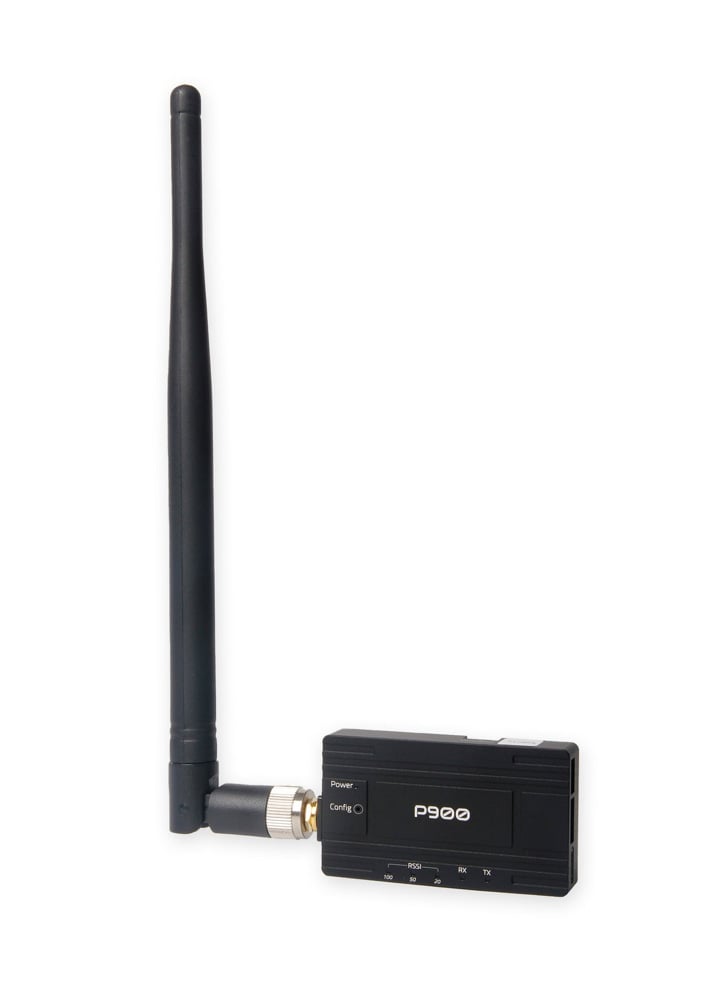

1x Microhard P840/P900/P400 Radio
1x Antenna
1x XT30 Power cable
1x GH 6P to 6P cable
1x Metal Pin

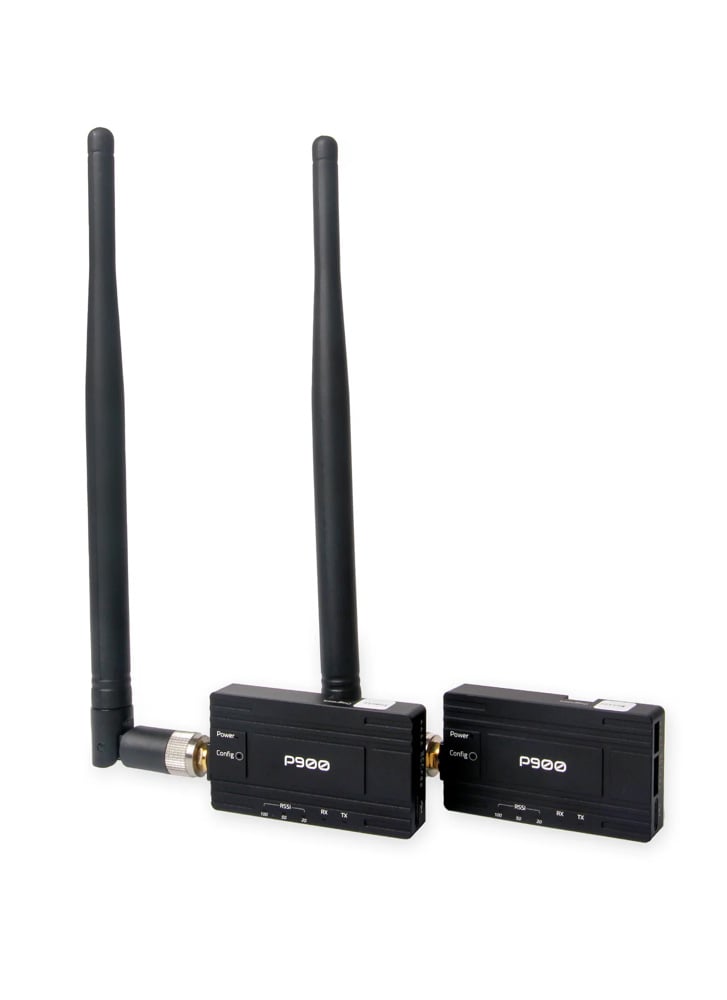

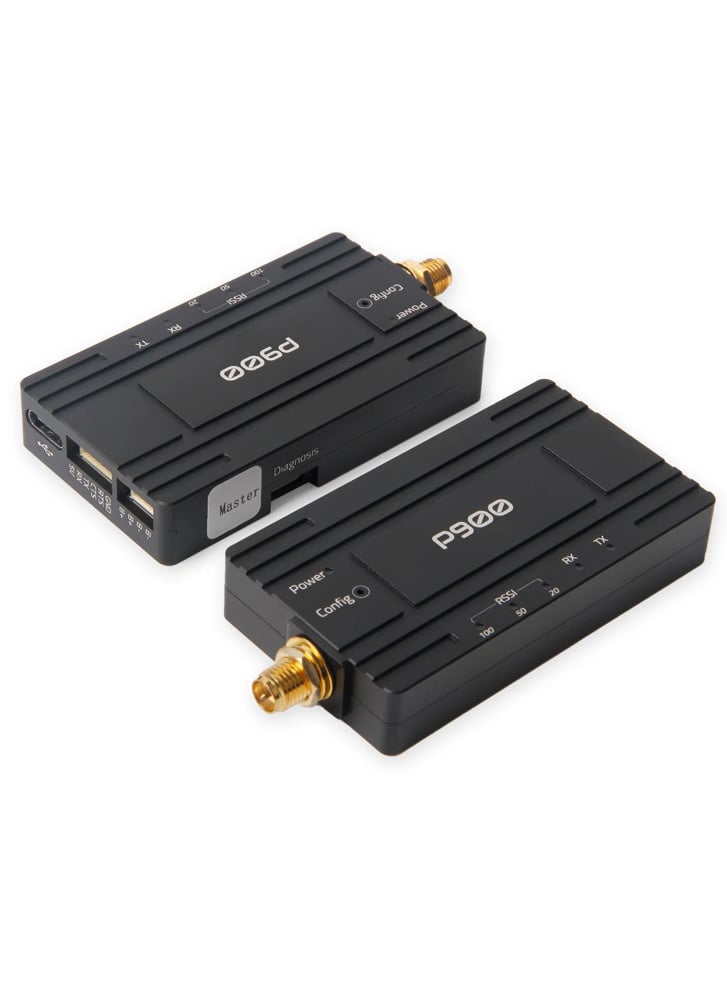

2x Microhard P840/P900/P400 Radio
2x Antenna
2x XT30 Power cable
1x GH 6P to 6P cable
1x Metal Pin
