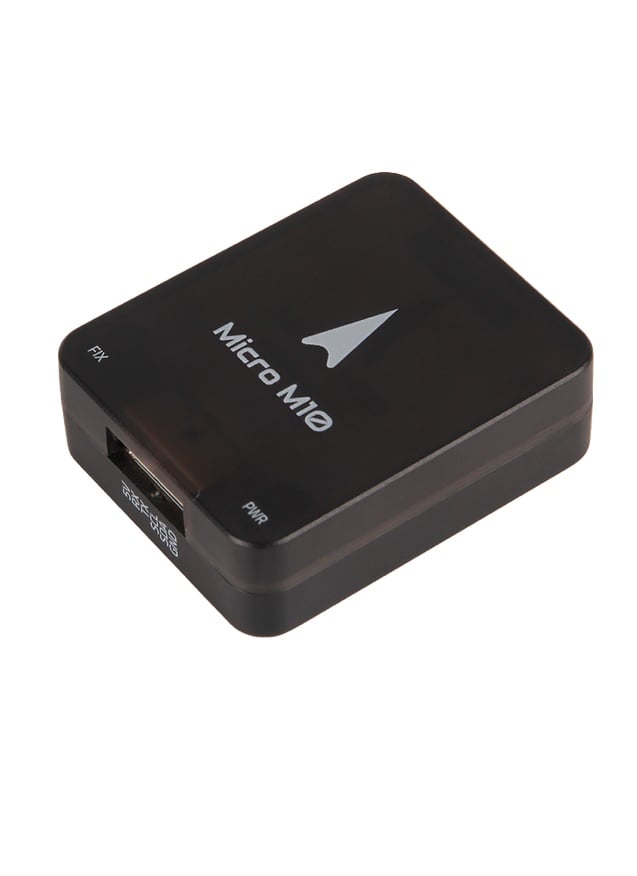

Holybro Micro M10 GPS & IST8310 Compass
£29.90
These Micro GPS uses multi-constellation GNSS powered by u-blox M10, a concurrent GNSS receiver which can receive and track multiple GNSS systems. Owing to the multi-band RF front-end architecture all four major GNSS constellations, GPS,Galileo, GLONASS and BeiDou can be received concurrently. It also comes with the IST8310 compass.
The high-gain 25 x 25 mm2 patch antenna provides excellent performance and the omnidirectional antenna radiation pattern increases flexibility for device installation. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.
Firmware Support for M10 GPS: PX4 1.14, ArduPilot 4.3, INAV 5.0.0, Betaflight 4.3.0 or newer is required.
We sell this GPS in two versions, cased and uncased – please select as required.
Features
- Newest Ublox 10th Gen GNSS
- Fast & Accurate Positioning
- IST8310 Compass
- Small Form Factor
Specifications
- GNSS Receiver: Ublox M10 Receiver
- Number of Concurrent GNSS: Up to 4 GNSS BeiDou Galileo GLONASS GPS QZSS
- BeiDou
- Galileo
- GLONASS
- GPS
- QZSS
- Compass: IST8310
- Frequency Band GPS L1 Galileo E1 GLONASS L1 BeiDou B1 SBAS L1 QZSS L1
- GPS L1
- Galileo E1
- GLONASS L1
- BeiDou B1
- SBAS L1
- QZSS L1
- Output Protocol: UBX (U-blox) NMEA
- UBX (U-blox)
- NMEA
- Nav. Update Rate: Up to 25 Hz
- GNSS Augmentation System SBAS: WAAS, EGNOS, MSAS QZSS: L1S
- SBAS: WAAS, EGNOS, MSAS
- QZSS: L1S
- Default Baud Rate: 38400
- Input Voltage 4.7-5.2V
- Accuracy: 1.5m
- Speed Accuracy: 0.05 m/s

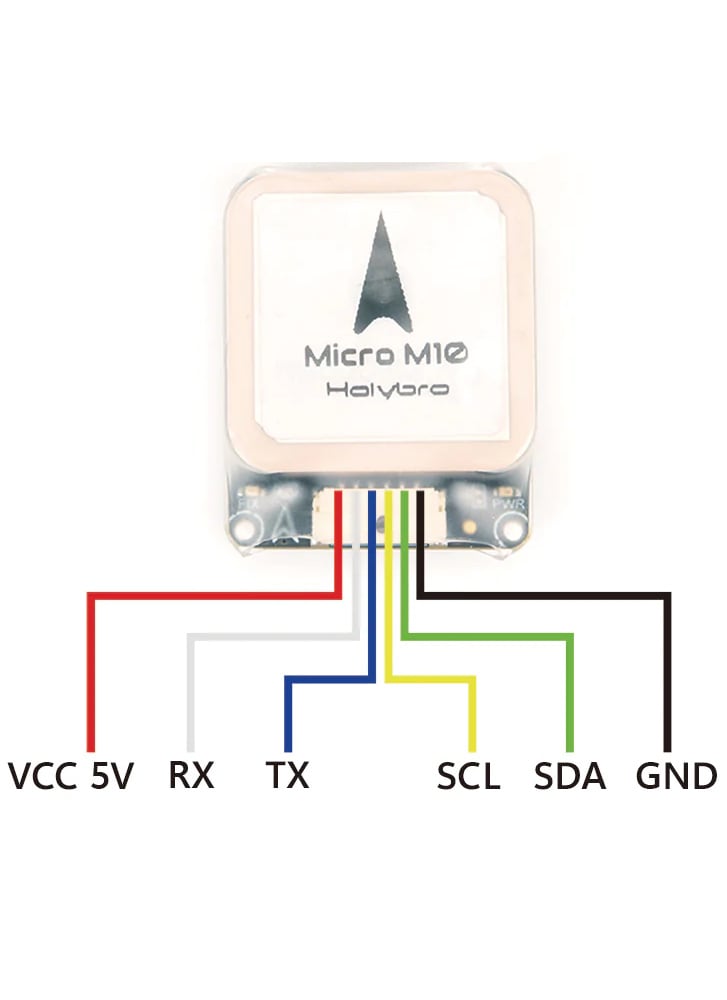

- Port Type: JST-GH-6P
- Antenna: 25 x 25 x 4 mm ceramic patch antenna
- Power consumption: Less than 200mA @ 5V
- Operating Temperature: -40~80C
- Dimension: 32 x 26 x 9mm
- Weight: 14g
- Other Notes LNA MAX2659ELT+ RF Amplifier Rechargeable Farah capacitance Low noise 3.3V regulator
- LNA MAX2659ELT+ RF Amplifier
- Rechargeable Farah capacitance
- Low noise 3.3V regulator
In the box
- 1x Micro GPS module
- 1x JST GH 6 Position Connector 15 cm
- 1x JST-GH 6pin Colored Silicon Cable 15 cm
