Holybro Kakute F722 Flight Controller / Stack with ESC (30×30)
£54.99

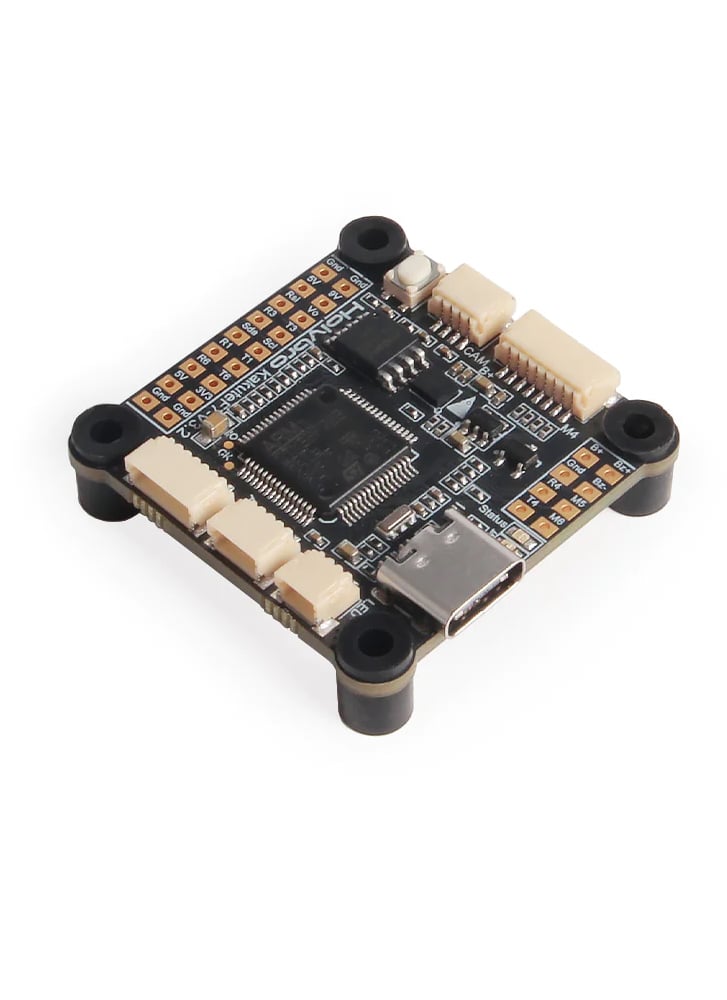

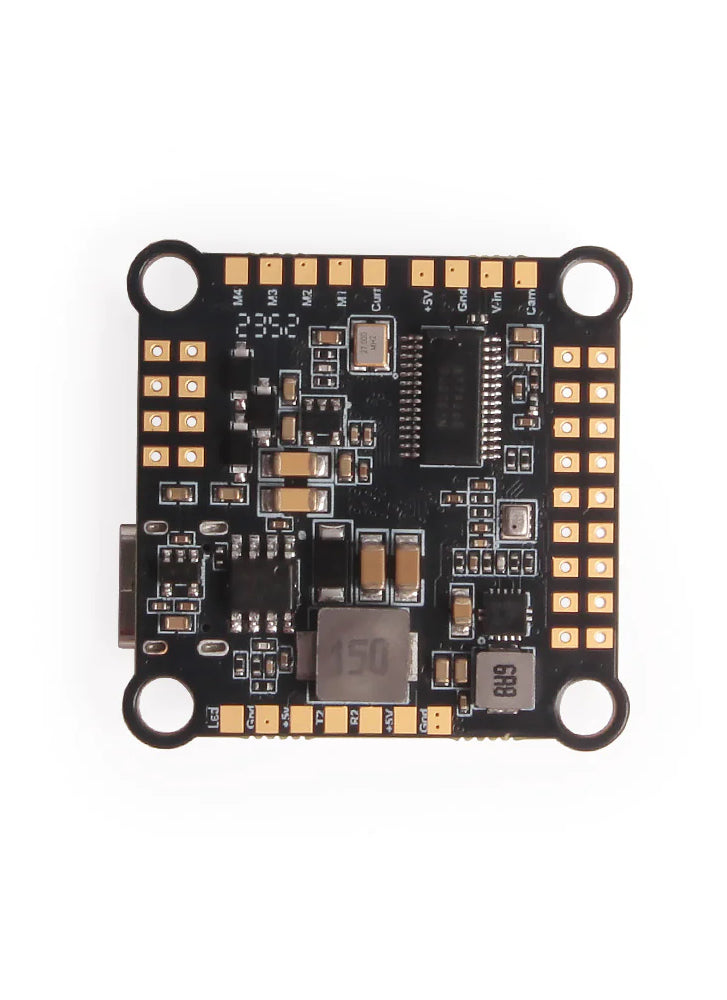

Tekko32 F4 4in1 50A ESCIntroducing the Kakute F722, a low-cost, high quality F7 flight controller for Betaflight and INAV.
This FC has an impressive spec list, including an ICM42688P gyroscope which benefits from an independent low-noise power supply, onboard high precision BMP280 barometer, powerful 5V/2A and 9V/3A BEC with support of 8S input, OSD for analog FPV and a useful 16 Mbytes black box for cataloguing. It is also plug-and-play with the digital FPV O3 Air Unit, and has various ports for quick setup.

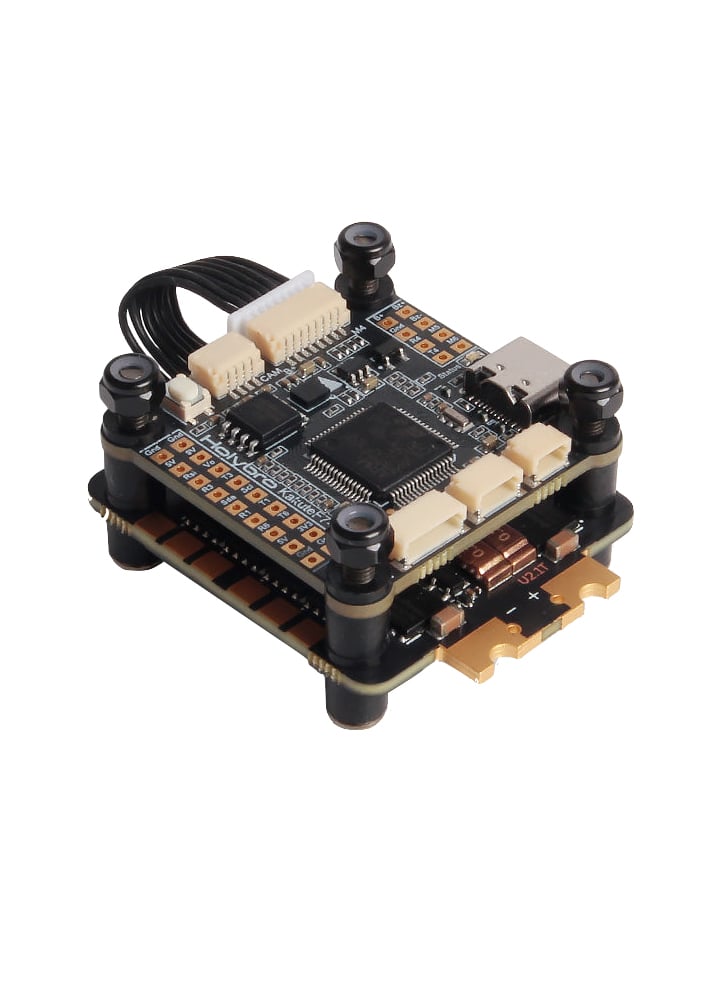

Purchase Options: We sell the FC on its own, or as a flight stack with 4in1 ESC. Either the Tekko32 F4 4in1 50A ESC or Tekko32 F4 Metal 4in1 65A ESC .
Features
- High-performance STM32 F722 MCU with speeds up to 216MHz.
- ICM42688P gyroscope, independent low-noise power supply.

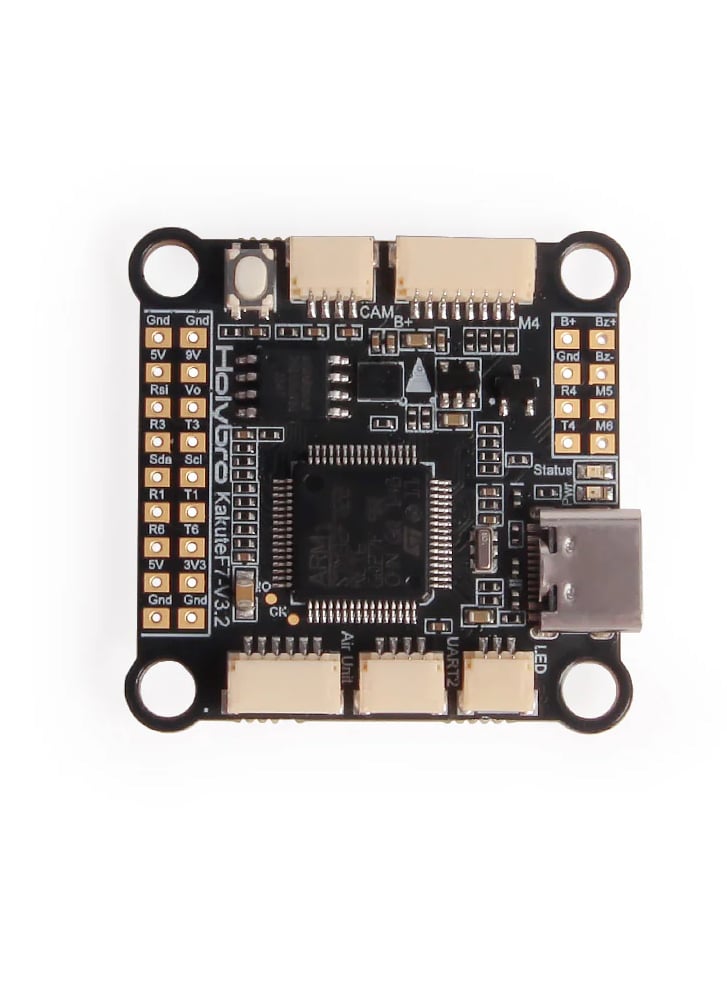

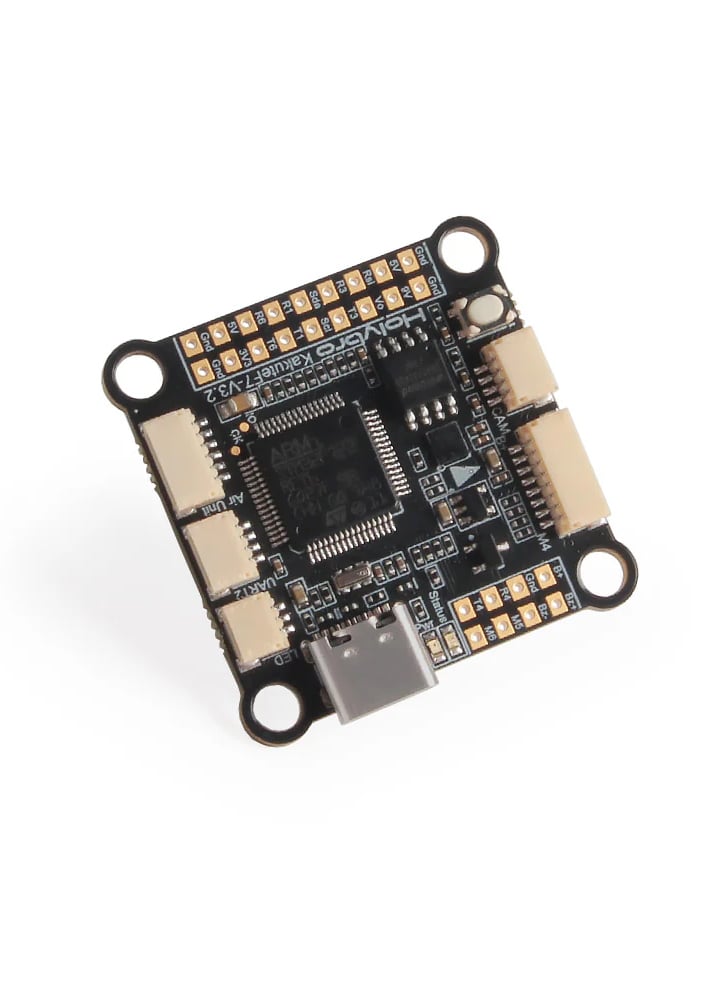

- Various Ports for quick & easy setup: ESC port, Digital VTX port, Analog VTX port, Receiver port, and LED port.
- Built-in analog video OSD, 16 Mbytes black box,
- High power synchronous rectifier BEC, supports up to 8S input and provides stable 9V/3A & 5V/2A output.
Specifications
- MCU: STM32F722 32-bit processor, 216MHz, 256Kbytes RAM, 512Kbytes Flash
- IMU: ICM42688-P (SPI)
- Barometer: BMP280
- OSD: AT7456E
- Onboard 16 Mbytes for Blackbox logging
- Battery input voltage: 3S – 8S
- BEC: 9V/3A, 5V/2A, 3.3V/0.2A
- Connector 2x JST-SH 8pin port for ESC 1x JST-SH 6pin port for HD VTX 2x JST-SH 4pin port for Receiver & Analog Camera 1x JST-SH 3pin port for LED
- USB Type -C
- Dimensions: 35x35mm
- Mounting Holes: Standard 30.5 x 30.5

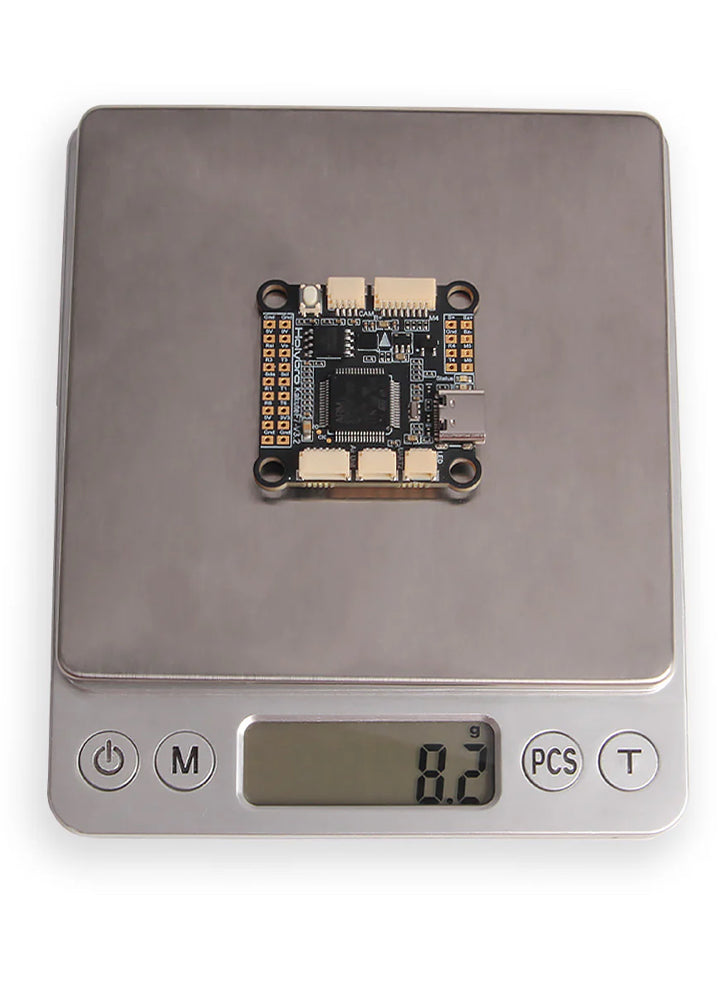

- Weight: 8g
- Betaflight Target: KAKUTEF7MINIV3
- INAV Target: KAKUTEF7MINIV3
- New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.

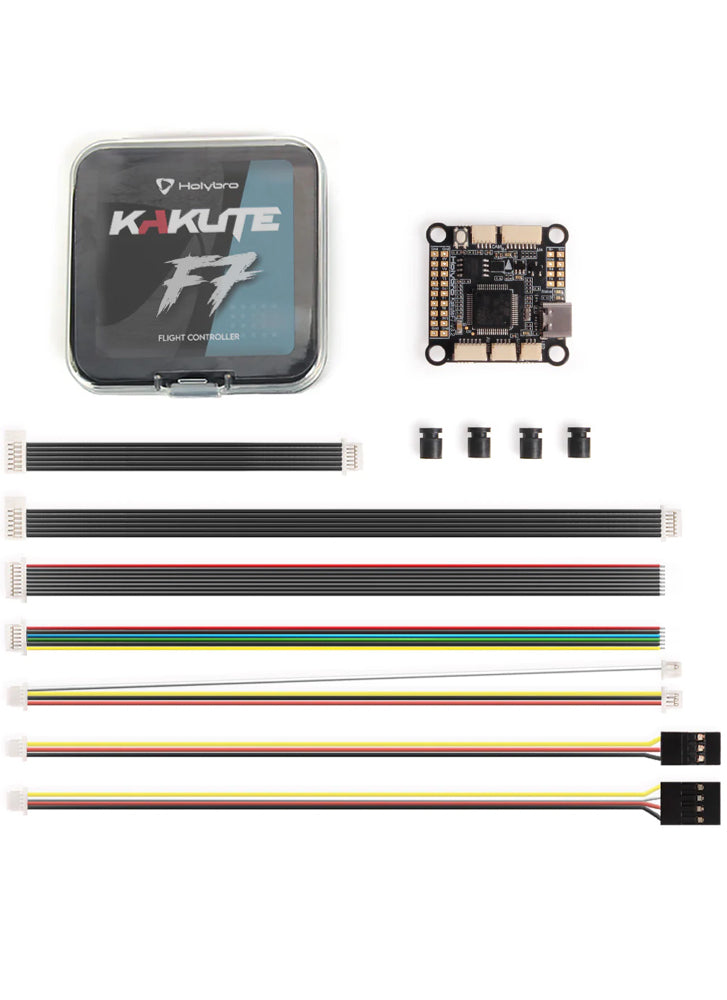

In the box
- 5x hardware UARTS (UART1,2,3,4,6)
- 7x PWM Outputs (6 Motor Output, 1 LED)
- 2x JST-SH 8pin port for ESC
- 1x JST-SH 6pin port for HD VTX
- 2x JST-SH 4pin port for Receiver & Analog Camera
- 1x JST-SH 3pin port for LED
- 1x Kakute F722 Flight Controller
- 4x M3 Silicon Grommets
- 1x JST-SH1.0_8pin 150mm Cable (For ESCs)
- 2x JST-SH1.0_6pin 80mm & 150mm Cable (For DJI Air Unit)
- 1x JST-SH1.0_6pin Colored Silicon 150mm Cable (For Caddx HD System and other VTX)
- 1x JST-SH1.0_4pin to Dupont 150mm Cable
- 1x JST-SH1.0_3pin to Dupont 150mm Cable
- 1x JST-SH1.0_4pin to Molex1.25 150mm Cable
