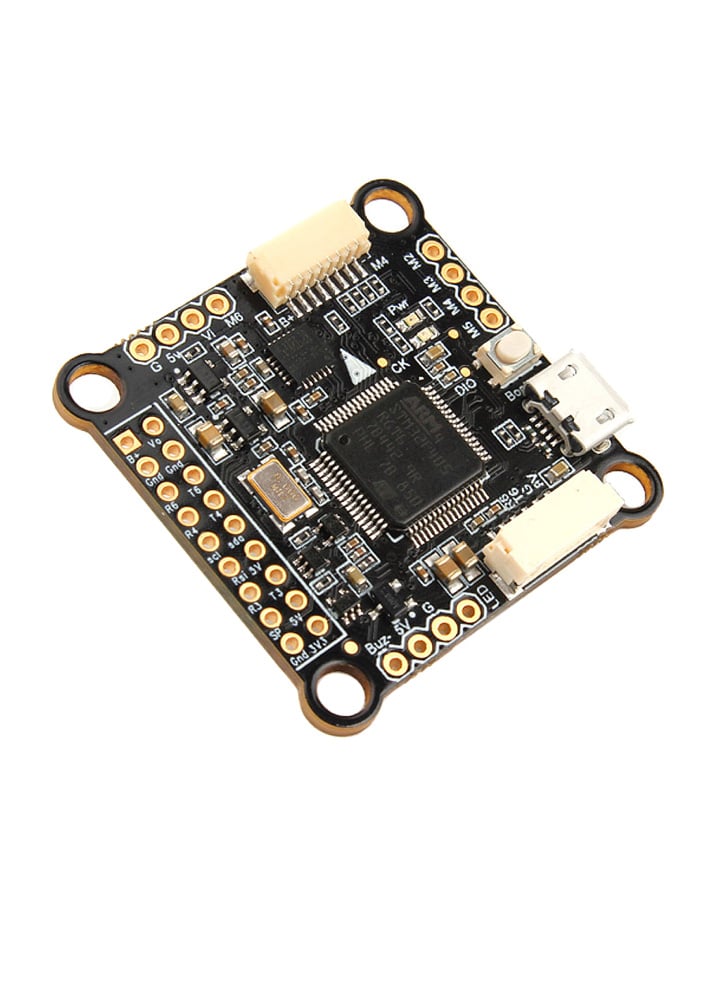

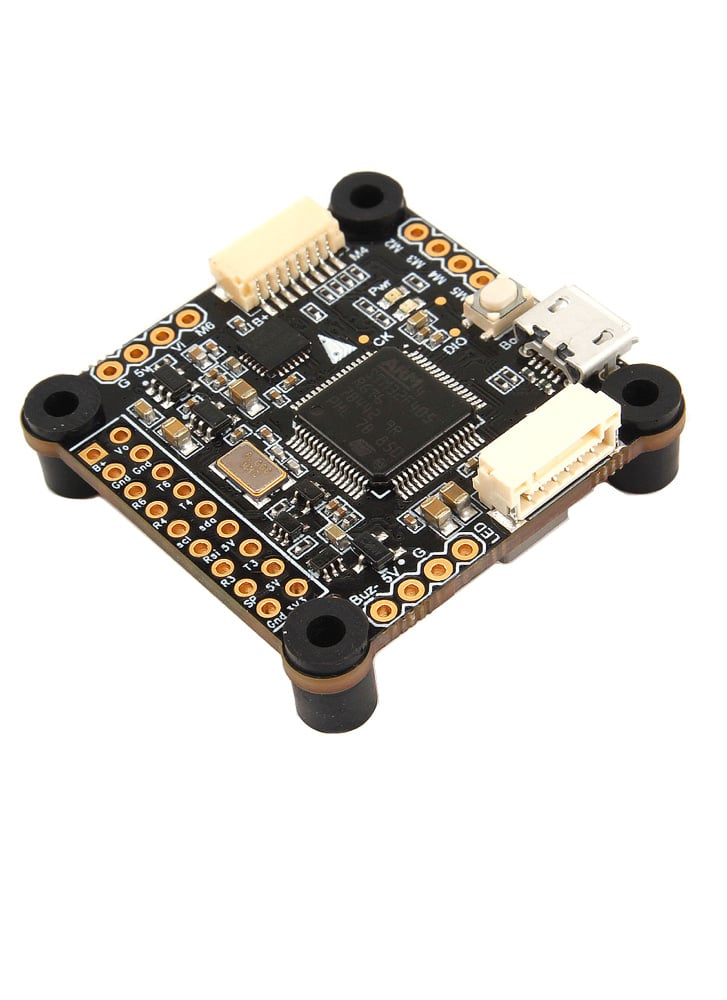

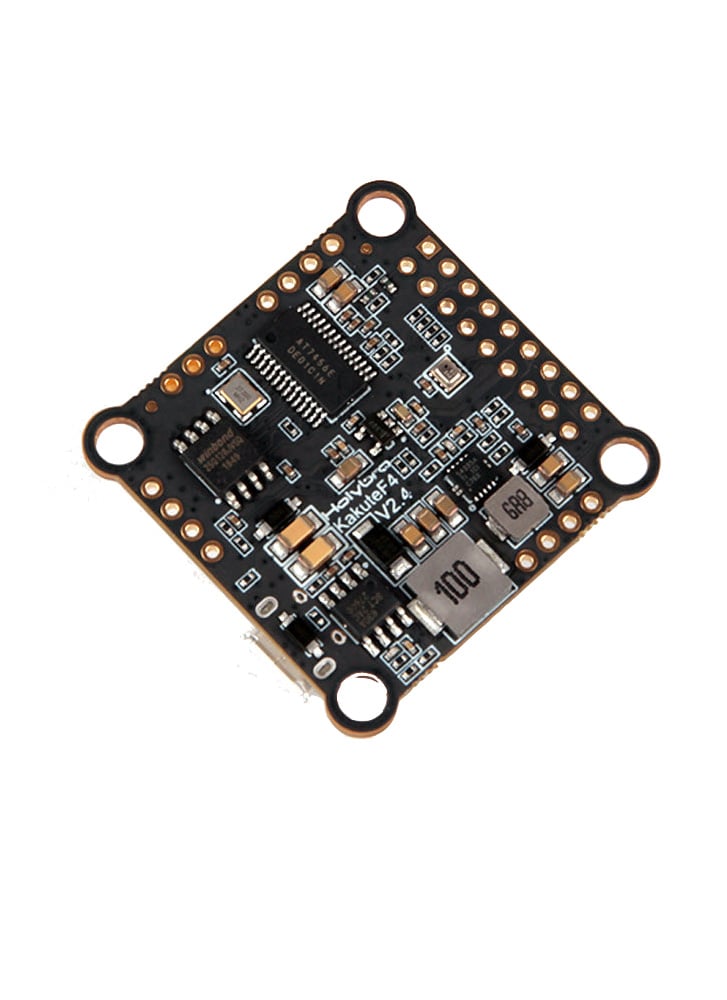

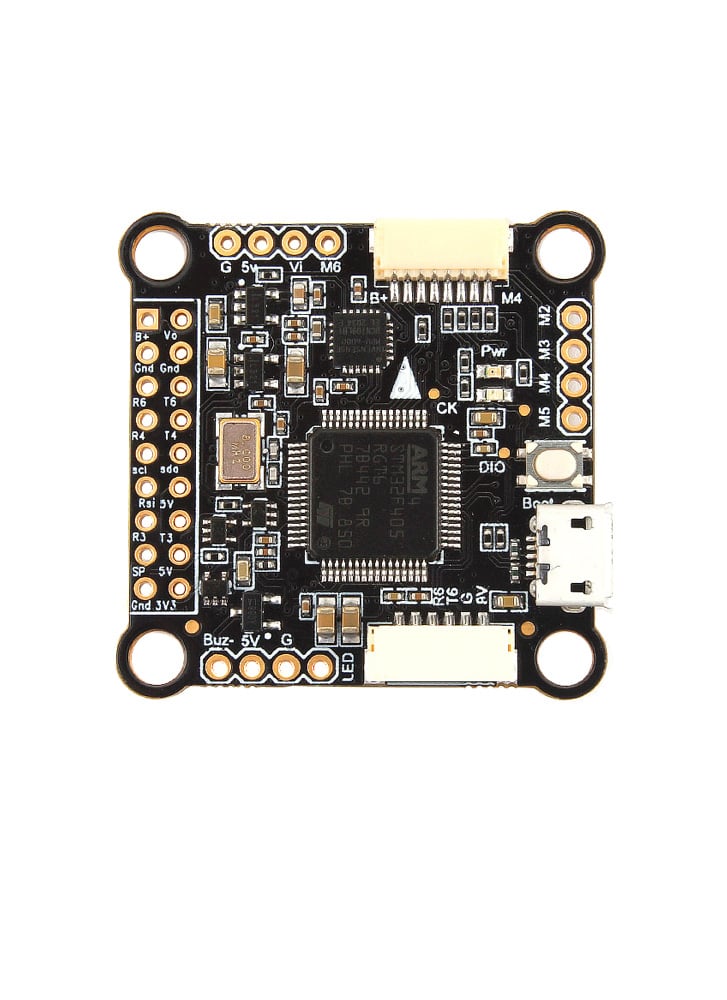

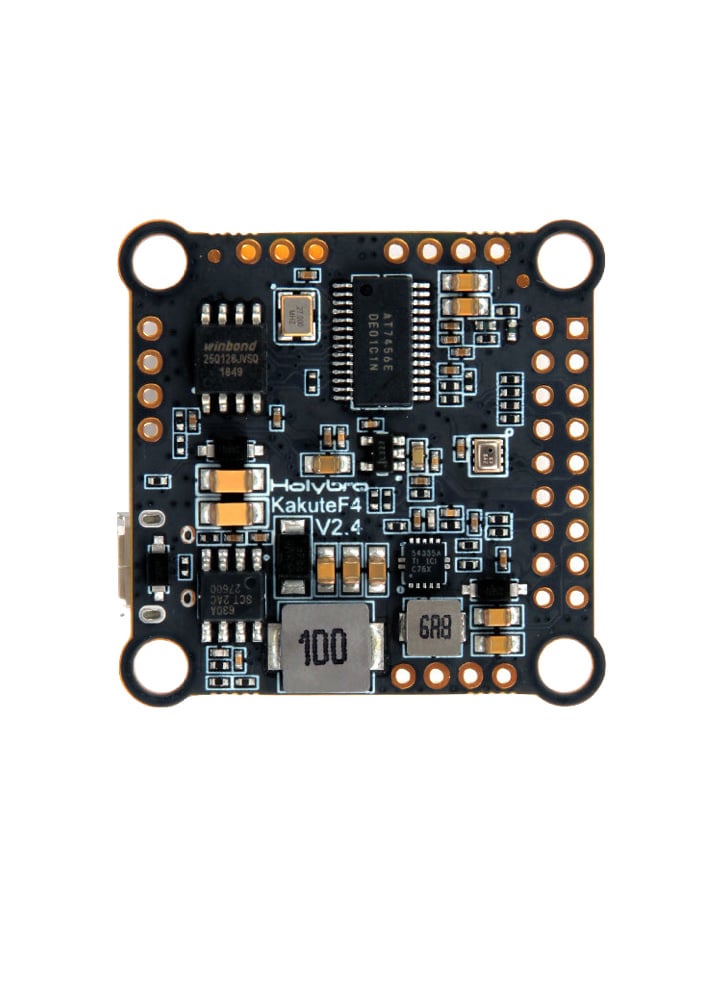

Holybro Kakute F4 V2.4 Flight Controller
£39.90
The Holybro Kakute F4 V2.4 is the next generation of this popular flight controller.
The Holybro Kakute F4 V2.4 Flight Controller includes plug-and-play DJI O3 HD camera plug, 4in1 ESC ports, barometer, OSD, 5x UARTs, logging capability with built-in flash , 5V and 9V/3A BEC, easy soldering layout and much more.
At the heart of this flight controller is the powerful F4 STM32F405RGT6 32-bit processor for extra processing speed and the low noise MPU6000 (SPI) IMU gyro/accelerometer which outputs sensor readings at 32Khz. There is an onboard blackbox with 128MB Dataflash chip for all your data logging needs and a barometer sensor to unlock altitude hold mode. Input voltage is 2S-8S. The FC also has a filtered voltage output of 5V 2A and 3.3V 200mA to power peripherals such as GPS, RX, FPV camera or LED strips. There is also a regulator that outputs 9V 3A for the DJI VTX. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers.
The FC supports Betaflight (pre-loaded)/ Cleanflight and it has dedicated bootloader button which makes firmware flashing a breeze. It also supports BLHeli pass through for easy ESC upgrade and configuration. The OSD interface is highly customizable and can be setup and fine tuned to your personal requirements.
Specifications
- MCU – STM32F405
- IMU – MPU6000
- Barometer – BMP280
- OSD – AT7456E
- 128 Mbit Dataflash chip
- Battery input voltage: 2S-8S
- BEC 9V/3A – Optimized for DJI O3 Air unit
- BEC 5V/2A
- Supports serial receivers (SBUS, iBus, Spektrum, Crossfire, ESLR).
- Mounting – 30 x 30mm, Φ4mm hole with M3 Grommets
- Dimension – 37x37mm
- Weight – 7g
- JST-SH1.0_8pin port (For 4in1 ESCs)
- JST-SH1.0_6pin port (For DJI/Caddx HD System and other VTX)
In the box
- 5x UARTs (1,3,4,4,6,7)
- 7x PWM Outputs (6 Motor Output, 1 LED)
- 1x Kakute F4 V2
- 4x Anti-Vibration Silicone Grommet Insert *4
- 1x JST SH 6pin to JST GHR 8pin 80mm &150mm cable (for DJI/Caddx HD System)
- 1x JST SH 6pin 100mm cable(for Caddx HD Systems)
- 1x JST SH 8pin 100mm cable(for ESCs)
