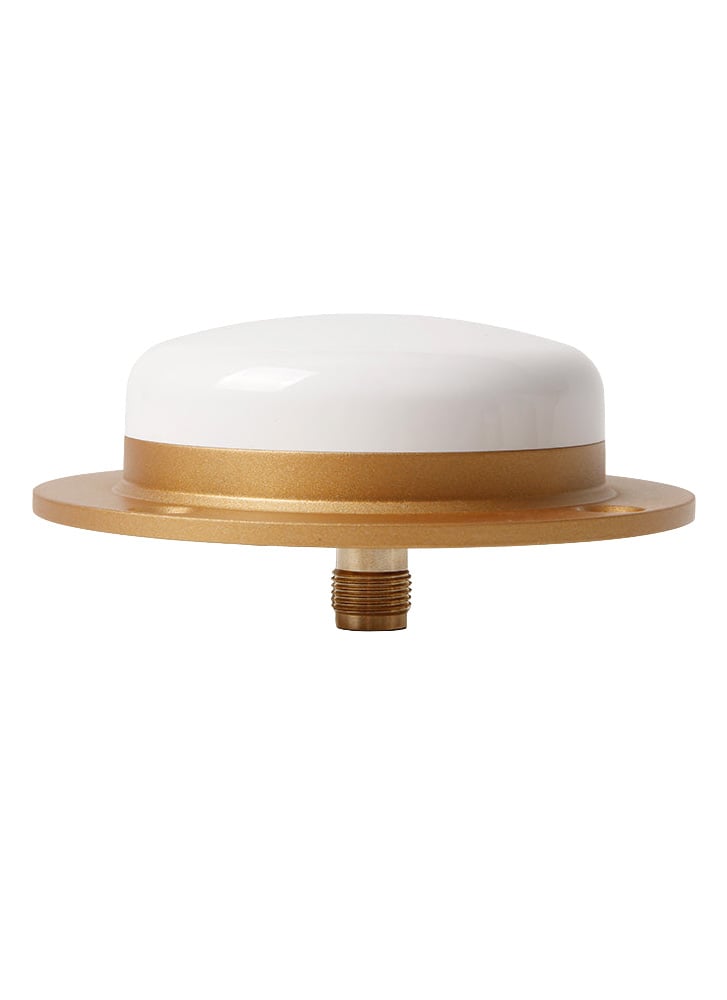

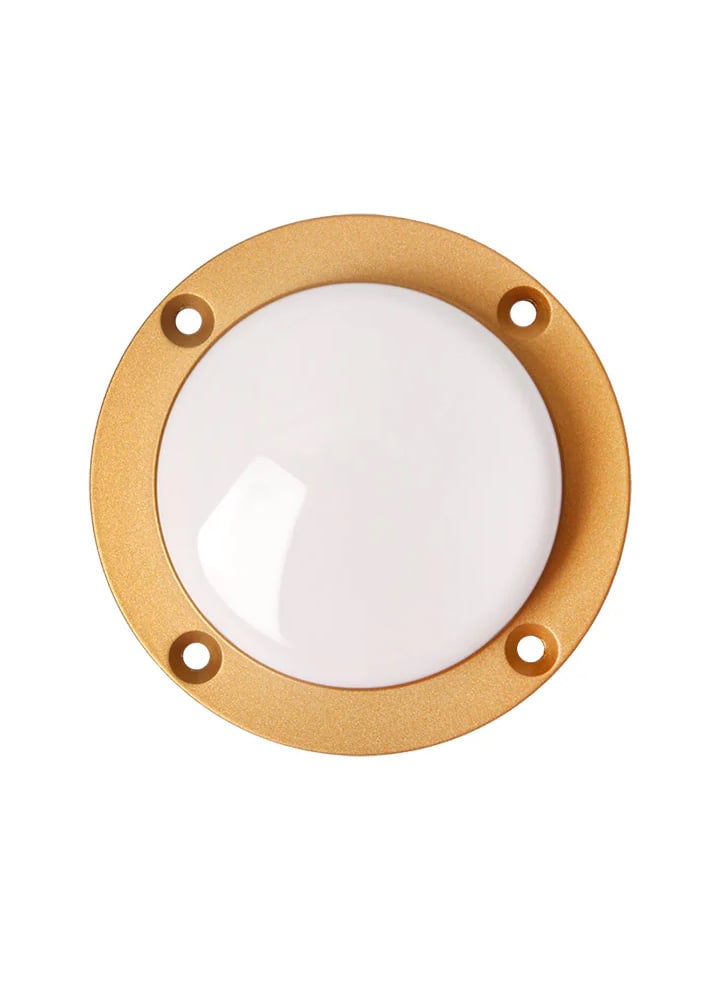

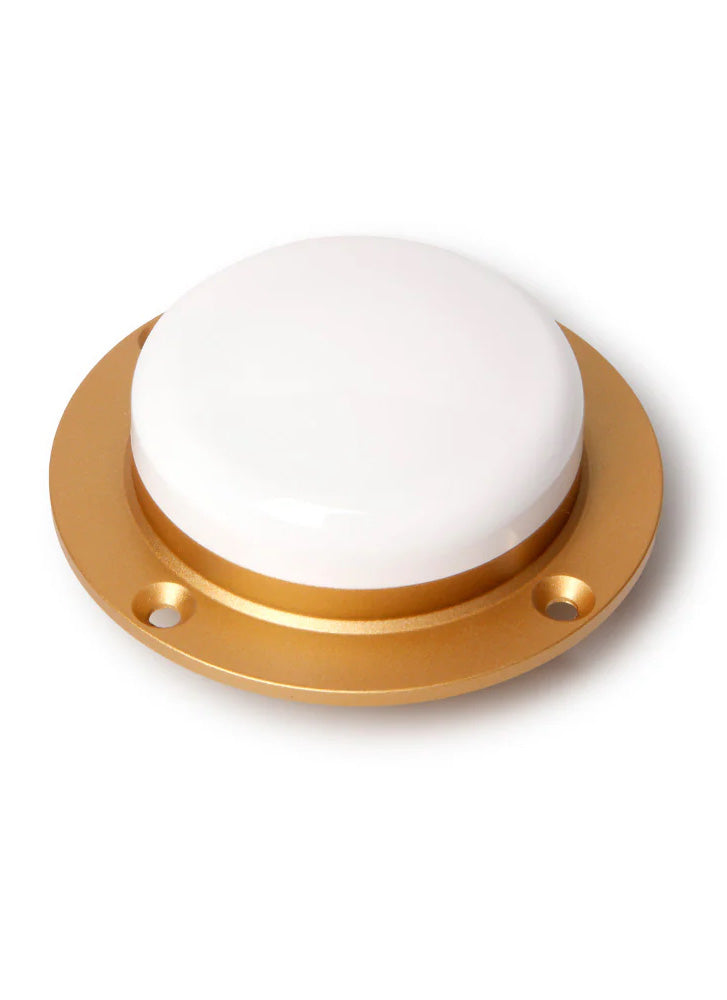

Holybro High-Precision Aviation Antenna (HANT-X601A)
£189.00
The High-Precision Aviation Antenna (HANT-X601A) is a high-gain, advanced antenna system tailored for professional UAV applications, providing unmatched navigation, tracking, and control across multiple satellite constellations. It supports full-band coverage for GPS (L1/L2/L5), GLONASS (L1/L2/L3), BeiDou (B1/B2/B3), and Galileo (E1/E5a/E5b), ensuring superior global positioning accuracy in diverse operational environments.
The antenna features a compact aerodynamic design that enables it to be mounted on top of the airframe without significantly increasing drag. 3dBi high-gain patch antenna that outperforms the helical style design. A rubber ring is pre-installed at the base of the antenna plate to create a seal during proper installation, preventing moisture from entering the connector area. Its plastic shell offers high heat resistance, allowing for reliable operation even under prolonged exposure to high temperatures. The internal circuitry is also insulated against heat to ensure optimal performance. Overall, a robust design comes with an IP67 rating, making it suitable for harsh environmental conditions.
Features
- Multi-Constellation Support: Works with GPS, GLONASS, BeiDou, and Galileo systems for precise global positioning.
- Low Profile Design: The small footprint and disk-shaped outer shell allow this antenna to cut through the air with ease. Provide low drag with great reception performance.
- Wide Frequency Coverage: Offers a broad beam width for consistent performance across various frequencies.
- Advanced LNA Technology: Filters signals effectively, has strong anti-interference capability, and reduces multi-path effects for better signal integrity.
- Durable Design: IP67, built to withstand harsh conditions, offering protection against dust and water for reliable performance in demanding environments.
Typical Applications:
Drones and UAVs
Surveying Equipment
Precision Agriculture
Autonomous Vehicles
Geographical Information Systems (GIS)
High-Precision Navigation Systems
Compatible GNSS Models:
H-RTK mosaic-H
H-RTK Unicore UM982
DroneCAN H-RTK F9P Helical

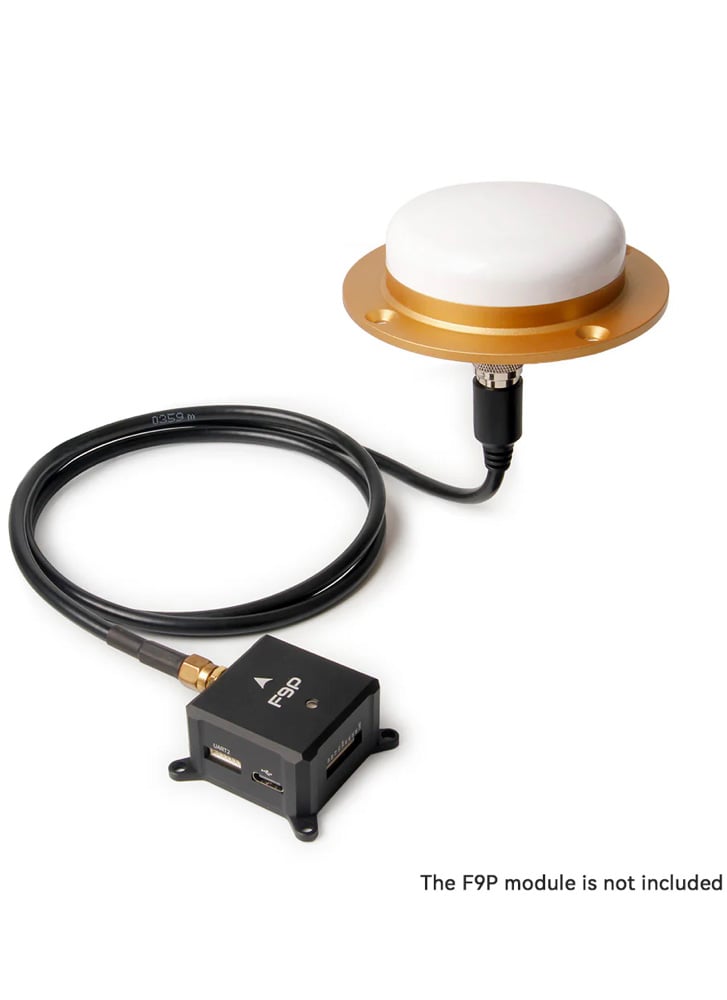

H-RTK F9P Helical
Any GNSS system using similar frequency bands and an SMA connector
Specifications
- Frequency range BDS B1/B2/B3, GPS L1/L2/L5 GLONASS L1/L2/L3 Galileo E1/E5a/E5b L_Band
- BDS B1/B2/B3, GPS L1/L2/L5
- GLONASS L1/L2/L3
- Galileo E1/E5a/E5b
- L_Band
- Impedance: 50 ohms
- Polarization: right-hand circular polarization
- Antenna axial ratio: ≤3dB
- Horizontal coverage angle: 360°
- Maximum gain: 3dBi
- Gain: 36±2dB
- Output standing wave ratio: ≤2.0
- Noise figure: ≤2.0dB
- Working voltage: +3.3V～+12VDC
- Working current: ≤45mA
- Antenna size: 75mm 75mm 26mm (excluding connector cable)
- Weight: ≤200g
- Connector type: TNC female (Adapter cable with SMA male)
- Working environment: Working temperature: -40℃～+85℃ Storage temperature: -55℃～+85℃ Humidity: 95% non-condensing
- Working temperature: -40℃～+85℃
- Storage temperature: -55℃～+85℃
- Humidity: 95% non-condensing
- IP Rating: IP67

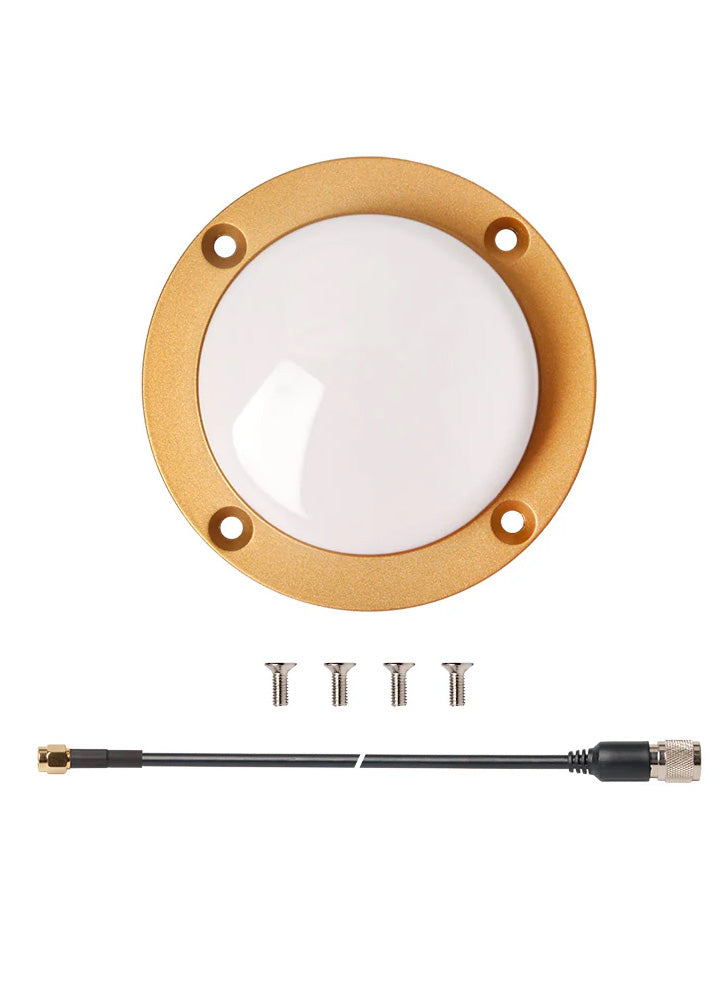

In the box
- 1x High-Precision Aviation Antenna
- 4x M4 screws
- 1x SMA male to TNC female coaxial cable
