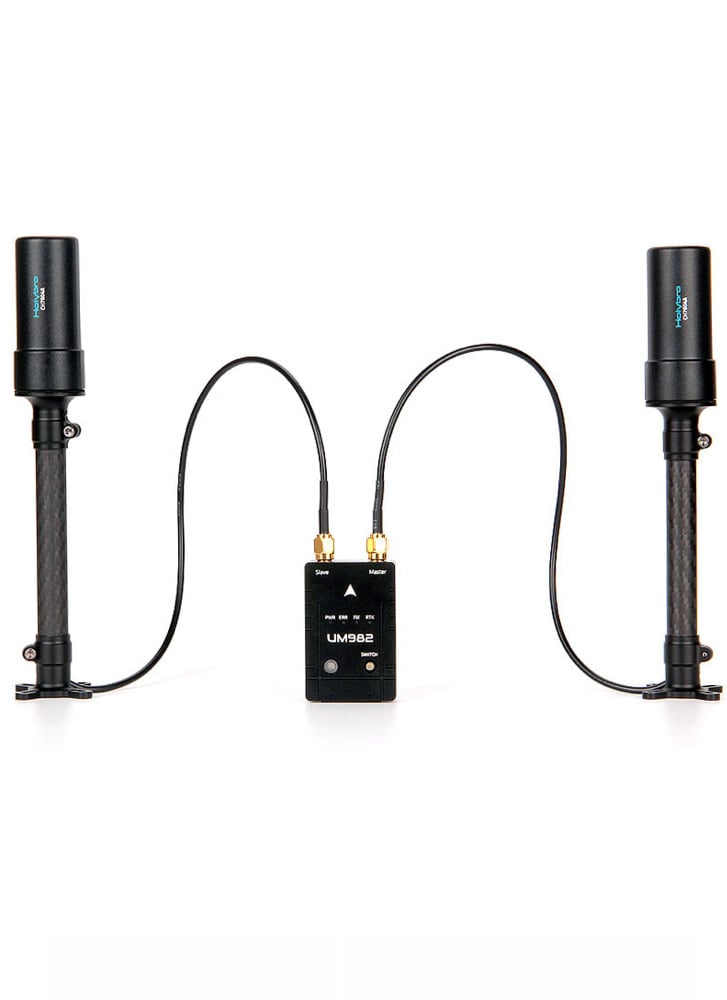

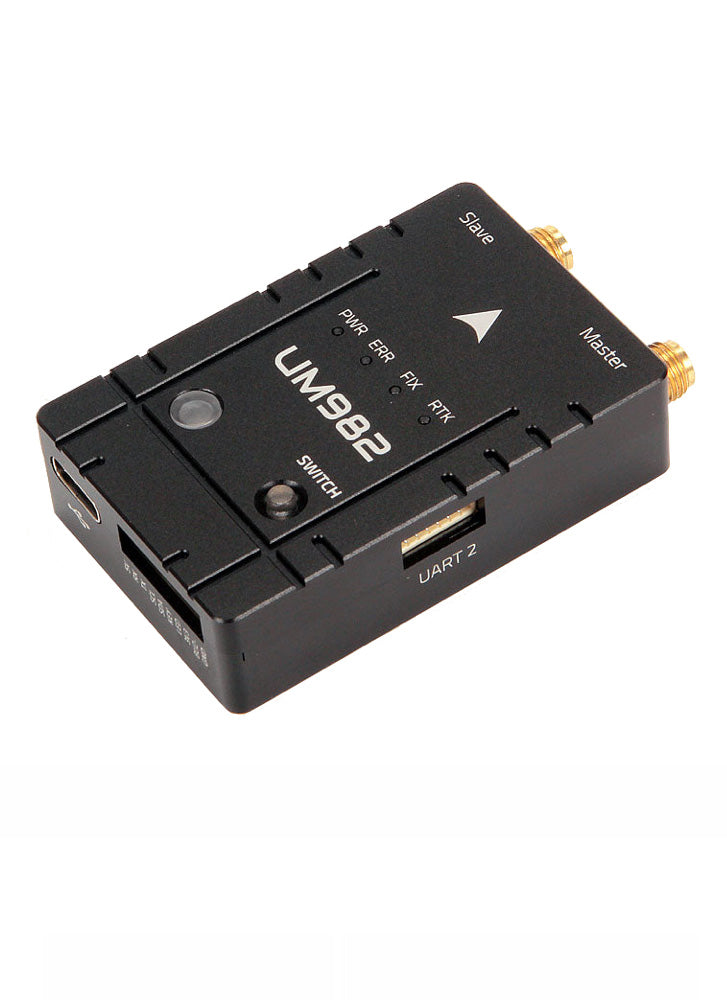

Holybro H-RTK Unicore UM982 High-Precision GPS Dual Antenna
£479.99
The Holybro UM982 Dual Antenna RTK GPS provides high-precision positioning information and is capable of generating non-magnetometer moving baseline yaw determinations for autopilots with one single GPS module.
One of the best applications of this GPS is to provide compass-less YAW information to the autopilot (commonly called GPS Heading or Moving Baseline Yaw). Using this GPS as a yaw source prevents magnetic interference from the vehicle motors and electrical systems and any environmental interference sources, such as metallic structures or equipment, that can cause incorrect yaw reports to the autopilot.
This works even if the GPSs are not receiving RTCM data from a fixed RTK station or NTRIP server. The device is based on the Unicore UM982 NMEA GNSS module and supports RTK positioning adjustment for centimeter-level accuracy, GPS/GLONASS,Beidou, Galileo, and QZSS global positioning systems.
It also includes a magnetometer, LED, and safety switch button. It also serves as an RTK-corrected vehicle GPS, with or without moving baseline yaw determination, and as a base station GPS for sending RTCM data to a ground control station to provide an RTK source for the vehicle via telemetry.
Features
- Dual antennas allow Moving Baseline Yaw (GPS Heading) with just one module
- Can replace the traditional compass/magnetometer
- Perfect for system/environment with high magnetic interference
- Excellent RTK performance
- For other technical detail and setup guide, please refer to the Holybro Documentation Page
Specifications
- Application: Rover, Base, Moving Baseline Rover
- GNSS: BDS B1I/B2I/B3I GPS L1C/A/L2P (Y)/L2C/L5 GLONASS L1/L2 Galileo E1/E5a/E5b QZSS L1/L2/L5
- BDS B1I/B2I/B3I
- GPS L1C/A/L2P (Y)/L2C/L5
- GLONASS L1/L2
- Galileo E1/E5a/E5b
- QZSS L1/L2/L5
- Antennas Peak Gain (MAX): 2dBi
- LNA Gain (typical): 33±2dB
- Time-TO-First Fix: Cold start: ≤ 30s Hot start: ≤ 5s
- Cold start: ≤ 30s
- Hot start: ≤ 5s
- RTK-SurveyIn-Time: ≤5 minute @2.0mCEP
- Data and Update Rate: 20 Hz Positioning & Heading 20 Hz Raw Data observation
- 20 Hz Positioning & Heading
- 20 Hz Raw Data observation
- Port Port 1: GH1.25 10-pin Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
- Port 1: GH1.25 10-pin
- Port 2: USB Type-c Port 3: UART 2 (GH1.25 6pin)
- Cable Length GH 10P: 150mm GH 10P: 400mm GH 10P to 6P: 300mm
- GH 10P: 150mm
- GH 10P: 400mm
- GH 10P to 6P: 300mm

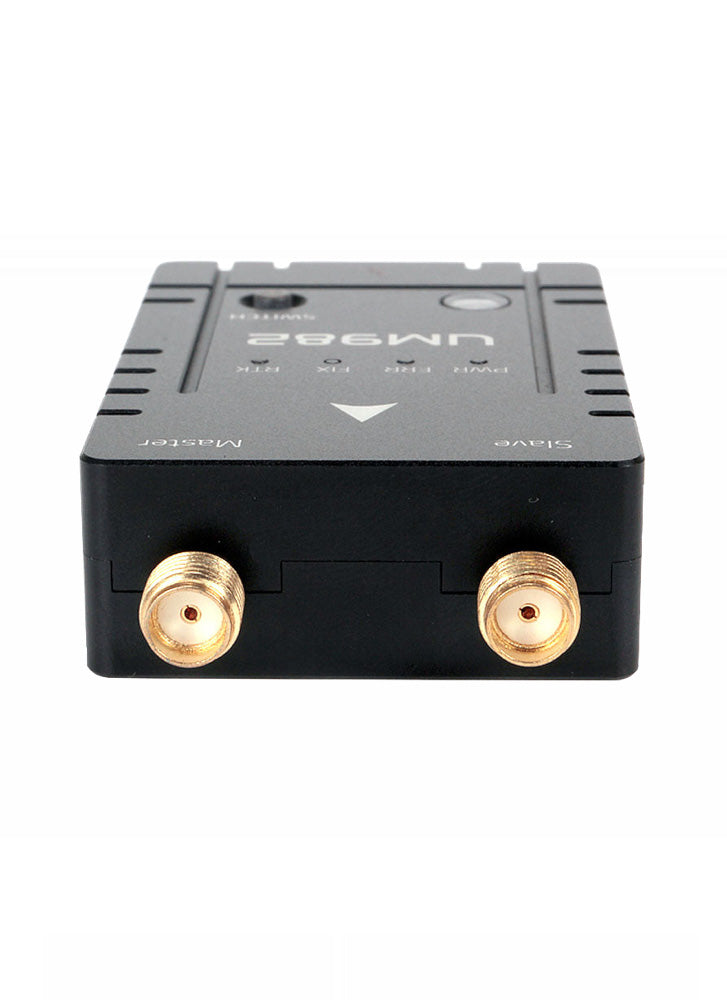

- Antenna Connection Type Board: SMA female Antenna: SMA male
- Board: SMA female
- Antenna: SMA male
- Baud rate: (Adjustable): 230400 5Hz default
- Working voltage: 4.75V~5.25V
- Current Consumption: ~350mA
- Dimensions Board: 34.8*58.9*14.4mm Antenna Diameter: 27.5mm Antenna height: 59mm
- Board: 34.8*58.9*14.4mm
- Antenna Diameter: 27.5mm
- Antenna height: 59mm

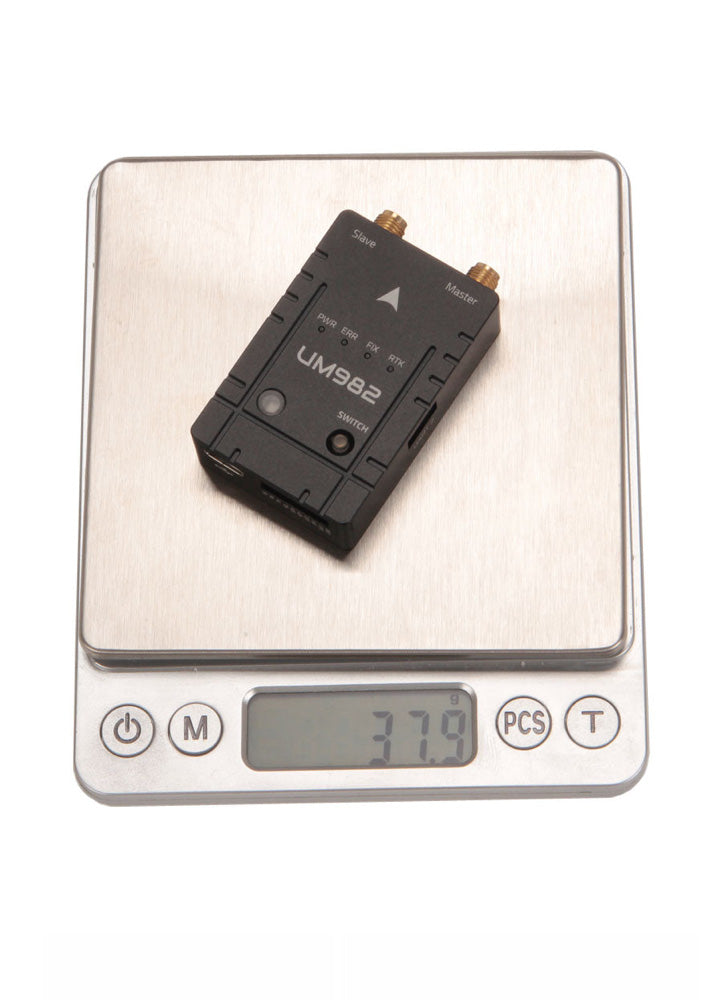

- Weight: 37.9g (without antennas)

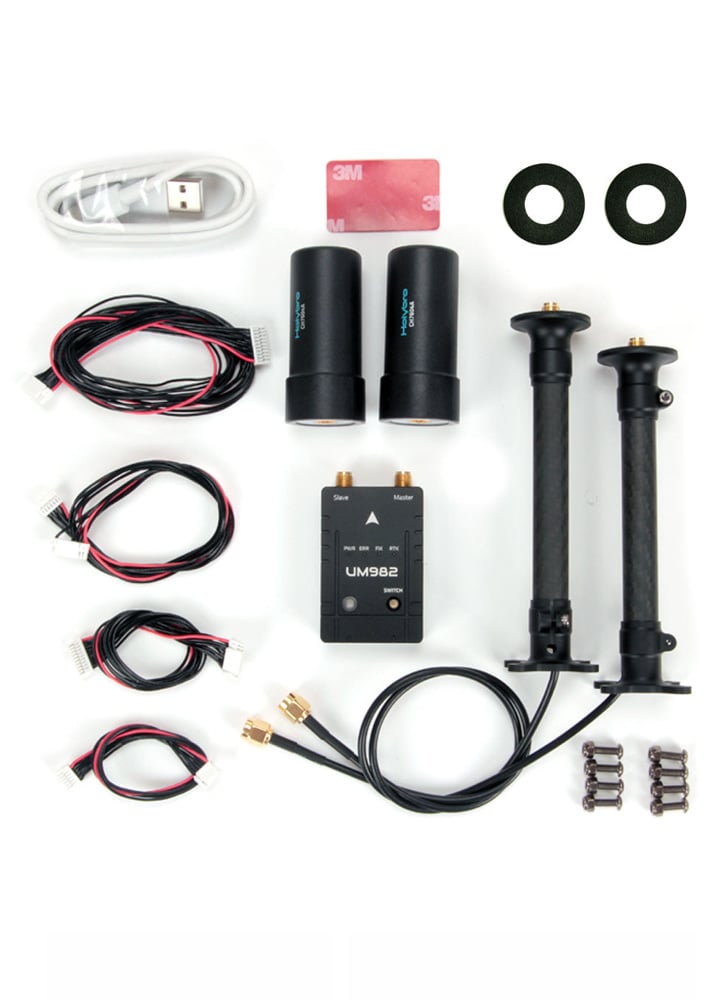

In the box
- 1x H-RTK UM982
- 2x High Precision Helical Antennas
- 2x Antenna Mounts
- 2x SMA Cables
- 2x 10pin – 10pin JST-GH Cables
- 1x 10pin – 6pin JST-GH Cable
- 1x 6pin – 6pin JST-GH Cable
