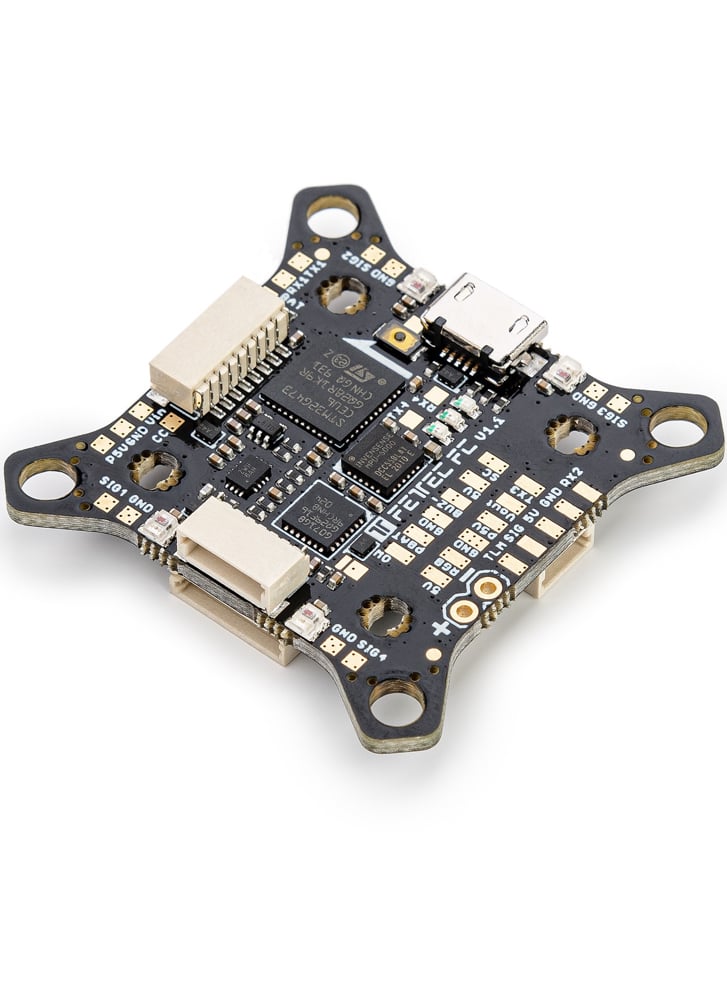

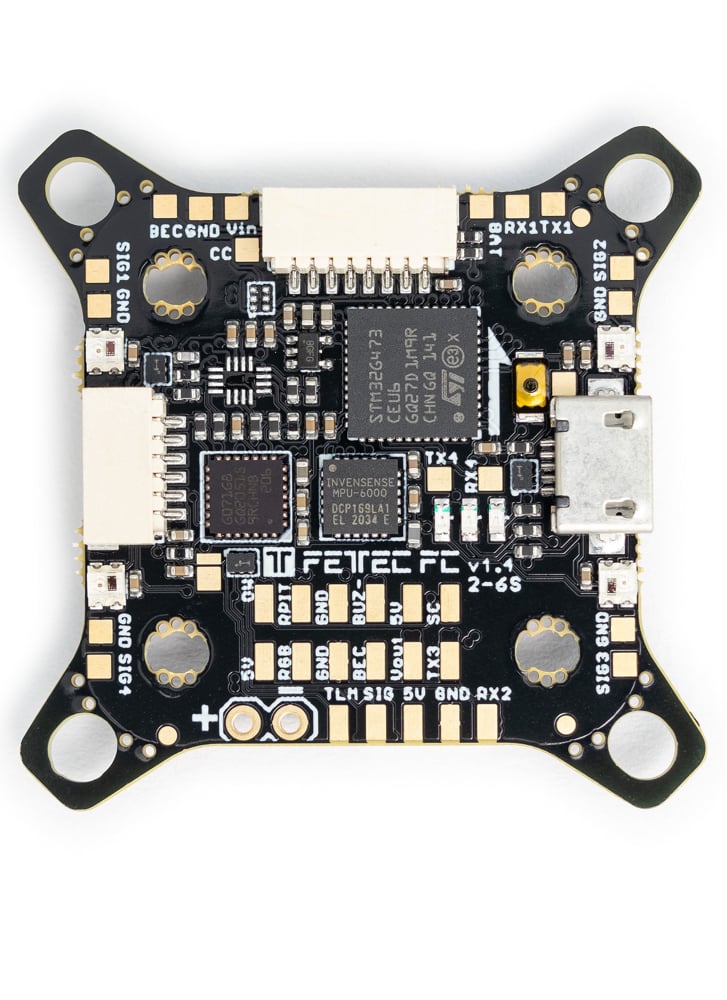

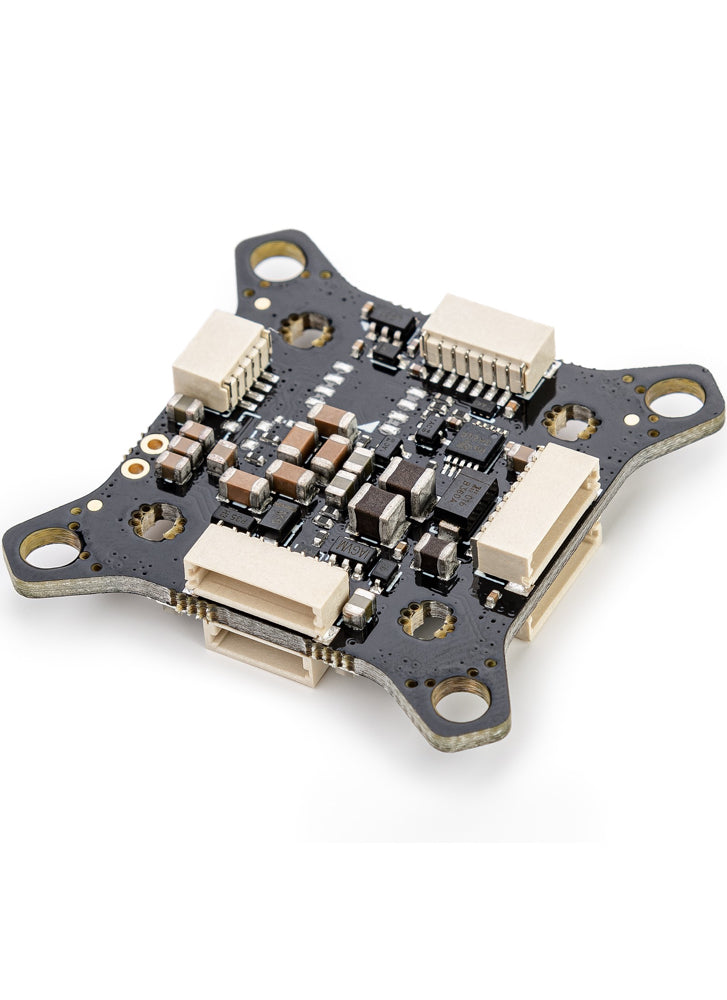

Holybro FETtec G4 Flight Controller
£74.50
KISS compatible, full featured and powerful G4 flight controller.
The Holybro FETtec FC G4 features the latest STM32 G4 MCU with math accelerator for the ultimate in flight performance, onboard OSD for KISS flight tuning, 2 dedicated BECs for 5V and 16V switchable power, DSHOT2400 outputs for support of up to 8 motors, and dual 20×20 and 30×30 mounting holes.
Features
- Full FETtec AIO with KISS FC Firmware
- MPU6000 Gyro
- 2-6S
- Graphical OSD with full KISS tuning
- This version of the flight controller includes a OSD chip so that it can be used with analog video systems.
Specifications
- Latest STM32G4 Processor 170Mhz + Math accelerator MPU6000
- 170Mhz + Math accelerator
- MPU6000
- Supply voltage 6-27V (2S-6S Lipo)
- 5V BEC for RX
- 5V/16V BEC for VTX (switchable and real Pit*)
- Connector 1: ESC signal 1-4, telemetry, VCC, GND
- Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
- real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
- RX1, TX1, 3.3V, VCC, 5V, GND
- RX3, VCS/TX3, RGB LED, VCC, 5V, GND
- Signal, TLM, 5V, GND
- 5 UART serials UART 1 free UART 2 used for Receiver UART 3 free UART 4 used for onboard OSD, can be set free UART 5 used for ESCs / TLM / Onewire
- UART 1 free
- UART 2 used for Receiver
- UART 3 free
- UART 4 used for onboard OSD, can be set free
- UART 5 used for ESCs / TLM / Onewire
- 4 ESC solder pads (Signal/GND) in each corner
- Buzzer pads
- 4 tiny RGB LEDs (selectable color)
- Supported ESC protocols PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
- PWM, Oneshot125, Oneshot42, Dshot150/300/600/1200/2400, FETtec Onewire
- FETtec KISS firmware
- Onboard OSD Graphic OSD (STM32) Full KISS Tuning Filter (PIDs, Rates, Settings) LED control (RGB LED, Racewire) VTX Live data graphs (Voltage, motor rpm, current, motor temp, gyro values, link quality) KISS GPS support + live map Custom graphic pilot logo Stick overlay Custom layout can be deactivated for usage of digital systems
- Graphic OSD (STM32)
- Full KISS Tuning

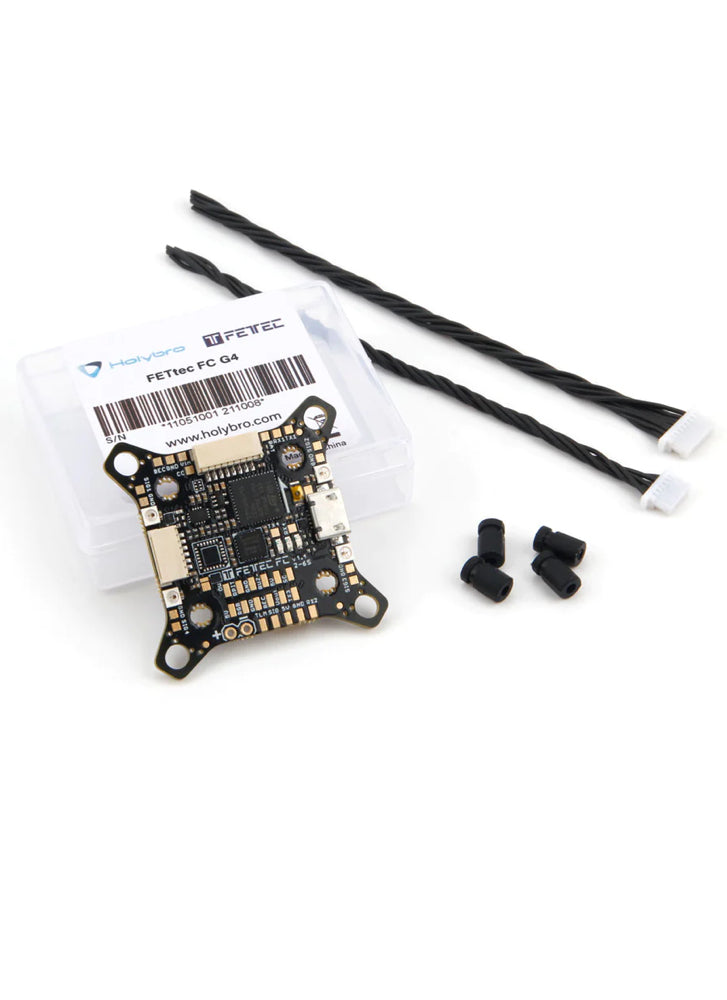

In the box
- 2x dedicated onboard BEC (max. 600mA each) 5V BEC for RX 5V/16V BEC for VTX (switchable and real Pit*)
- 2x 8 pin connector for solder free ESC connection Connector 1: ESC signal 1-4, telemetry, VCC, GND Connector 2: ESC signal 5-8 (depending on UAV type 1-4), telemetry, VCC, GND
- 1x 8 pin connector for solder free VTX, cam connection and OSD or digital systems real Pit* VCC, GND, Video in, Video out, BEC 5V/16V, VCS/TX3, RX3
- 2x 6 pin connectors for serials RX1, TX1, 3.3V, VCC, 5V, GND RX3, VCS/TX3, RGB LED, VCC, 5V, GND
- 1x 4 pin connector for receiver Signal, TLM, 5V, GND
