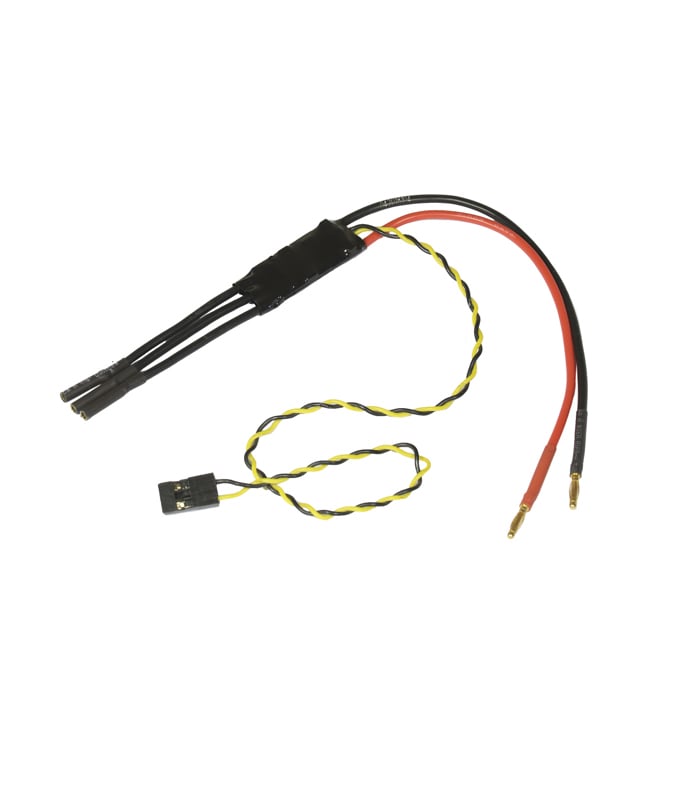

Holybro BLHeli S ESC 20A 2-4S Speed Controller

£14.75

A BLHeli S 20A ESC designed for use with Holybro’s 2216-880KV Motor / X500 Quadcopter Kit (V1 and V2). The ESC is slim so can fit within 16MM booms.

It comes with long wires and pre-soldered connectors for a quick and easy installation – please select connector option as required.

Main features

● EFM8BB21F16G MCU, pipelined 8-bit C8051 core with 50 MHz maximum operating frequency. ● Dedicated high frequency driver, makes the start more smooth. ESC maximum speed is 500k eRPM. ● BLHeli-S firmware is designed for superior performance in multirotors, and uses hardware generated motor pwm for smooth throttle response and silent operation. ● Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling. ● Supports higher KV motor and more power load. ● The code supports regular 1-2ms pulse width PWM input, as well as Oneshot and Multshot . The input signal is automatically detected by the ESC upon power up. ● Supports Dshot150, Dshot300 and Dshot600. Dshot is digital signal, anti-interference ability is stronger and do not need throttle calibration. ● The silicone twisted-pair of the throttle signal cable reduces the crosstalk caused by signal transmission and makes flight more stable.

Specifications

• Con. Current:20A
• Burst Current(10S):30A
• BEC:NO
• LiPo cells: 2-4S
