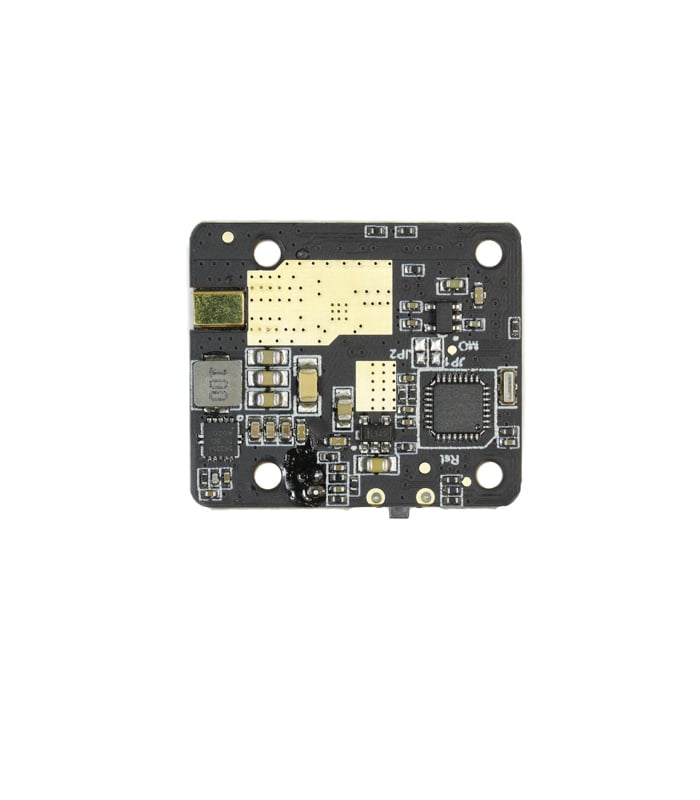

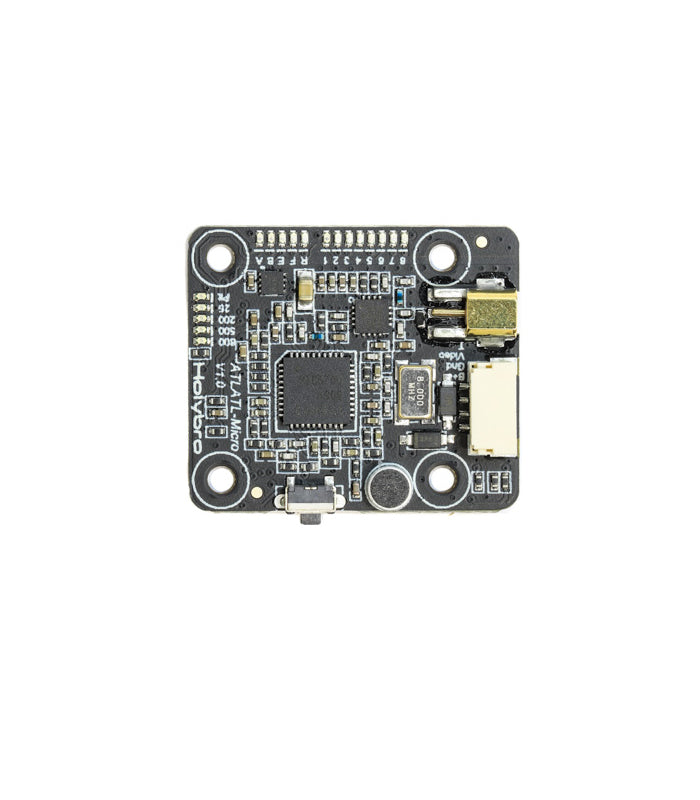

Holybro Atlatl HV Micro 25-800mW FPV VTX w/ Smart Audio & Mic

£24.90

The Atlati HV Micro offers the same functionality as its bigger brother the original Atlatl HV VTX, but just in a smaller form factor making it more suited to 20×20 flight stacks.

The VTX offers a Pit Mode so that you can power up your VTX to change settings without knocking other pilots out of the air. There is also SmartAudio which allows you to control your VTX via your flight controller and so change channel, transmitting power remotely from your RC. The Atlatl VTX Micro comes with a durable MMCX connector and also with a pigtail SMA converter.

Features

• Compatible with all major FPV receivers from vendors such as Fatshark, ImmersionRC, etc.
• Supports the standard 40-channel set: band A, B, E, Fatshark, and Raceband.
• SmartAudio input allows remote control by the flight controller (where supported). Change channel, transmit power, and more from Betaflight OSD, flight controller USB port, Taranis Lua Script, and more.
• All parameters art controllable via push-button on the side of the unit, for case where SmartAudio is not used.
• MMCX connector is durable and easy to use. Rated for 100’s of mating cycles. Easy and quick
• antenna changes. No more ripped-off UFL connectors.
• LED Indicators of Channel, Band and Power. Allow easily check VTX Parameters by glancing at the quad.
• Variable transmit power from 25 mW to 800 mW. Use 25 mW for a race and then easily switch to 800 mW for freestyle.
• to 800 mW for freestyle.
• 0.5mW Ture Pit Mode allows you to power up safely without the risk of knocking other pilots out of the air.
• Built-in Microphone, so you can listen to your motors while you fly, no matter how far away you fly.
• Standard 26mm form factor allows you to mount the Atlatl directly on your flight controller stack.
• Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specifications

• Output Power: 0.5 mW (pit mode), 25 mW, 200 mW, 500 mW, 800 mW
• Audio: 6.5 MHz Mono
• Antenna Connector: MMCX
• Input Voltage: 7 to 28 volts (2-6S LiPo)
• Dimensions: 30x26x7mm
• Mounting Holes: Standard 20mm square to center of holes
• Weight: 3.6g

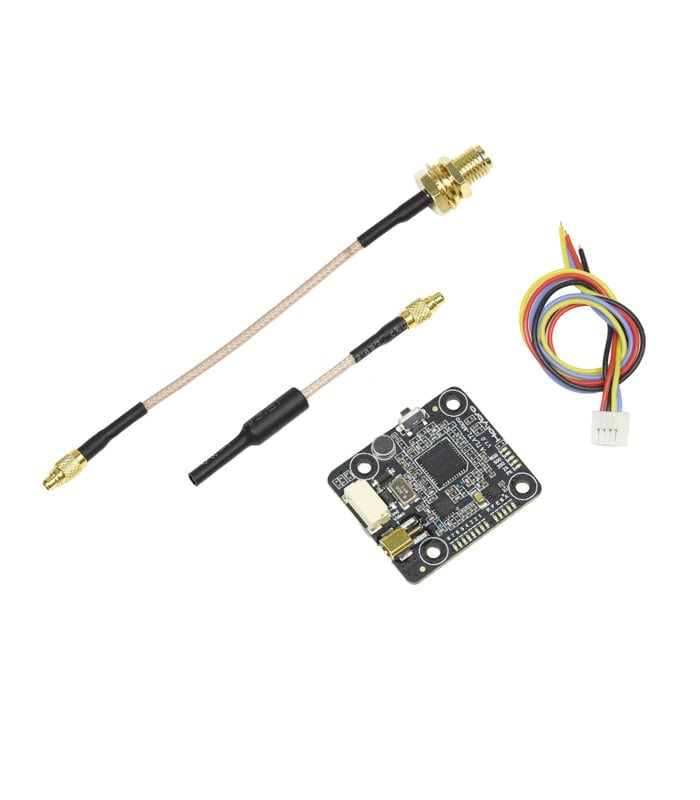

In the box

• 1x Holybro Atlatl HV Micro
• 1x 80mm SMA–MMCX Cable
• 1x MMCX Miniature antenna
• 1x JST SH 8pin 150mm cable
