Holybro Atlatl HV 5.8G 3W VTx FPV Video Transmitter
Holybro Atlatl HV 5.8G 3W VTx FPV Video Transmitter
Holybro Atlatl HV 5.8G 3W VTx FPV Video Transmitter
Holybro Atlatl HV 5.8G 3W VTx FPV Video Transmitter
Holybro Atlatl HV 5.8G 3W VTx FPV Video Transmitter

Holybro Atlatl HV 5.8G 3W VTx FPV Video Transmitter

£49.99

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region. By adding this product to your cart, you are confirming that you have read this notice, and that Flying Tech is in no way responsible for the actions of the operator while using this product.

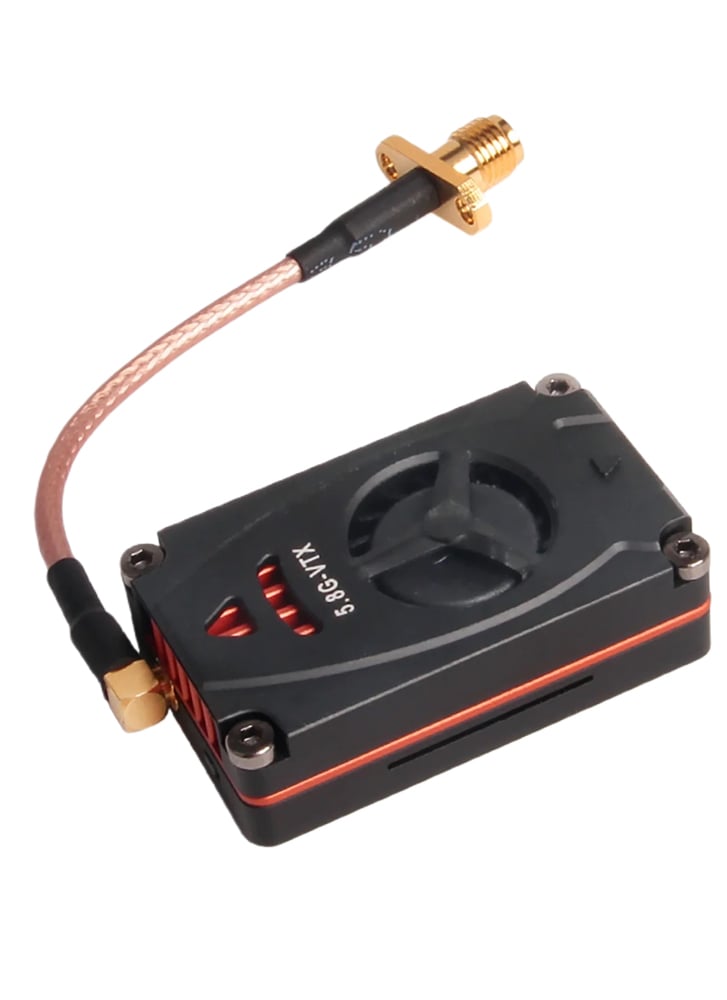

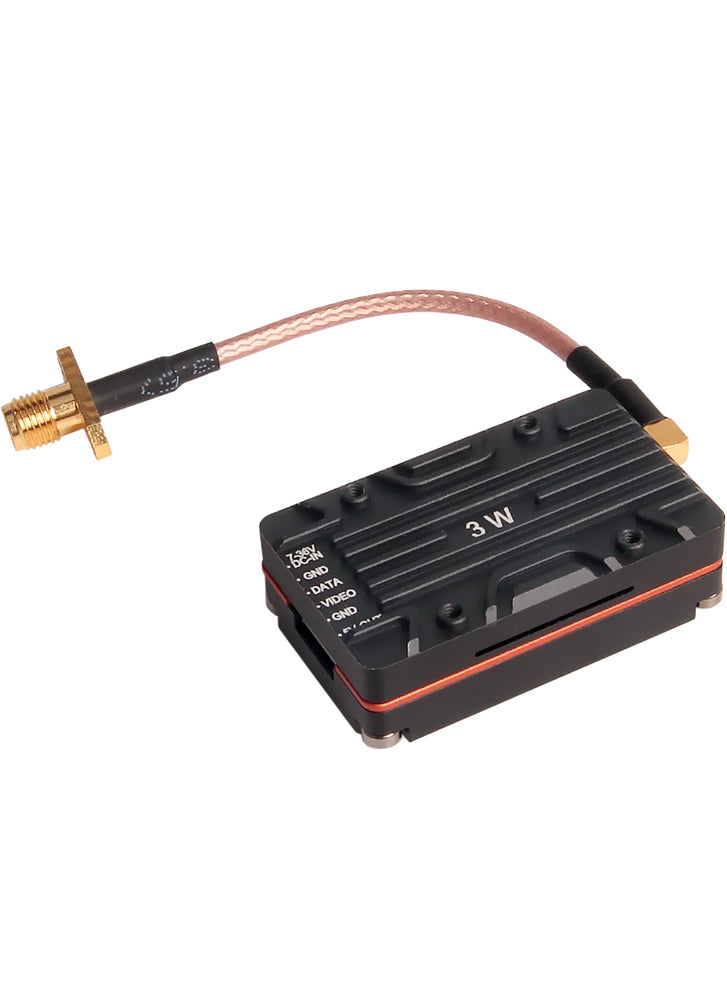

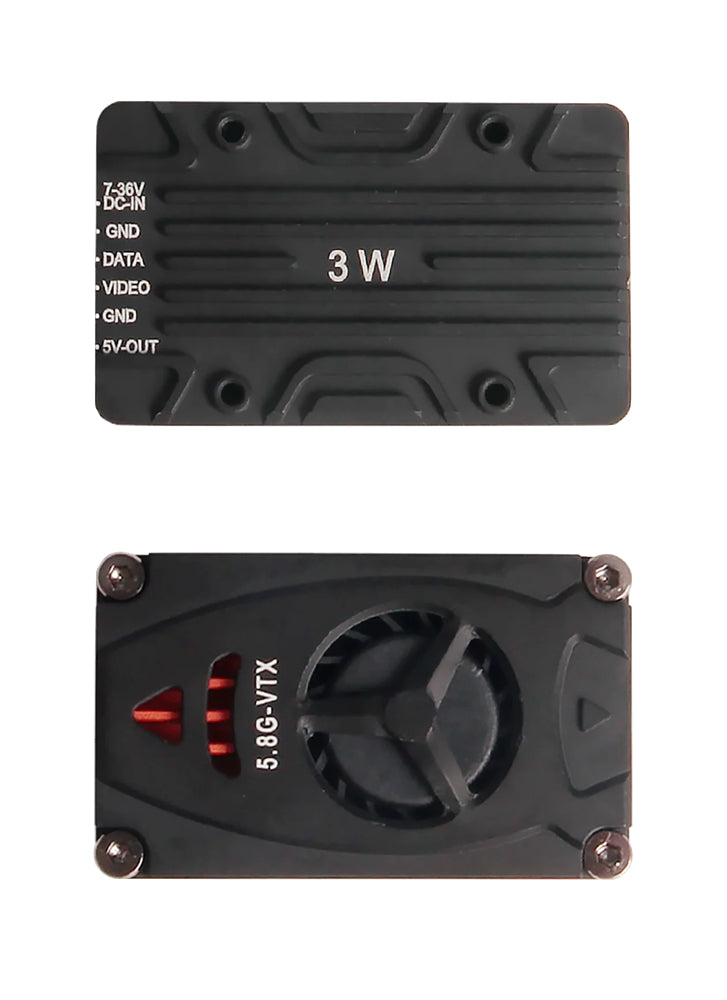

This video transmitter offers a variable power supply, from 25mW (UK legal limit) up to 3W. Running at 3W generates a lot heat, so the VTX incorporates a built-in fan. It also has Pit Mode so that you can power up your VTX to change settings without knocking other pilots out of the air. There is also SmartAudio which allows you to control your VTX via your flight controller to change channel and transmitting power remotely from your RC. The Atlatl VTX comes with a durable MMCX connector and also with a pigtail SMA converter.

WARNING: MAKE SURE TO INSTALL ANTENNA BEFORE TURNING ON THIS VIDEO TRANSMITTER

Operating Instructions

Channel: Single press to change (Blue LED: CH1/CH2/CH3)

Band: Long press 2s to enter, single press to change (Red LED flashes: 1=A, 2=B, 3=E, 4=F, 5=R, 6=L, 7=X)

Power: Long press 6s to enter, single press to change (Green LED flashes: 1=25mW, 2=1.6W, 3=2W, 4=2.5W, 5=3W)

PIT Mode: Green LED always on

Specifications

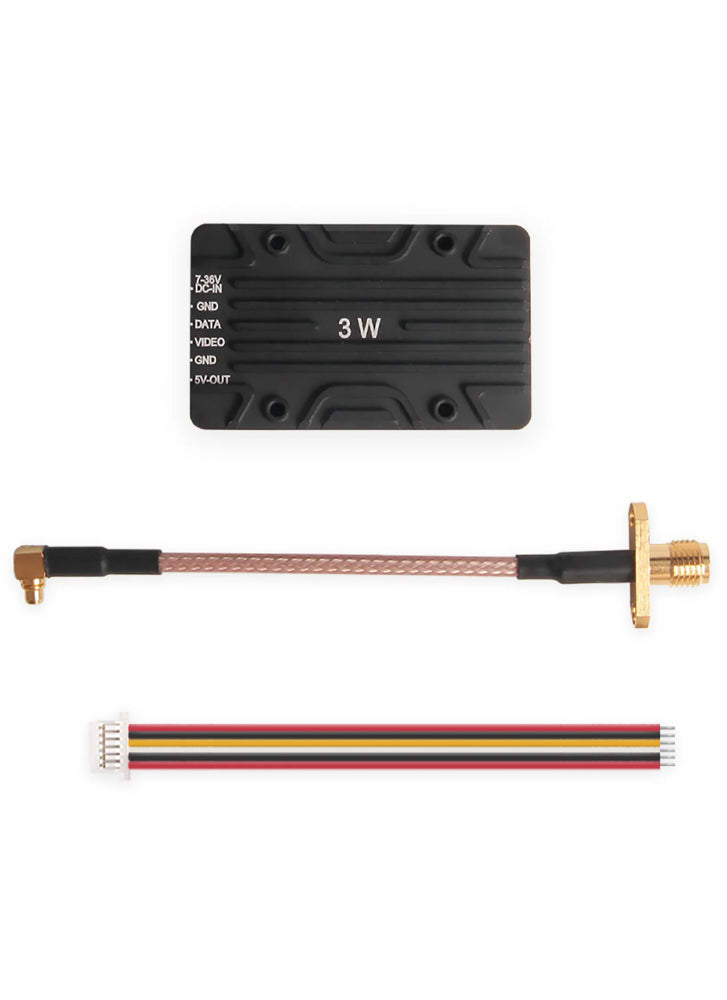

In the box
