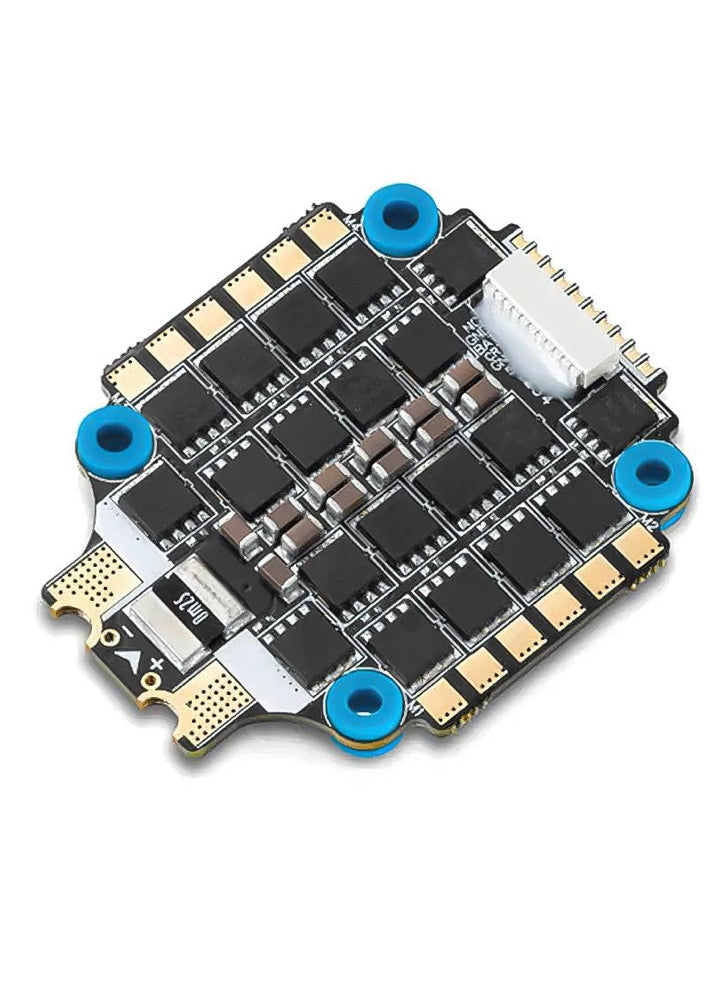

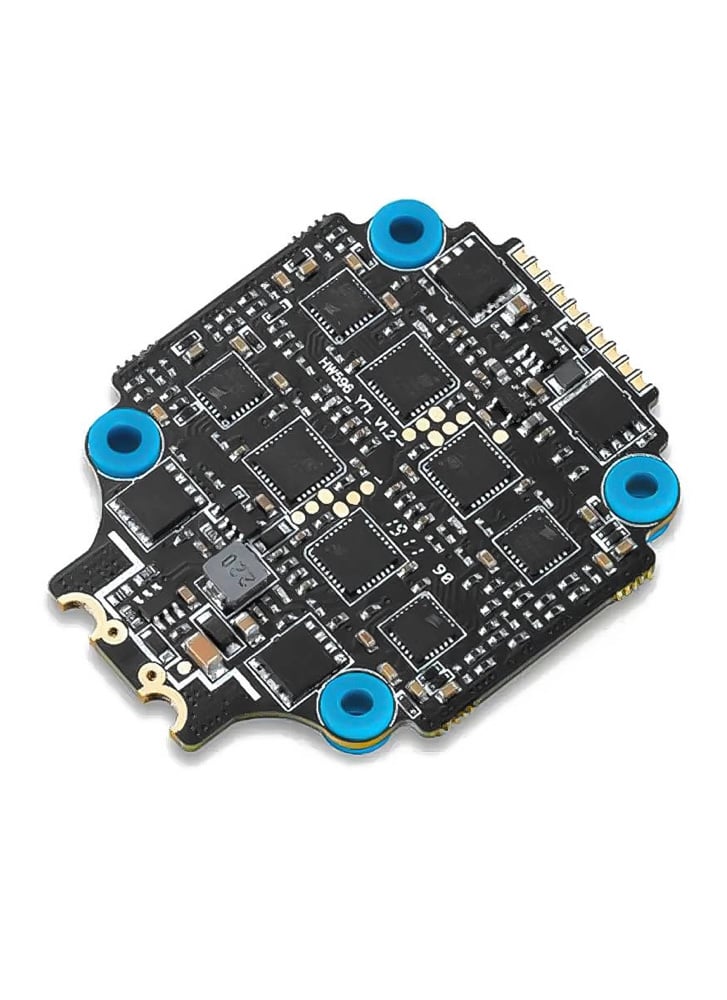

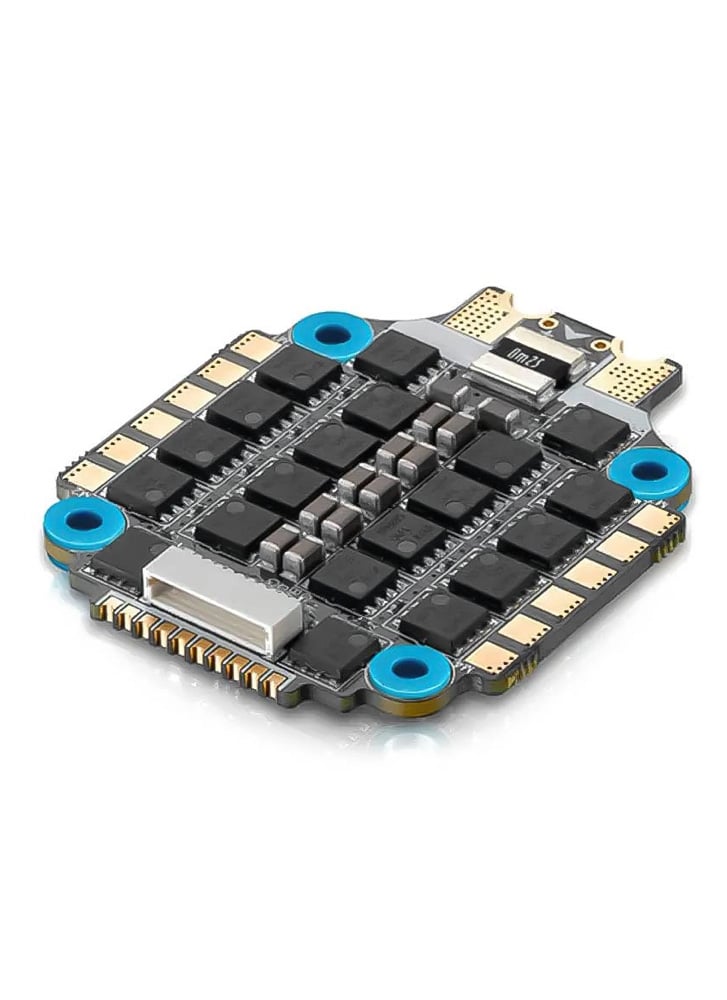

Hobbywing XRotor FPV G2 Micro 65A 3-6S 4in1 AM32 ESC
£79.90
This is the latest version of HobbyWing 30×30 4in1 FPV Drone ESC. Now running AM32 firmware.
The HOBBYWING XRotor FPV G2 65A 4-in-1 ESC is a high-performance power system for FPV racing drones, now upgraded with open-source AM32 firmware for faster updates, expanded features, and enhanced stability over BLHeli-32. Designed to handle high-load conditions with ease, it uses a 32-bit ARM F4 MCU at 120 MHz, supports variable PWM refresh rates from 48–96 kHz, and delivers smooth, precise throttle control.
Hobbywing electronics are rock solid and this ESC is no exception. Extra focus was put into this ESC to make it extremely reliable for any setup you are running. For instance, the ESC comes with a conformal coated for water resistance protection, a nice touch.
If you know what’s what in FPV, you’ll want to get your hands on this ESC!
Features
- AM32 open-source firmware for faster updates and feature expansion
- 32-bit ARM F4 MCU running at 120 MHz for ultra-fast processing
- Variable PWM refresh rate (48–96 kHz) with dynamic adjustment
- Built-in voltmeter for real-time amp and voltage monitoring
- Adjustable motor KV settings for precise throttle control
- Integrated 4 high-performance ESCs in one compact unit
- Shock-absorbing mounting holes reduce vibration impact
- Higher sustained power output for demanding flights
- Supports DShot 300/600 and traditional PWM signals
Specifications
- Telemetry: Voltage & current monitoring via built-in voltmeter
- Mounting Holes: 30.5×30.5mm, M3 with shock-absorbing design
- PWM Frequency: 48–96 kHz (auto-adjusting)
- Burst Current: 80A (per channel, 10s)
- Continuous Current: 65A
- Firmware: AM32 (open-source)
- MCU: 32-bit ARM Cortex-M4 @ 120 MHz
- Voltage Input: 3–6S LiPo
- Throttle Signal: DShot 300/600, PWM
- Weight: ~15g (without wires)
- BEC Output: None
In the box
- 1x Hobbywing XRotor Micro 65A 6S AM32 4-in-1 ESC – 30×30
