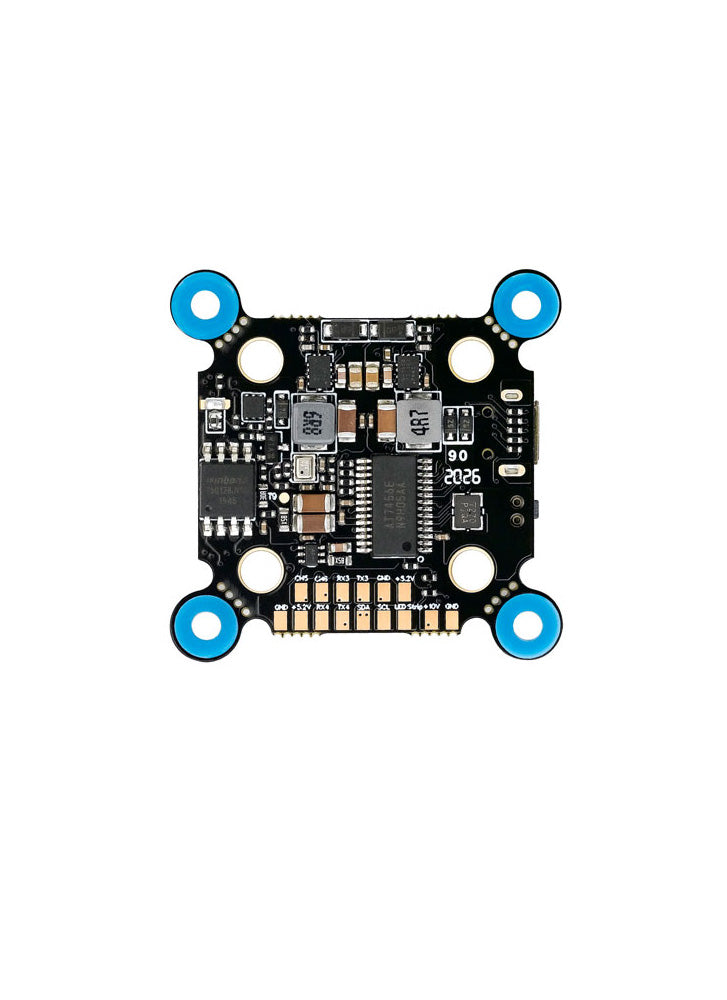

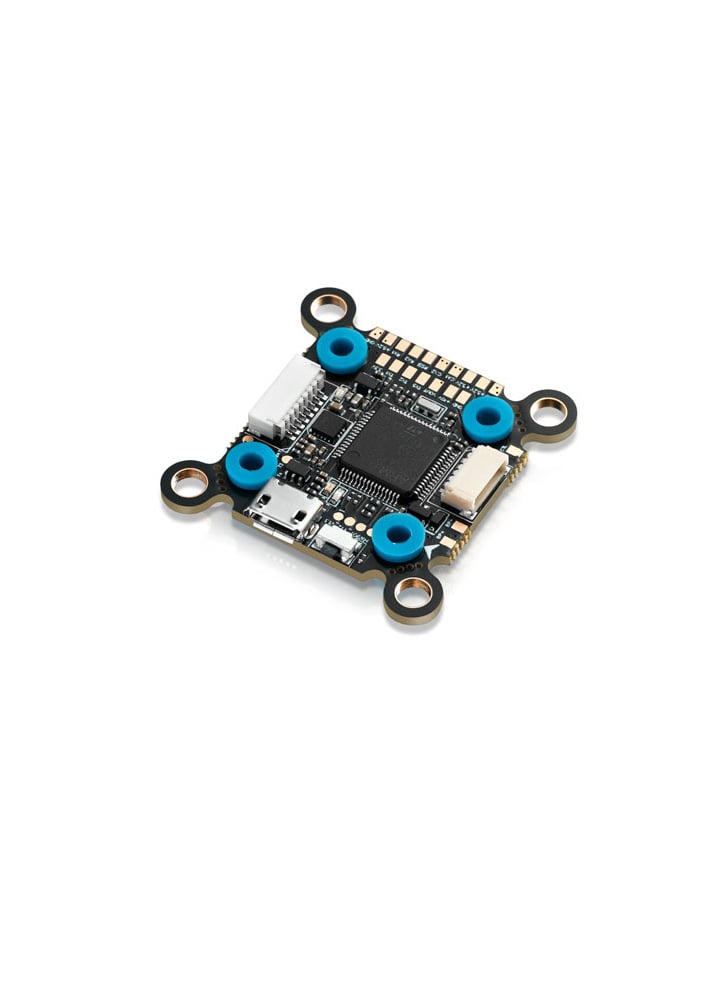

Hobbywing XRotor F7 Convertible Flight Controller
£49.90

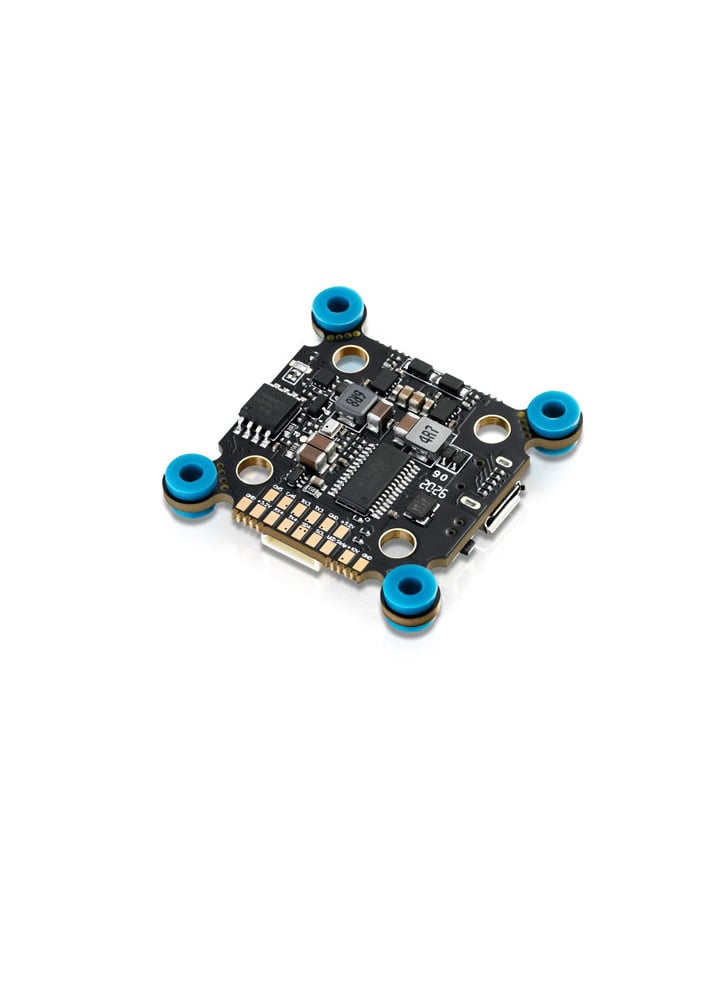

The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. This is Hobbywing’s first flight controller to implement a super fast F7 MCU and the MPU6500 gyro. It also now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system, allowing support for both analogue and DJI digital FPV video systems. As before, it supports other useful features such the BetaFlight OSD, voltage monitoring and on-board pit switch. You may notice the unusual shape of the FC, well it’s cleverly designed to include a mounting pattern that is convertible between 20×20 and 30.5×30.5 – simply snap off the corners to reduce the board to a 20×20 FC!
Features
- Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
- Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
- DJI image transmission system port equipped with corresponding flat cable
- Supports bidirectional DShot digital throttle communication.
- Unique installation design and shock absorption structure.
- On-board large capacity Flash memory chip.
- On-board 5V & 12V dual BEC circuit.
- On-board Pit Switch module.
Specifications
- Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
- Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
- Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
- Programming via: Betaflight/Cleanflight-configurator
- Firmware: HOBBYWING_XROTORF7CONV
- Voltage Monitoring: Supported
- Current Monitoring: Supported
- FC Programming: Supported
- External Buzzer: Supported
- BEC: 5V@1.5: 10V@1.5A
- LED Control: Supported
- USB Port: MicroUSB
- Size: 32x32mm
- OSD: Built-in
- Weight: 3.3g
In the box
- 1x Hobbywing XRotor F7 Convertible Flight Controller
- 1x Soft Mounting Grommets Set
- 1x Signal Cable
