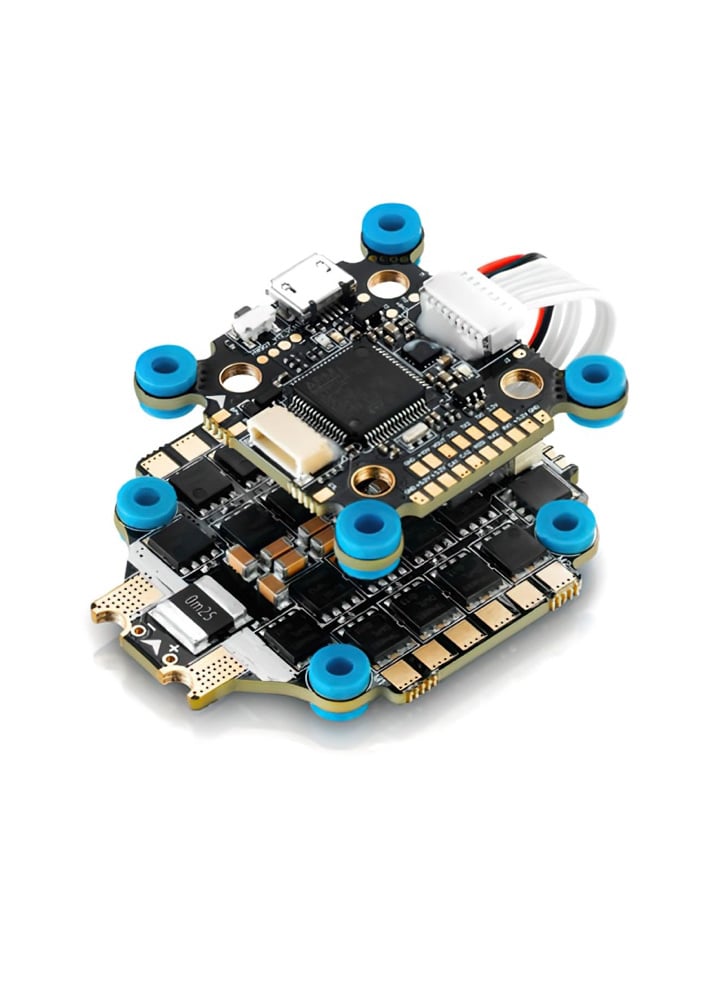

Hobbywing XRotor 3030 Combo Stack – F7 FC + 65A G2 4-in-1 ESC
£123.50
This 30×30 flight stack combines the XRotor F7 FC and XRotor Micro 65A G2 4in1 ESC .
XRotor F7 FC:
The XRotor F7 Convertible Flight Controller from Hobbywing continues to impress with its latest iteration. This is Hobbywing’s first flight controller to implement a super fast F7 MCU and the MPU6500 gyro. It also now comes with an all-new 5V & 12V dual BEC Circuit and a special interface for the DJI image transmission system, allowing support for both analogue and DJI digital FPV video systems. As before, it supports other useful features such the BetaFlight OSD, voltage monitoring and on-board pit switch.
XRotor 65A ESC:
Hobbywing’s XRotor 65A G2 4-in-1 ESC raises the bar for ESCs. This 4-in-1 ESC is equipped with the latest high-performance 32-bit ARM F4 microprocessor, increasing operating frequency to 120MHZ. In addition it supports 24K-128KHz PWM frequency, which can be dynamically adjusted adjusted for precision throttle control.
Features
- F7 FC
- Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity ICM20602 six-axis motion sensor.
- Supports BetaFlight, Cleanflight, Butterflight, Inva, and other mainstream FPV firmware.
- DJI image transmission system port equipped with corresponding flat cable
- Supports bidirectional DShot digital throttle communication.
- Unique installation design and shock absorption structure.
- On-board large capacity Flash memory chip.
- On-board 5V & 12V dual BEC circuit.
- On-board Pit Switch module.
- 65A 4-in-1 AM32 ESC
- AM32 open-source firmware for faster updates and feature expansion
- 32-bit ARM F4 MCU running at 120 MHz for ultra-fast processing
- Variable PWM refresh rate (48–96 kHz) with dynamic adjustment
- Built-in voltmeter for real-time amp and voltage monitoring
- Adjustable motor KV settings for precise throttle control
- Integrated 4 high-performance ESCs in one compact unit
- Shock-absorbing mounting holes reduce vibration impact
- Higher sustained power output for demanding flights
- Supports DShot 300/600 and traditional PWM signals
Specifications
- Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
- Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL
- Mounting Holes: Convertible 20x20mm / 30.5×30.5mm
- Programming via: Betaflight/Cleanflight-configurator
- Firmware: HOBBYWING_XROTORF7CONV
- Voltage Monitoring: Supported
- Current Monitoring: Supported
- FC Programming: Supported
- External Buzzer: Supported
- BEC: 5V@1.5: 10V@1.5A
- LED Control: Supported
- USB Port: MicroUSB
- Size: 32x32mm
- OSD: Built-in
- Weight: 3.3g
- Telemetry: Voltage & current monitoring via built-in voltmeter
- Mounting Holes: 30.5×30.5mm, M3 with shock-absorbing design
- PWM Frequency: 48–96 kHz (auto-adjusting)
- Burst Current: 80A (per channel, 10s)
- Continuous Current: 65A
- Firmware: AM32 (open-source)
- MCU: 32-bit ARM Cortex-M4 @ 120 MHz
- Voltage Input: 3–6S LiPo
- Throttle Signal: DShot 300/600, PWM
- Weight: ~15g (without wires)
- BEC Output: None
In the box
- 1x Hobbywing XRotor Micro Combo Stack – F7 FC + 65A G2 4-in-1 AM32 ESC
- 1x Soft Mounting Grommets Set
- 1x Signal Cable
