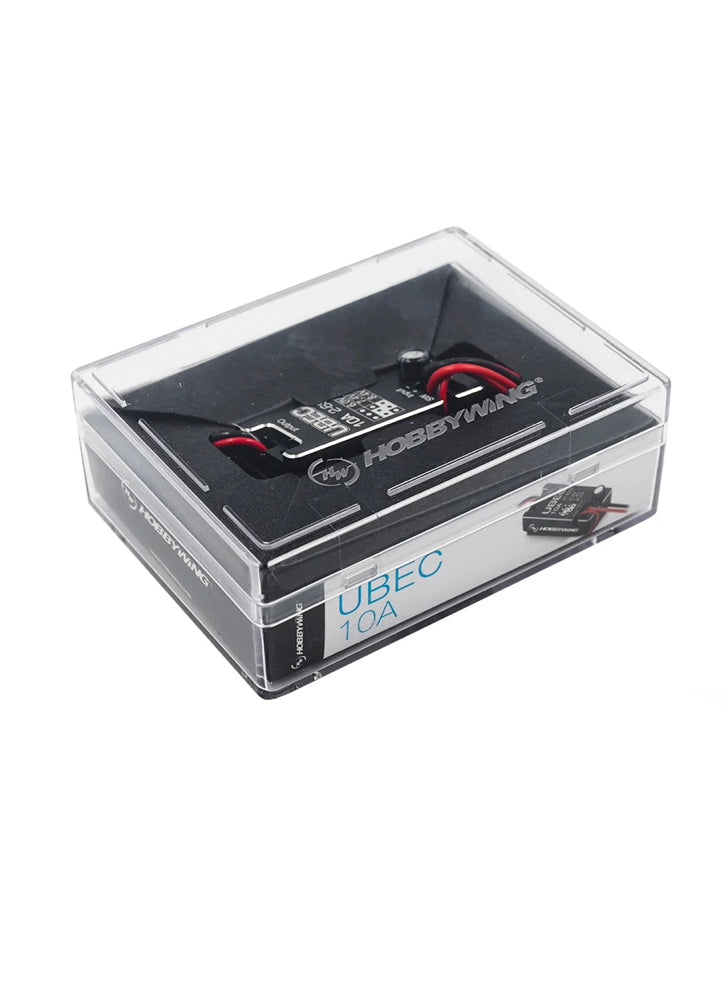

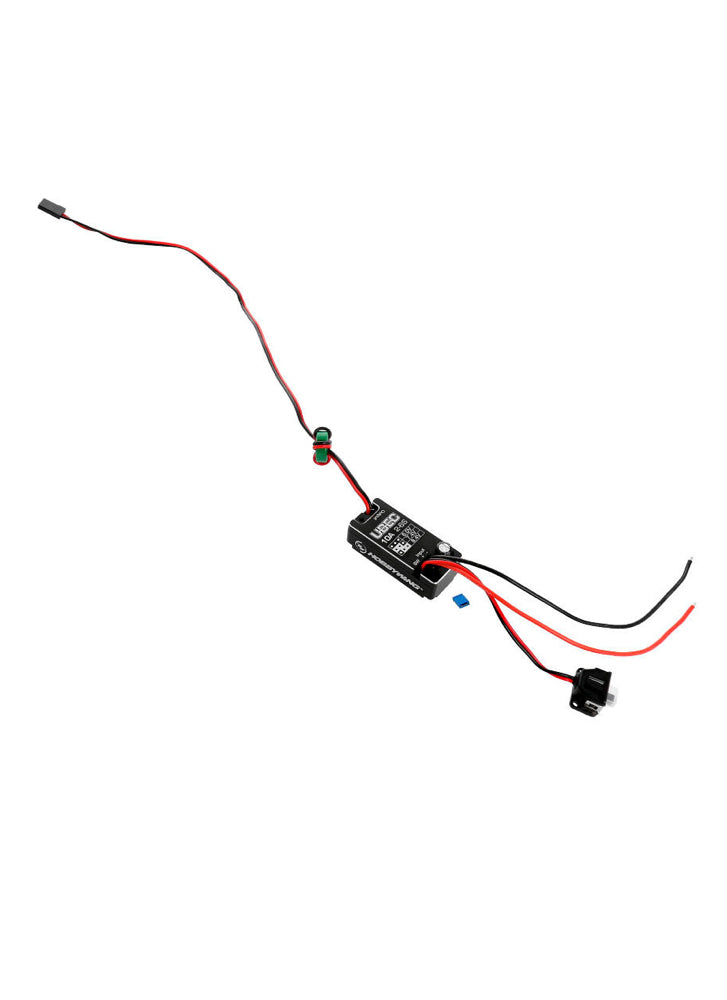

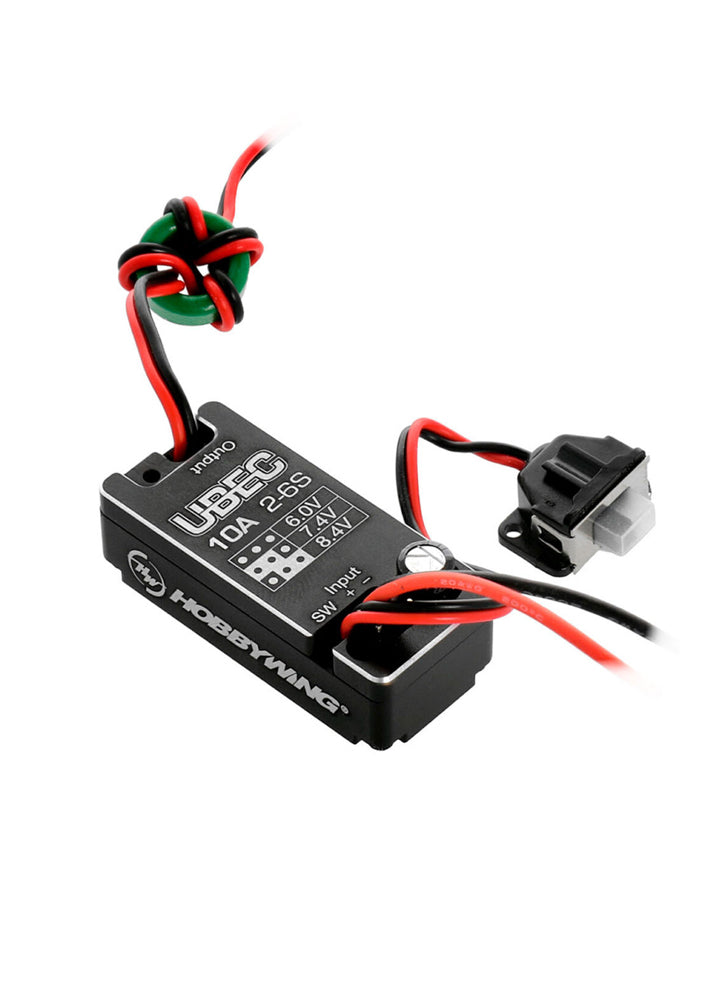

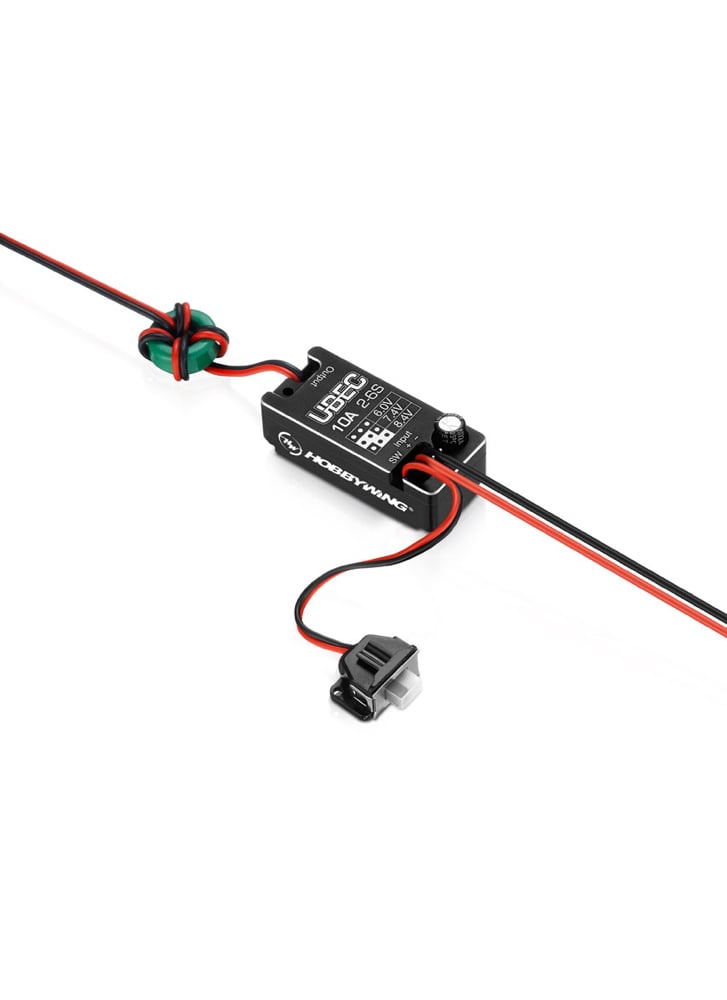

Hobbywing 10A 2-6S UBEC with 6.0V/7.4V/8.4V Output
£29.99
The UBEC is an external switching mode DC-DC regulator; it draws the DC voltage from 2-6S Lipo battery and drops it to a voltage level that is suitable for receivers and other electronic devices (6.0V-8.4V). It provides a very stable output current, rated at 10Amps / 15Amps burst.
The output voltage is programmable via a header pin jumper – 3 output voltages: 6.0V/7.4V/8.4V. It is also switchable: On/Off.
The UBEC is not only powerful, but also waterproof and dust proof (IP67), making it particularly suitable for RC cars.
Features
- Highly efficient DC-DC regulator chip for a transmission efficiency of over 90%.
- An all-metal housing design helps conduct heat and reduces electromagnetic interference.
- Adjustable UBEC output voltage (6.0V / 7.4V / 8.4V) applicable for servos with different voltages.
- The continuous current of UBEC is up to 10A and max. 15A and can thus be used for various electrical devices (e.g. car lights, winches, windshield wipers, etc.).
- Excellent waterproof and dustproof design with IP67 rating.
- Multiple protection functions: overcurrent protection, output short circuit protection, overheating protection, safe and reliable.
- External switch enables the UBEC to be switched on / off easily.
- LED display to show the status of the UBEC.
Specifications
- Input voltage: 2-6S lithium batteries
- Output voltage: 6.0 / 7.4 / 8.4 V (3 options adjustable)
- Output current: Continuous 10A / Instantaneous 15A
- Measurement: 45x20x16.2mm
- Weight: 34g (including wires
