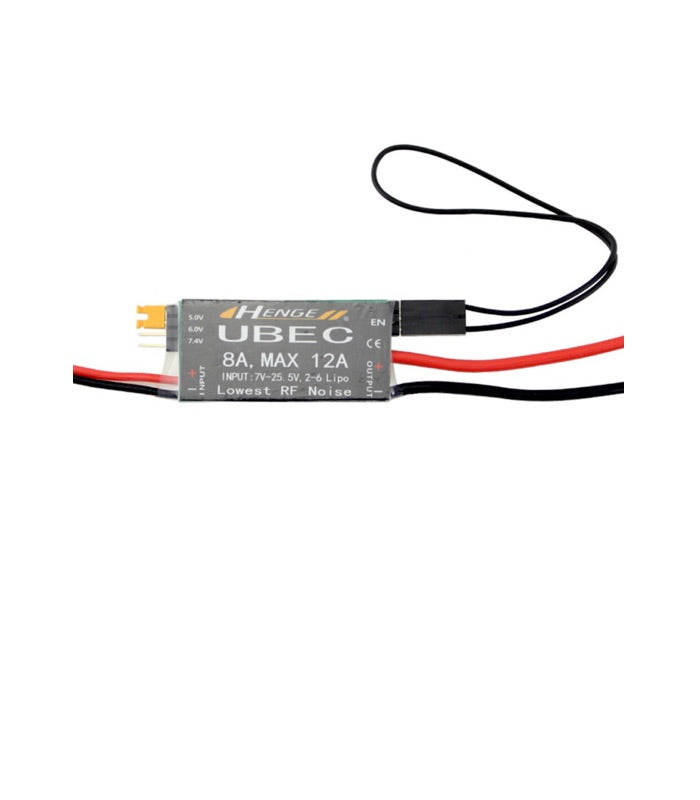

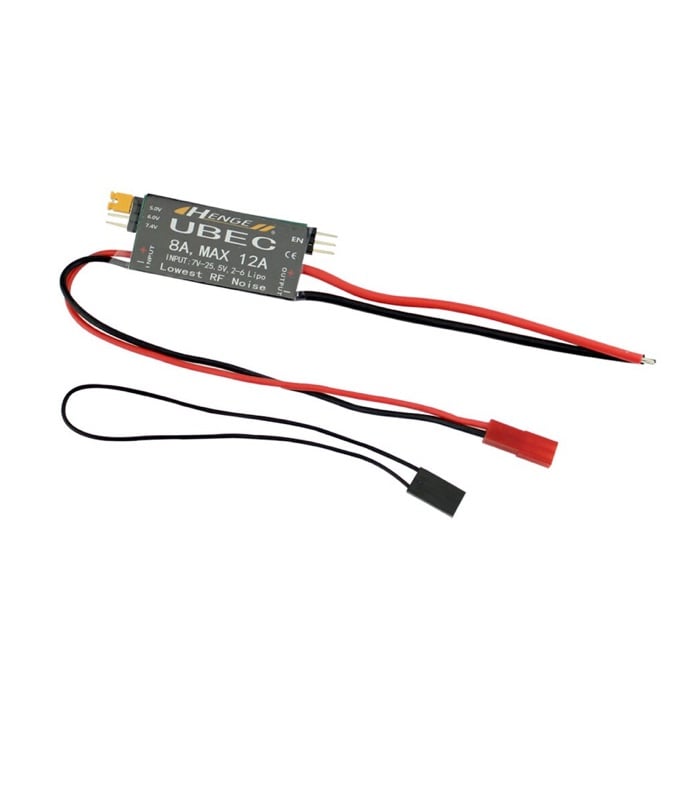

Henge 8A 2-6S Input UBEC with Switchable 5V/6V/7.4V Output
£15.90
This BEC is a good choice for high current applications. It can support 8amps continuous and a 12amp burst current. It is compatible with a 7V‐25.5V input voltage and offers a choice of step-down voltages: 5V/6V/7.4V. There is also a jumper plug, which can be used to enable / disable the power output.
Features
- Switchable 5V/6V/7.4V Output (selectable via jumper)
- Designed with an advanced switching power supply control chip with overcurrent and overheat protection function
- Max efficiency of the chip is up to 93%
- Provides large output current, the continuous output current is 8A, and the burst output current is 12A
- Designed with a high quality switching power supply conversion chip, significantly reduce the electromagnetic interference
- Wide input voltage range, works properly from 7V‐25.5V
- Shows the working status with an indicator (LED), lights when the output is in normal range
Specifications
- Output: 5V/8A, 6V/8A or 7.4V/8A (Changeable with an jumper)
- Input:7‐25.5V (2 to 6 cells Lipo battery pack, 6 to 16 cells NIMH battery pack)
- Continuous output current:8A
- Burst output current:12A (≤15 Sec)
- Ripple:<35mVp‐p(@8A/12V)
- Size: 45x22x7.5mm
- Weight: 16g
