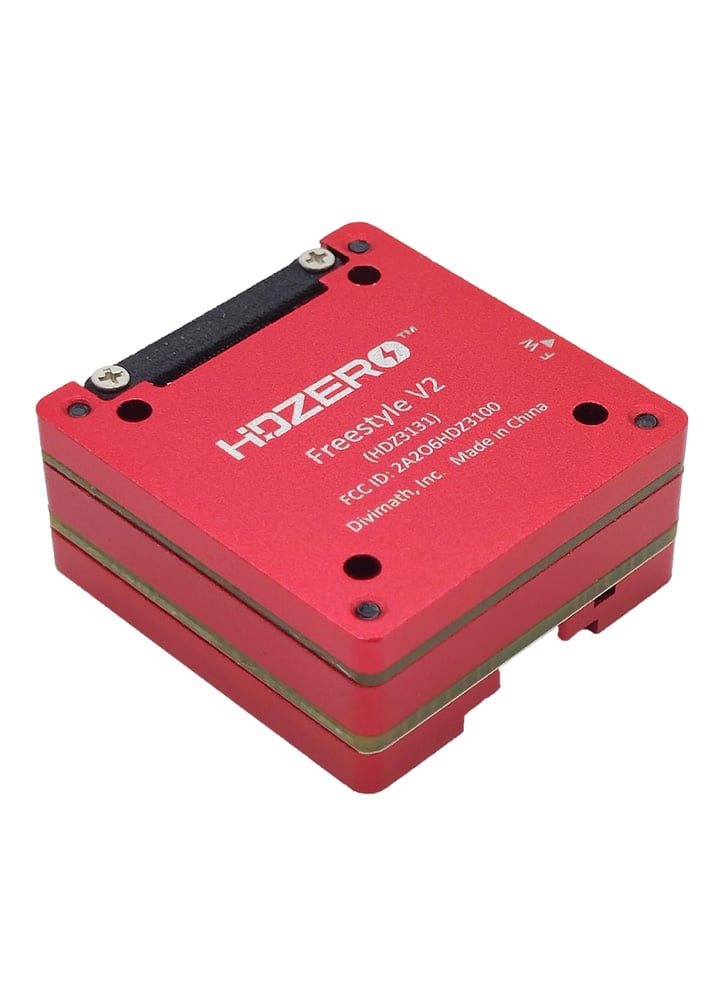

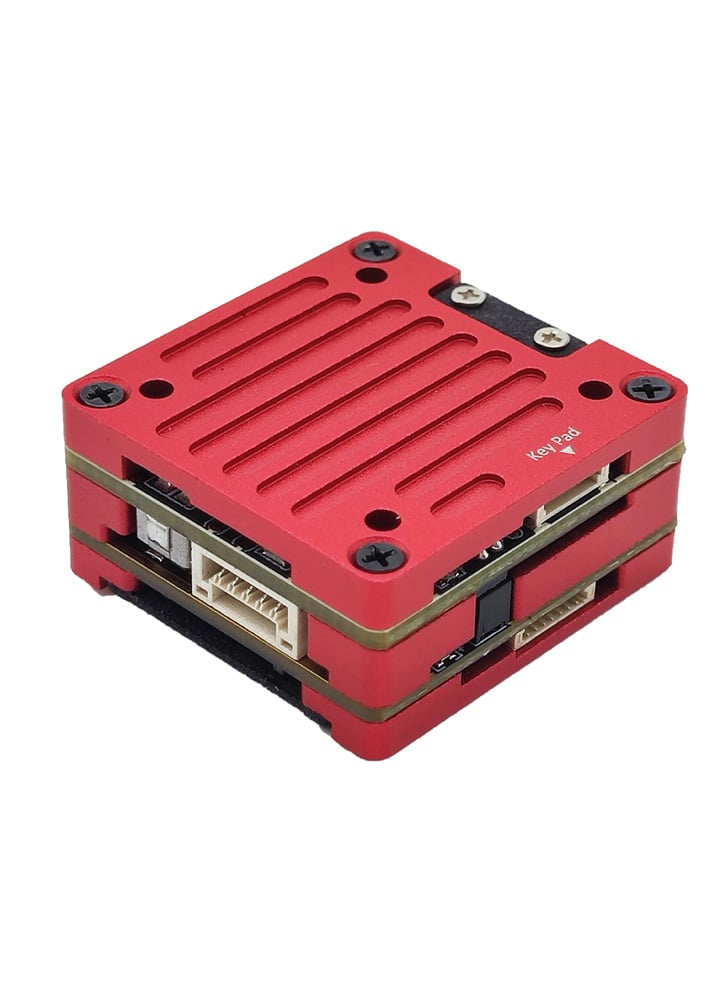

HDZero Freestyle V2 Digital HD Video Transmitter
£97.80
VTX Only – No Antenna / Camera included
The HDZero Freestyle V2 VTX Kit is a 2nd generation 5.8GHz digital video transmitter kit with a camera, VTX, and antenna that can fit most of the 3.5-inch and 5-inch drones (now using 20×20 form factor). The CNC case protects all the sockets well, providing durability, RF shielding, and improved signal integrity. A wire harness is included for solderless connection for power and MSP UART port. The included retention bar and screws secure the antenna and MIPI cable. The VTX supports 720p60,1080p30, 540p60, and 540p90 video modes, and has a maximum 1W RF output at the R1 channel if unlocked or authorised with a license or approval.
Features
- CNC case for socket protection, durability, RF shielding, and improved signal integrity
- Capable of up to 1W RF output on R1 channel with proper licensing or approval
- Included wire harness for solderless power and MSP UART port connection
- Supports multiple video modes: 720p60, 1080p30, 540p60, and 540p90
- Secured antenna and MIPI cable with retention bar and screws
- 2nd generation 5.8GHz digital video transmitter
- Compatible with 3.5-inch and 5-inch drones
- The VTX with without antenna. Requires an U.FL RHCP antenna – HERE .
NOTE: An antenna must be installed properly before power is applied to the transmitter. Powering on without a correctly installed antenna may easily burn the transmitter. Power spikes from other components such as ESC’s can also damage the transmitter if powered directly from battery voltage. Such damage will not be covered under warranty.
Specifications
- Manufacturer: Divimath, Inc
- Model: HDZero Freestyle V2 VTX
- Weight: 22.3g
- Dimensions: 29x30x14mm
- Mounting Pattern: 20x20mm M2 holes
- Operating Frequency: 5.725-5.850GHz
- Transmitter Power: 25mW, 200mW (Out of the box), 500mW, 1W if with HAM license
- Antenna Interface: Secured U.FL
- Video In Secured: Secured MIPI
- SmartAudio: Yes
- MSP Canvas Mode: Yes
- Input Power: 7-25V
- Operating Temperature: 32˚F-104 ˚F (0˚-40˚C)
- Power Consumption: 6-15W
In the box
- 1x Freestyle V2 VTX
- 1x Power Cable
- 1x SA Cable
- 1x Plastic bar for Mipi Cable with 3 x screws (M1.4 x 2mm).
- 1x Plastic bar for U.FL with 3 x screws (M1.4 x 8mm)
- 1x Double Sided Tape (29 x 30 x 1mm)
