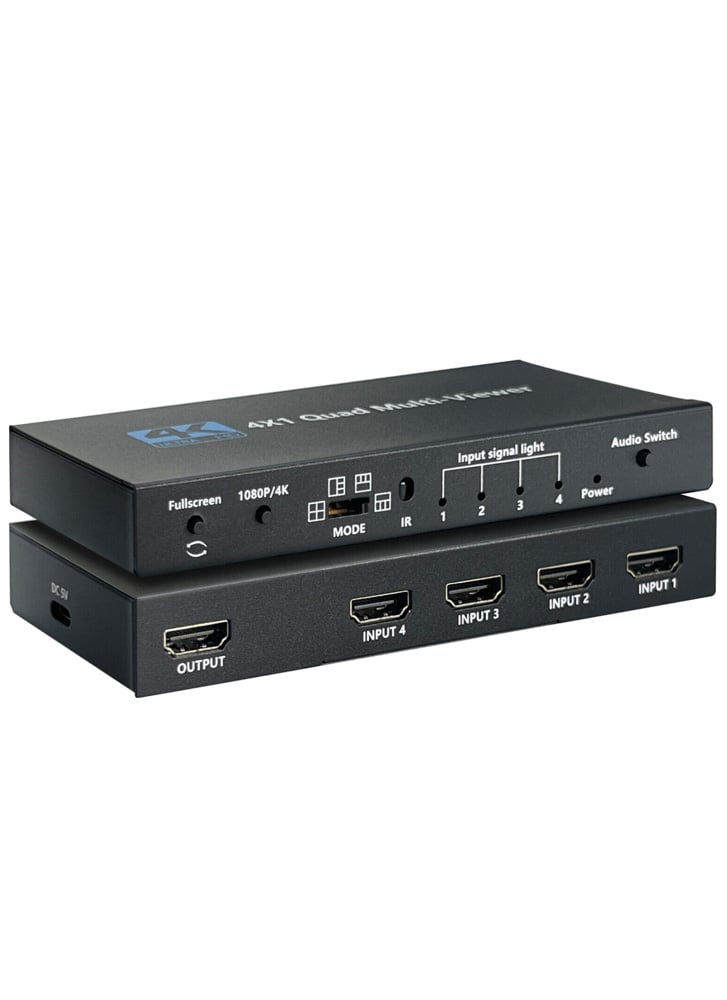

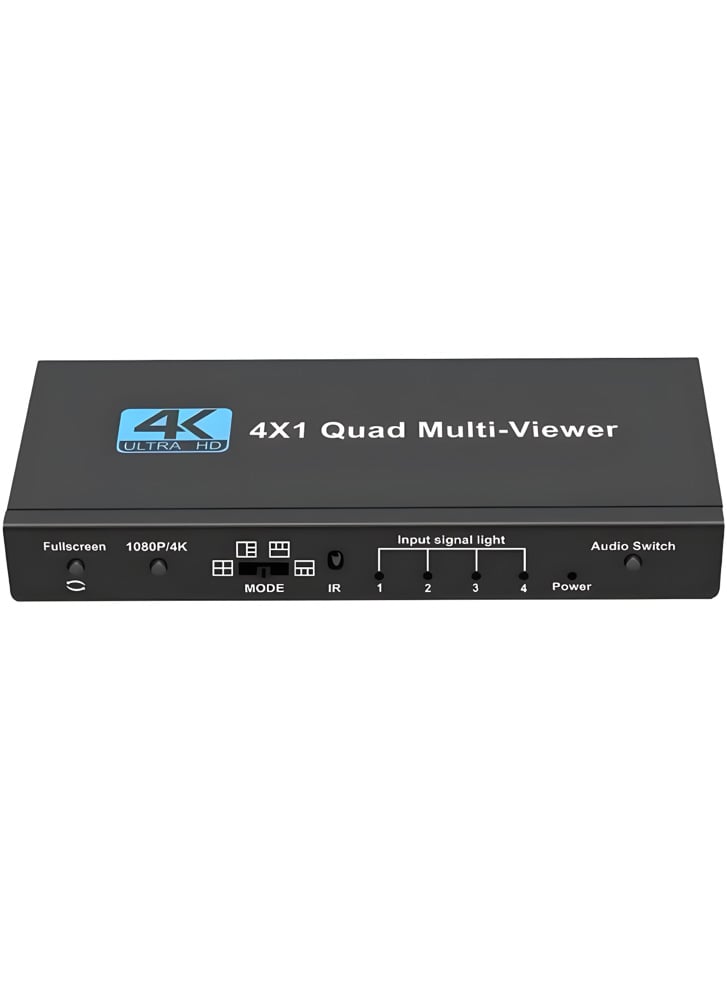

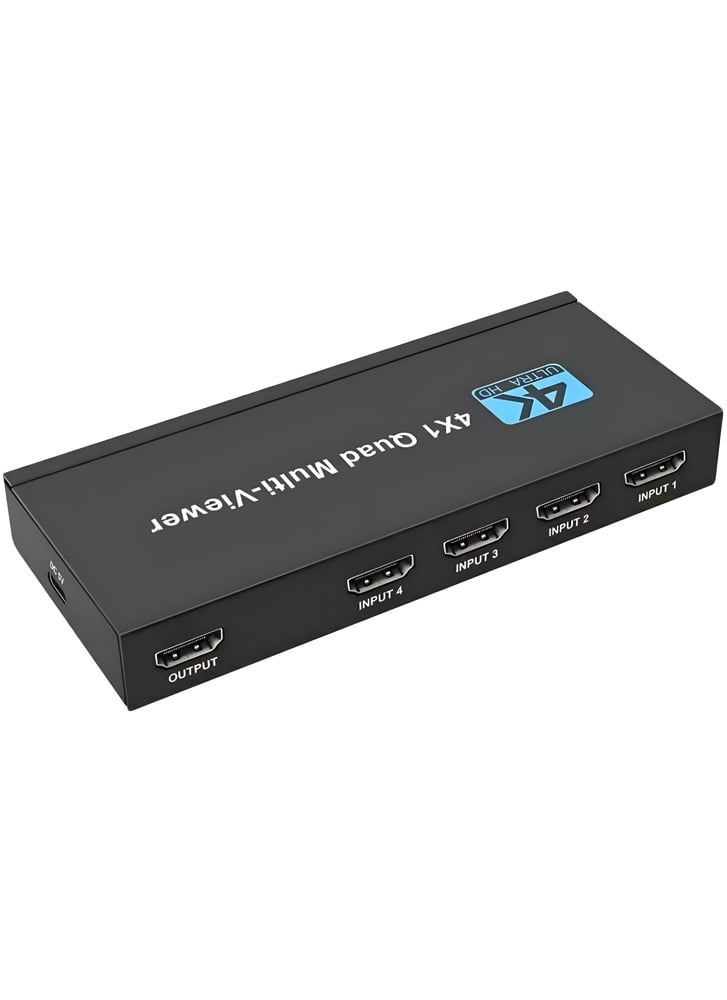

HDMI Quad-Screen 4×1 Split Screen MultiViewer with PIP for FPV Racing
£24.99
Connect up to four HDMI audio/video sources and display them simultaneously on a single HDMI TV, monitor, or projector with this versatile smart box.

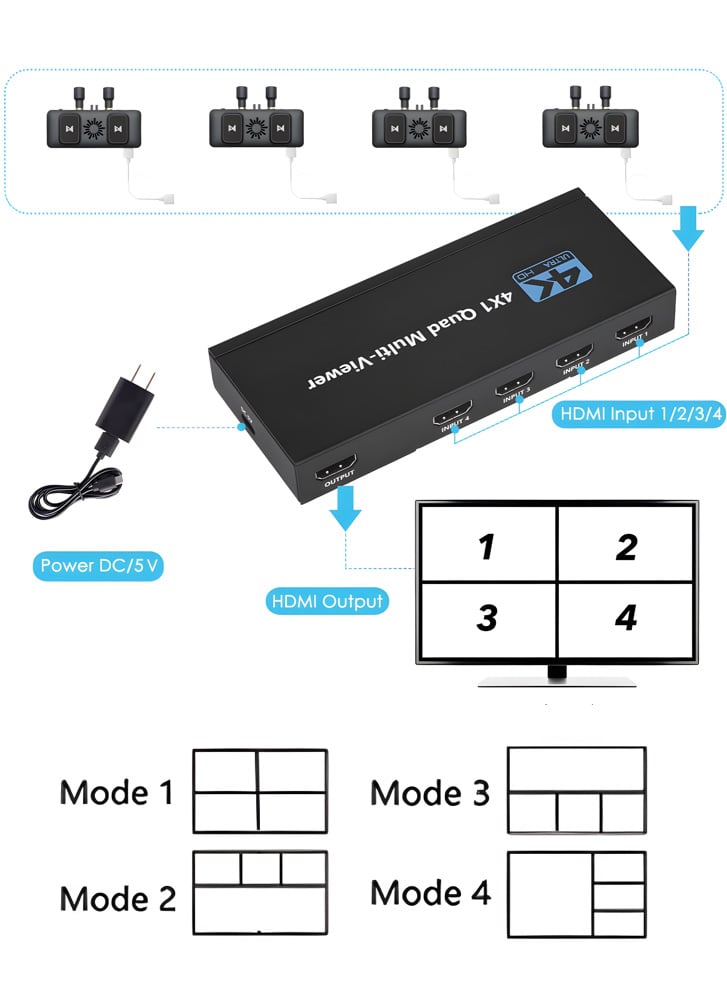

Ideal for home video setups, it can be used to connect devices like computers, game consoles, and DVD players to a shared display. But for FPV drone pilots, there’s an exciting twist—why not connect up four HDMI video receivers, for example the Walksnail VRX or the RC832 HD receiver and use the split-screen feature to host your own drone racing event?
It offers 5 display modes, 4 PIP (picture-in-picture) layouts and a full-screen cycling option. Control your display with ease via the push button on the device or the included remote. The viewer supports 1080P/60Hz and 4K/30Hz input, and even features a video upscaling function that enhances 1080P input to 3840×2160@30Hz for sharper visuals.
The viewers requires a 5V (2A) power supply via USB-C. A UK plug power adapter and USB-C cable is included.
Specifications

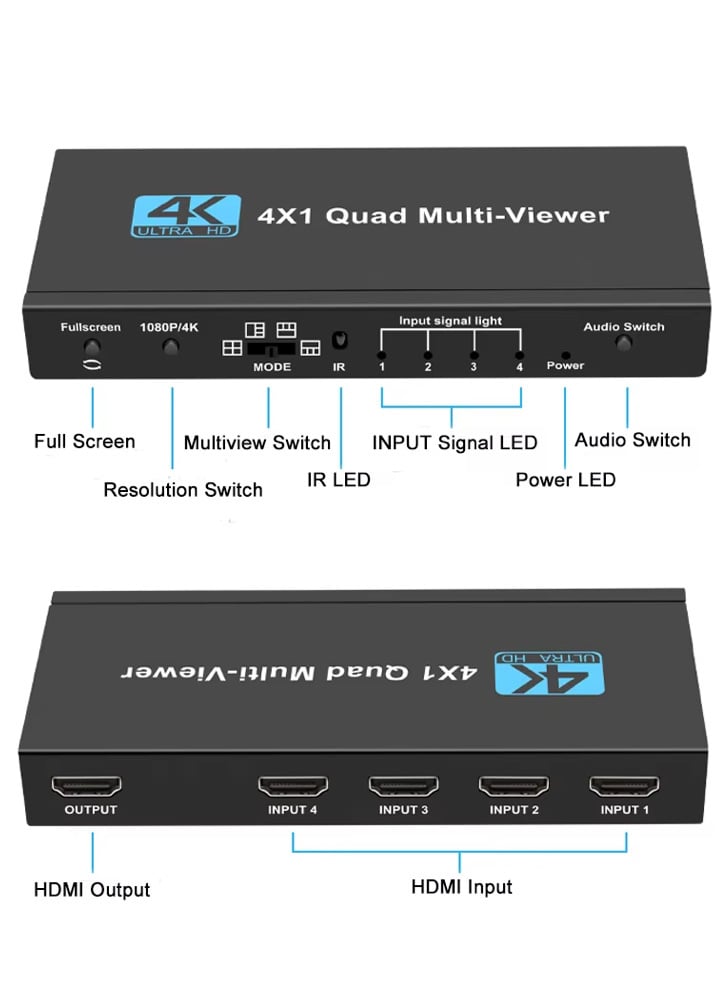

- Supports 4 HDMI input, 1 HDMI output
- Support 4 HDMI signal screen segmentation
- Switch between 1080P/60Hz and 4K/30Hz, 4K30Hz (RGB) and backward compatible.
- Support HDMI1.4, HDCP1.4 and backward compatible.
- Support IR control
- Support HDMI resolution: 24/50/60fs/4K30HZ/1080P/1080i/720p/576p/576i/480p/480i
- Support video color format: 24bit/30bit/36bit.
- Support audio input format: DTS-HD/Dolby-realHD/LPCM7.1/DTS/Dolby-AC3/DSD
- Support audio output format: LPCM,PCM2 Max bandwidth: 330Mhz
- Max bandrate: 10.2Gbps
- Input/Output TMDS signal:0.5~1.5V p-p(TTL)
- Input/Output DDC signal: 5Volts p-p(TTL)
- Input cable distance: <15mAWG24 HDMI standard cable
- Output cable distance: ≤24mAWG24 HDMI standard cable
- Max working current: 5V/0.6A
- Operating Temperature range: (-15~+55°C)
- Dimension (L x W x H): 148x63x23mm
- Weight: 206g
In the box
- 1x HDMI 4K Multi-viewer
- 1x Remote control(no battery)
- 1x USB power cable
- 1x UK Power Supply
- 1x User guide
