Happymodel Unibell EX0802 19000kv Brushless Motor

£7.99

The Happymodel Unibell EX0802 is one of the lightest 0802 brushless motors on the market, weighing in at only 1.7g. It also boasts good efficiency. The motor is used by the Happymodel Mobula6 HD (JST Plug Version), and the Moblite6 / Moblite7 (Direct Solder Version). It would also be a good choice for other 65x and 75x class brushless whoops.

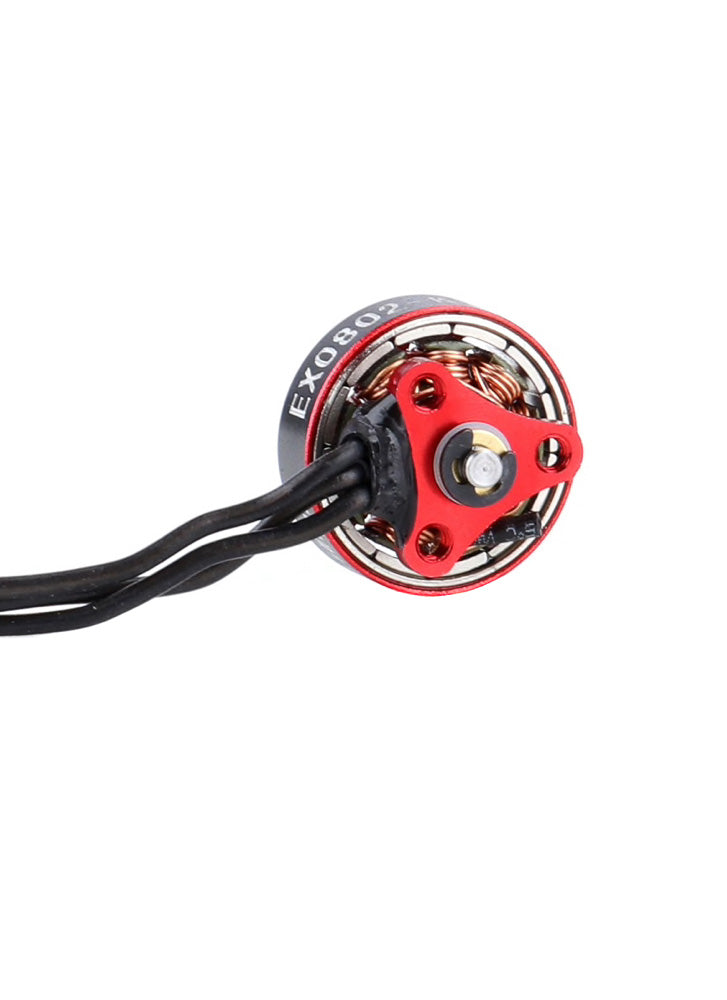

For the plug version, you can purchase in either CW or CCW – a red dot on the white plug indicates the CW version.

Features

• Ultralight, only 1.7g
• Very efficient
• Unibell design, a strong motor
• Double E-clip design to secure motor bell
• Good Dynamic balance
• Compatible with 65-85mm Brushless Whoops
• 1mm shaft

Specifications

• Input Voltage: 1S
• Shaft Diameter: 1.0m
• Configuration: 9N12P
• Stator Diameter: 8mm
• Stator Length: 2mm
• Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
• Terminals: JST1.25mm
• Weight: 1.7g

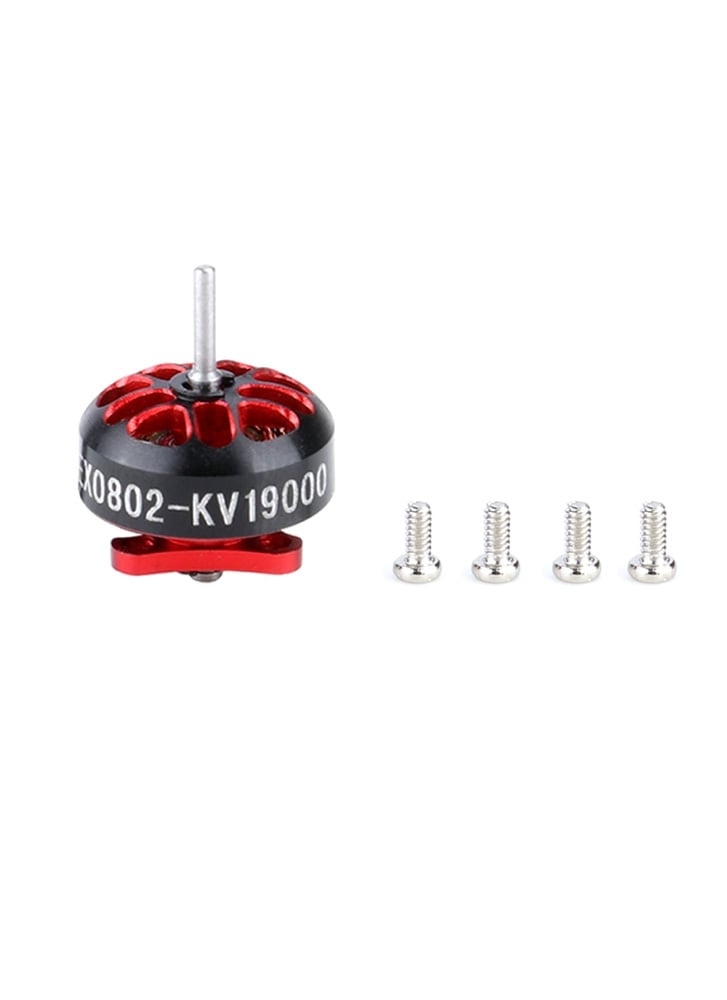

In the box

• 1 x Happymodel Unibell EX0802 Motor – 19000KV
• 1 x Screw Set
