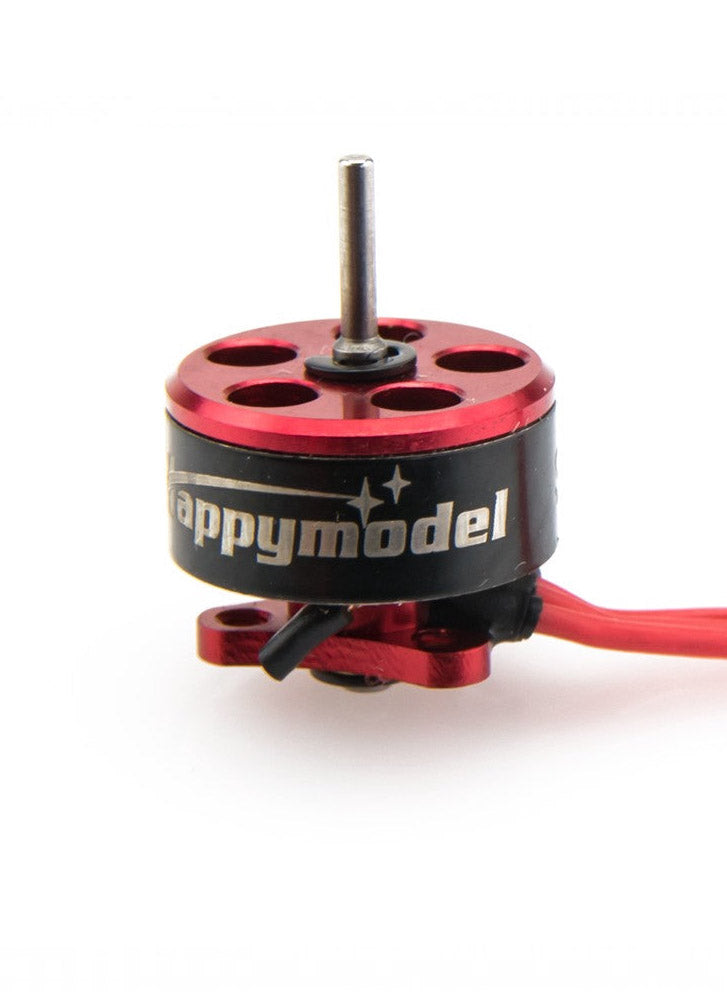

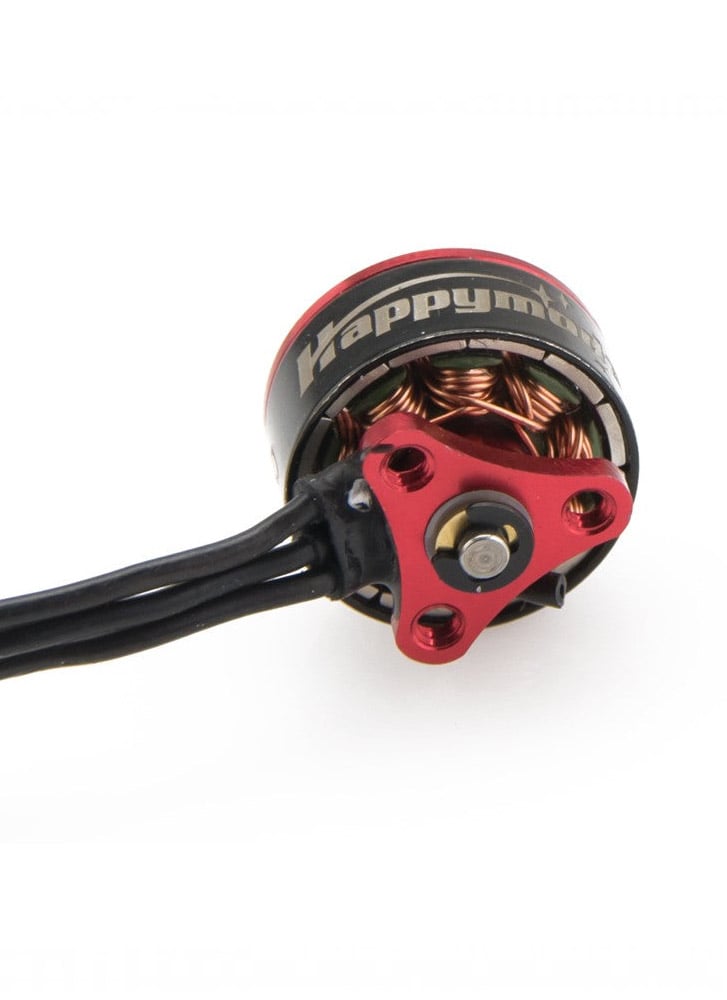

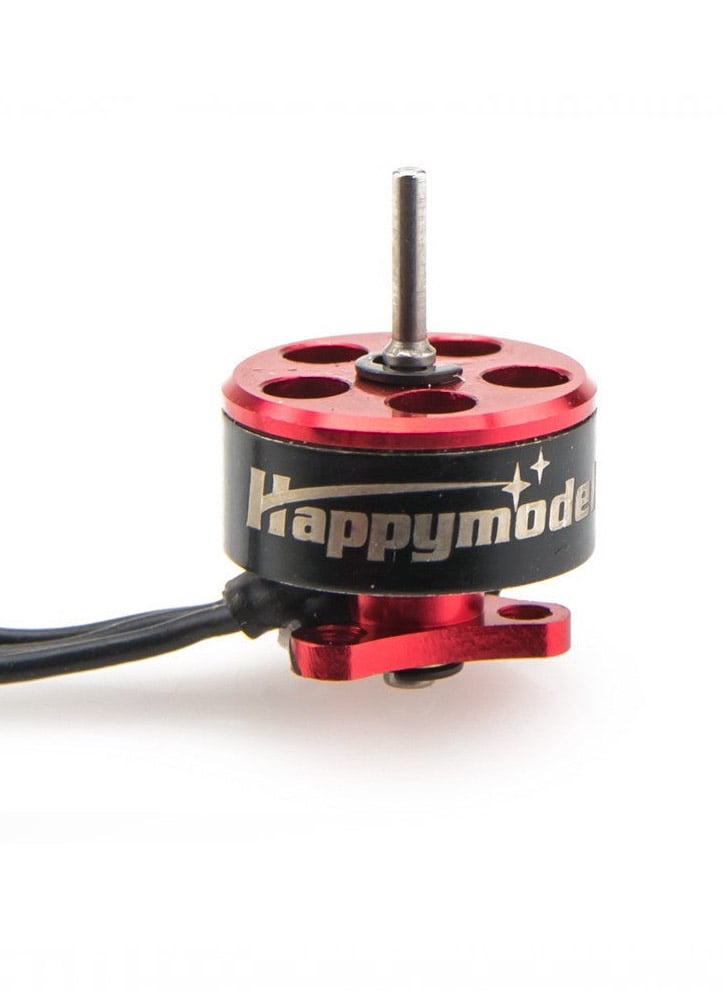

Happymodel SE0802 19000KV / 25000KV Motor for Mobula6

£7.50

This motor is tiny and generates good thrust. The motor is used by the Happymodel Mobula6 drone, the 19000KV version is for the Regular Edition and the 25000KV version for the Race Edition. It could also be used for other 65x and 75x class brushless whoops and custom builds.

Features

• Super tiny only 1.9g
• Double E-clip design
• Good dynamic balance
• Rotation:​
• CW: Orange Wire
• CCW: Black Wire

Specifications

• KV: 19000KV / 25000Kv (option)
• Shaft Diameter: 1.0mm
• Configuration: 9N12P
• Stator Diameter: 8mm
• Stator Length: 2mm
• Motor Dimension(Dia.*Len): Φ10.5mm*14.9mm
• Terminals: JST1.25mm
• No.of Cells(Lipo): 19000KV 1-2S / 25000KV 1S
• Wire length(include connector): 40mm
• Weight: 1.9g
