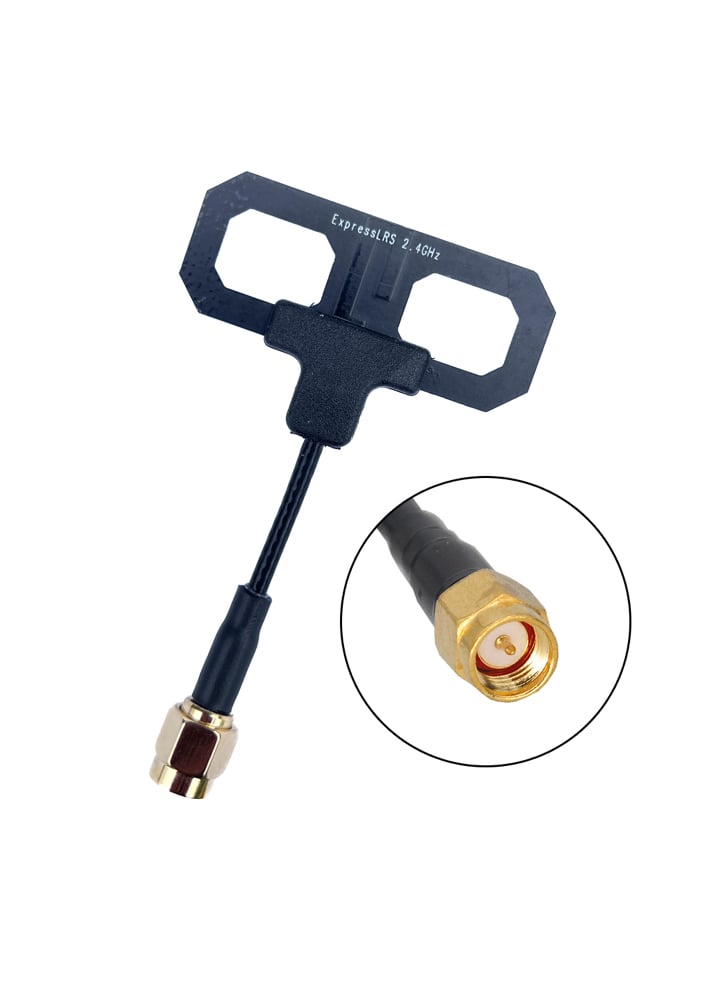

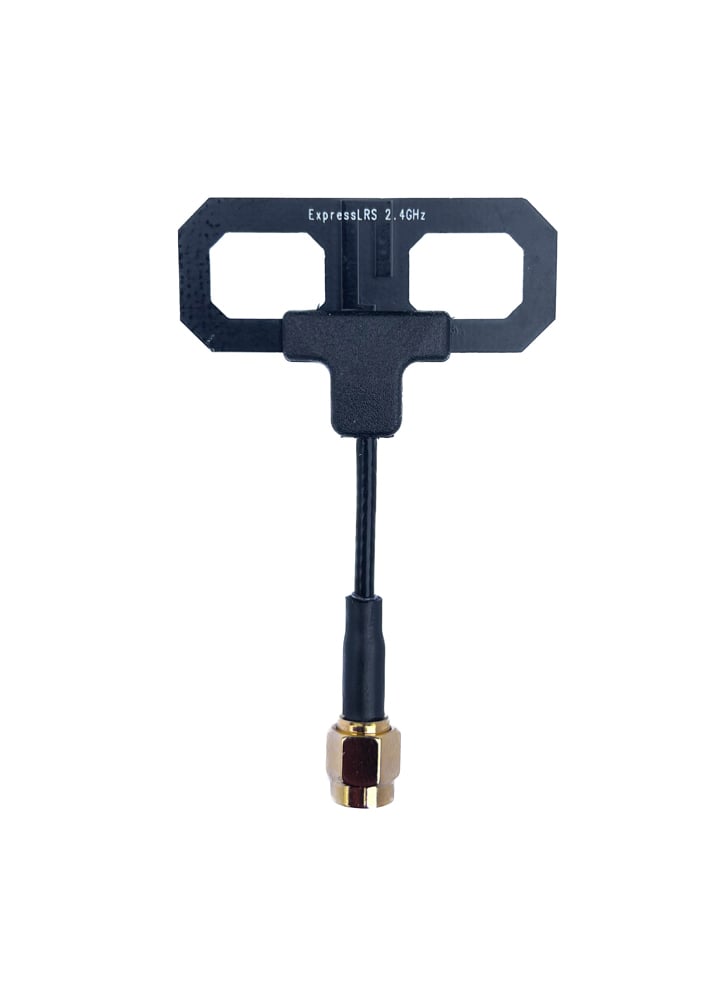

Happymodel ExpressLRS ELRS 2.4G Moxon Antenna

£8.50

ELRS 2.4GHz Moxon antenna with SMA connector from HappyModel. An idea match for their Slim Pro TX Module / ES24TX Pro Micro Module . The Moxon antenna is directional antenna with a gain of 4.12dbi to the front.

Specifications

• Frequency (MHz): 2400.0
• Efficiency (dBi): -2.94
• Gain (dBi): 4.18
• Efficiency (%): 50.77
• Directivity (dB): 7.12
• Peak Gain Position (Theta): 0.00
• Peak Gain Position (Phi): 270.00
• Weight(gram): 5.83
• Length(mm)xwidth(mm): 69×45
• Plug type: SMA
