Happymodel Diamond VTX 5.8GHz 25mw~200mw VTX with DVR
£18.50

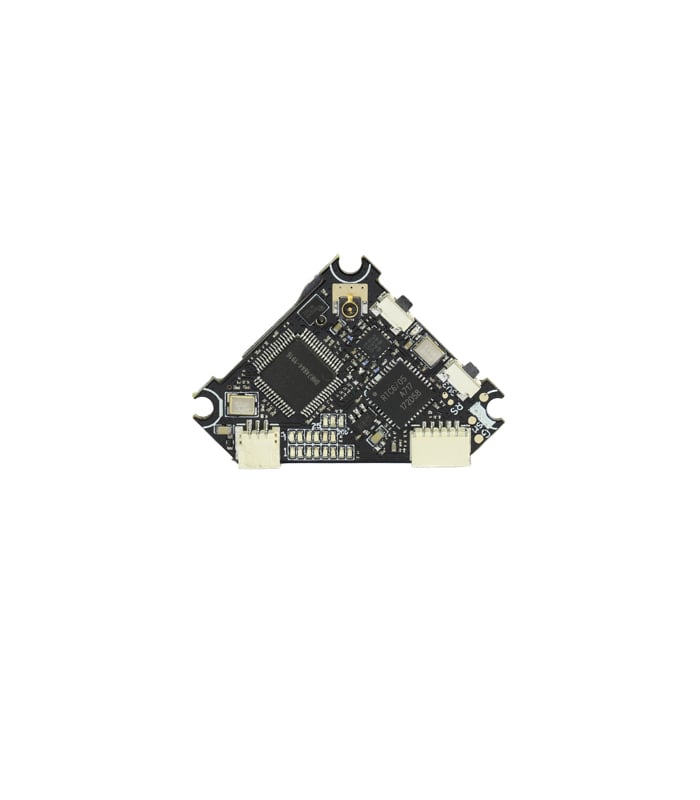

The Happymodel Diamond VTX is designed to fit in most tiny whoop style frames and packs in both a 5.8Ghz video transmitter and DVR all in one board, so now even the tiniest of Tiny Whoops can record video.

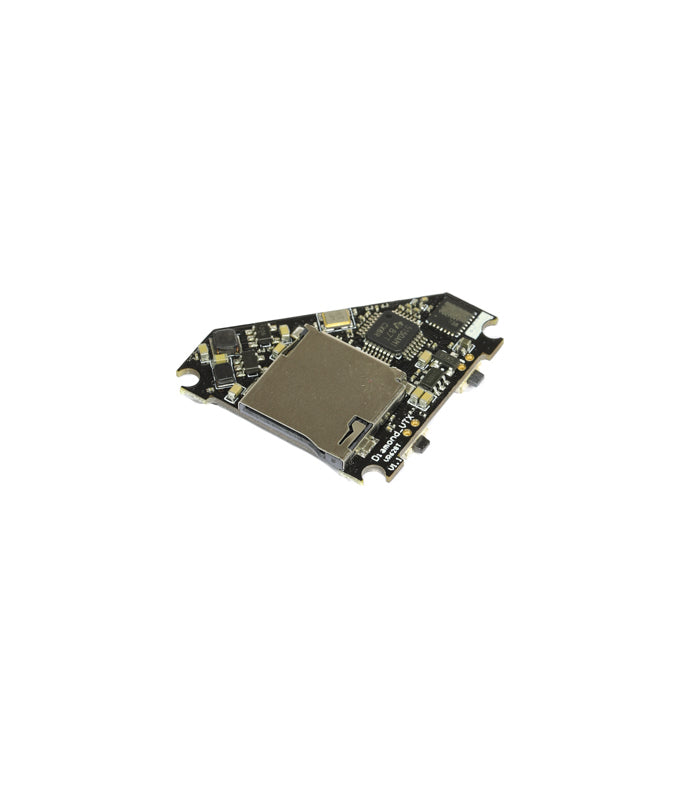

The VTX has an adjustable power output from 25 – 200mW so you’ll get a decent range. It is also SmartAudio ready, hook it up to your FC and you’ll be able to change channel and power output remotely on your RC. The DVR function lets you install a micro SD card into it so that you can easily record FPV footage directly without signal interferance or any extra latency.
Features
- Easy upgrade Mobula7 / Eachine Trashcan, direct replacment for stock VTX.
- Small size, light only 3gram and easy to mount in a regular whoop
- Built-in DVR(Video size 1280×720)
- Button to Start/Stop Video recorder
- Smartaudio ready / Pit Mode
Note: Auto-save when Power off is not support, please remember to press the stop button after landing
Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Specifications
- Output power: 25~200mw switchable
- Frequency: 5.8GHz 5bands 40 channels With Raceband
- Input voltage: 3.3V 5.5V
- Current consumption: 250mA~510mA(type)
- Antenna: RG178 antenna
- U.FL interface
- Smartaudio ready
- Weight: 3g without antenna
- Video Output Size: VGA (640×480)
- Video Output format: NTSC
- Record video size : 1280×720 @25FPS
- TF Card support: Max.32G
- Interface: JST SH1.0 3pin for Camera JST SH1.0 5pin for Connect with F3/F4 Flight controller
- JST SH1.0 3pin for Camera
- JST SH1.0 5pin for Connect with F3/F4 Flight controller

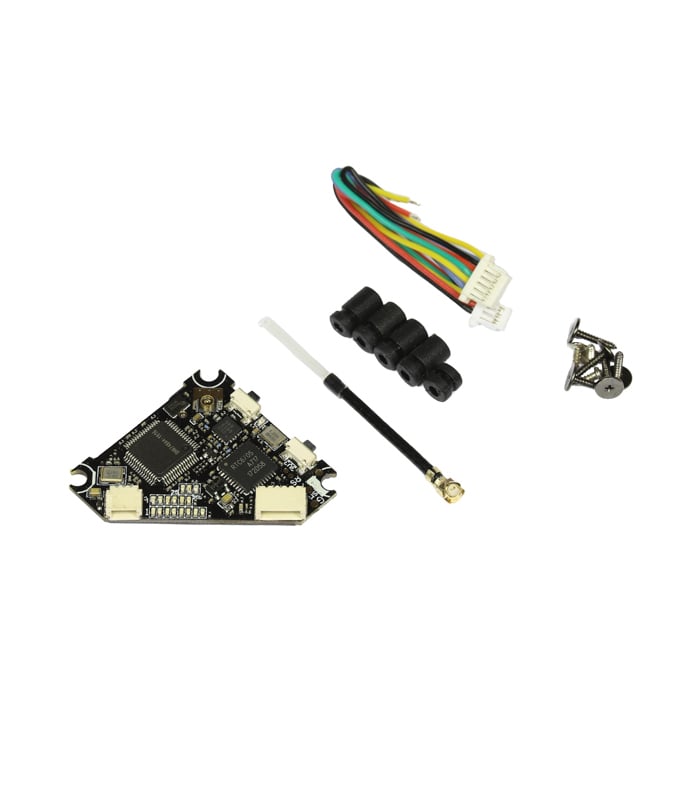

In the box
- 1 x Diamond VTX
- 1x U.FL Dipole Antenna
- 1 x JST SH1.0 3Pin wire for camera
- 1 x JST SH1.0 5Pin wire for flight controller
