Happymodel Diamond F4 5-in-1 AIO Whoop Flight Controller
£42.90
This 5-in-1, ultra-light flight controller is inspired by Happymodel’s Official Pilot – Angry Don FPV !

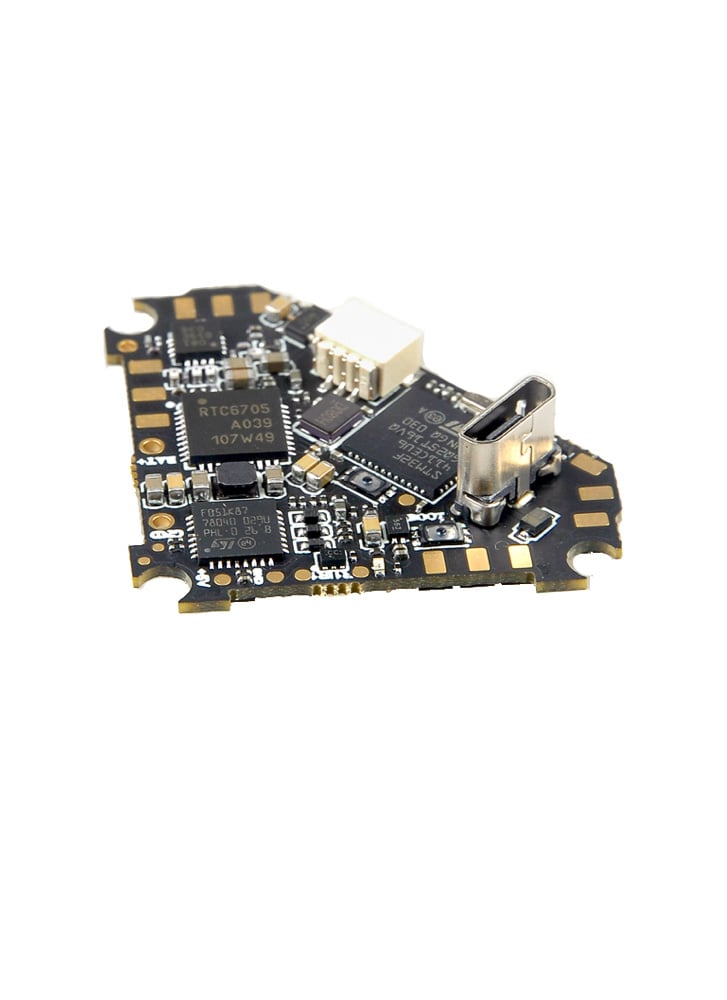

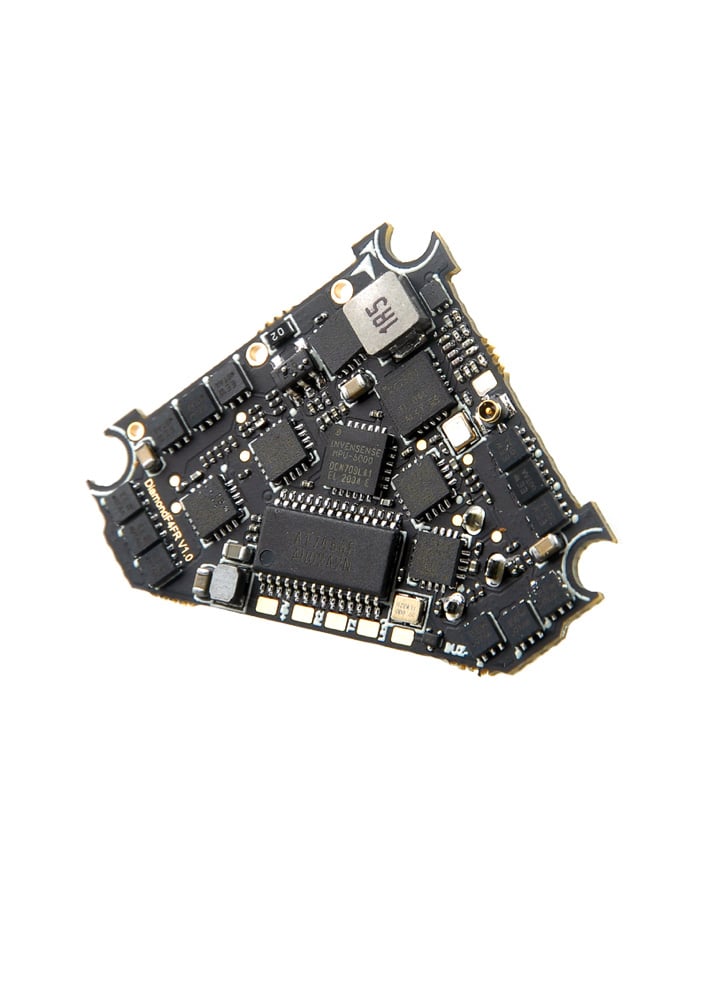

The Happymodel Diamond F4 isn’t just a simple flight controller, it’s simply everything. It has a built-in 25-200mW FPV VTX, ESCs, BetaFlight OSD, and radio receiver, all on one triangle-shaped whoop board – simply amazing! Building a Tiny Whoop has never been easier.
The 3 corners fit 25.5mm whoop mounting spacing. There is a plug for the camera input, the motor wires are to be soldered. There is a connection for a buzzer and RGB LED.
This is the AIO board included on the ultra-light Happymodel Moblite6/7 whoops.
Features
- Diamond Mounting Pattern – 22.2×22.2×32.7mm
- Built-in 5V/1A BEC
- Built-in SPI Frsky Receiver
- Built-in Betaflight OSD (SPI Control)
- Built-in 5A Blheli_S 4in1 ESC, Dshot600 ready
- Built-in 25-200mW 5.8GHz VTX
Specifications
- (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
- (Flysky SPI RX version)DiamondF4 FS FC Firmware target: CrazybeeF4FS
- MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
- Sensor: MPU-6000 (SPI connection)
- Original whoop size compatible
- Power supply: 1S battery input (DC 2.9V-4.35V)
- Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
- Built-in Betaflight OSD(SPI Control)
- Built-in 5.8G VTX
- Built-in SPI Frsky/Flysky receiver
- Built-in 5V 1A BEC
- MCU upgraded to EFM8BB21
- Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
- Support BLHeliSuite programmable
- Factory firmware: O_H_5_REV16_8.HEX
- Default protocol: DSHOT600
- SPI BUS receiver Frsky D8 compatible
- Compatible Non-EU transmitter D8 model Channels: 8ch
- Failsafe support
- No ground interference (Transmitter and receiver 1 m from the ground): 200m~300m
- SPI BUS receiver
- Protocol: AFHDS and AFHDS-2A Switchable
- Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
- No ground interference (Transmitter and receiver 1 m from the ground): 200m~300m
- Output power: 25mw~200mw switchable
- Frequency: 40CH
- Input voltage: 3.3V 5.5V
- Current consumption: 300mA(type)
- Frequency: 5.8GHz – Smart audio ready
In the box
- 1x HappyModel DiamondF4 FR AIO 5in1 Flight Controller – SPI Frsky
- 2x Connecting Wire
- 4x Damping Balls
- 4x Screws
