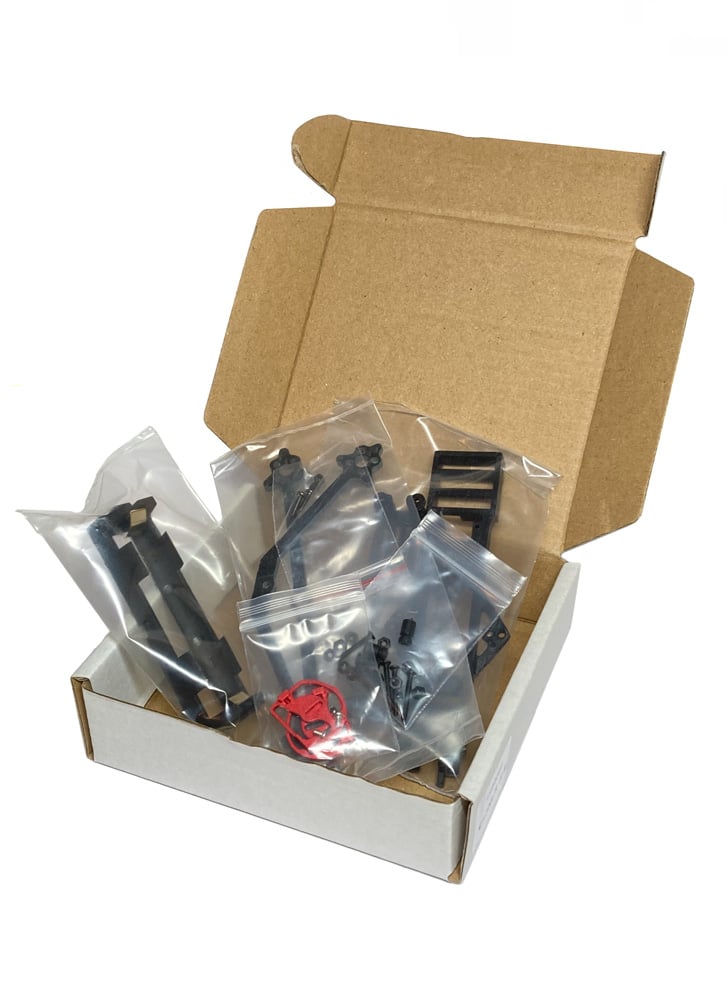

Happymodel Crux3NLR Nano Long Range 18650 Frame Kit
£11.90

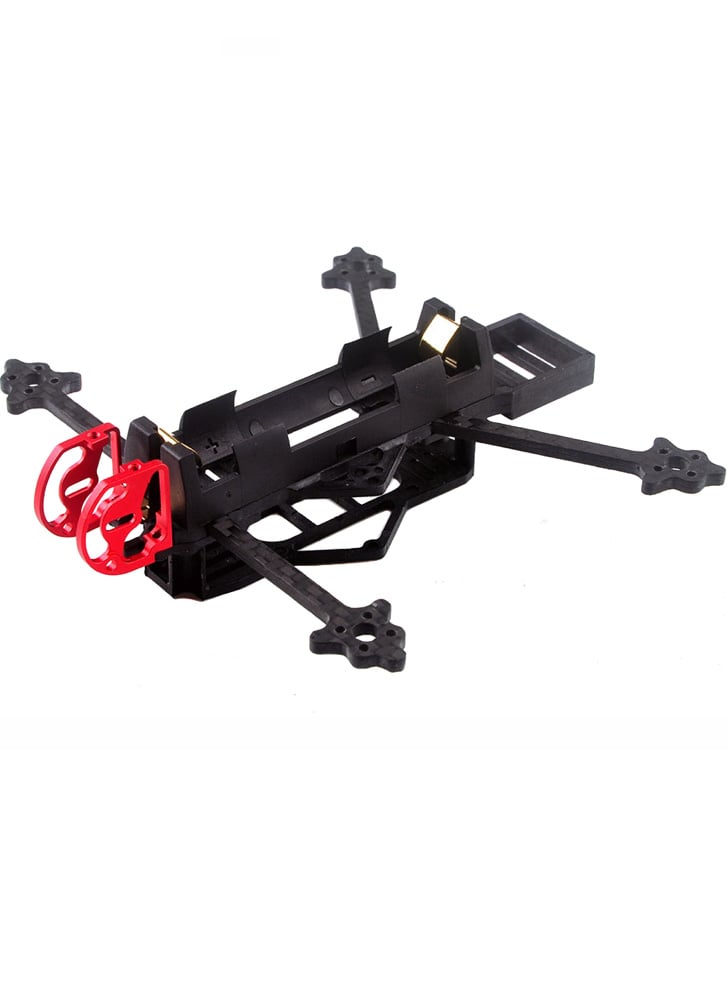

This is an original replacement frame kit for the Happymodel Crux3NLR (Nano Long Range) drone. The frame is using 3K 3MM carbon fibre for the arms and anodised aluminium parts for the camera mount, which suits a Nano size (14MM) FPV camera . The body of the frame is plastic and incorporates a tray to carry a 1S 18650-battery cell and space for a 20x20mm GPS module . While this frame is a spare part for the HappyModel drone, there’s nothing to stop you using it to create your own Nano Long Range Quadcopter. This type of drone is great for cruising, with flight times from a single 18650 cell of up to 15mins!
Recommended parts:
Flight control: 5A_ AIO – Happymodel ELRSF4 2G4 AIO 5-in-1 flight controller
Motor: 1202.5 KV11500 – Happymodel EX1202.5 KV11500
Camera: 14x14mm Nano Camera – Caddx Ant 1200TVL
Propeller: 3 inches – Gemfan 75mm Bi-Blade Propellers
Battery: 18650 -3000mah
Happymodel Crux3NLR Nano Long Range Drone Pre-Built
Specifications
- Material: 3K CarbonFfiber
- Type: 3-inch Frame
- Wheelbase: 132mm
- Size: 128x126mm
- Arm thickness: 3mm
- 18650 battery box
- Flight control installation hole: 25.5×25.5mm and 20mmx20mm
- Support camera: 14mm
- Recommended parts: (not included) Flight control: 5A_ AIO Motor: 1202.5 KV11500 Camera: 14x14mm Propeller: 3 inches Battery: 18650-3000mah
- Flight control: 5A_ AIO
- Motor: 1202.5 KV11500
- Camera: 14x14mm
- Propeller: 3 inches
- Battery: 18650-3000mah
