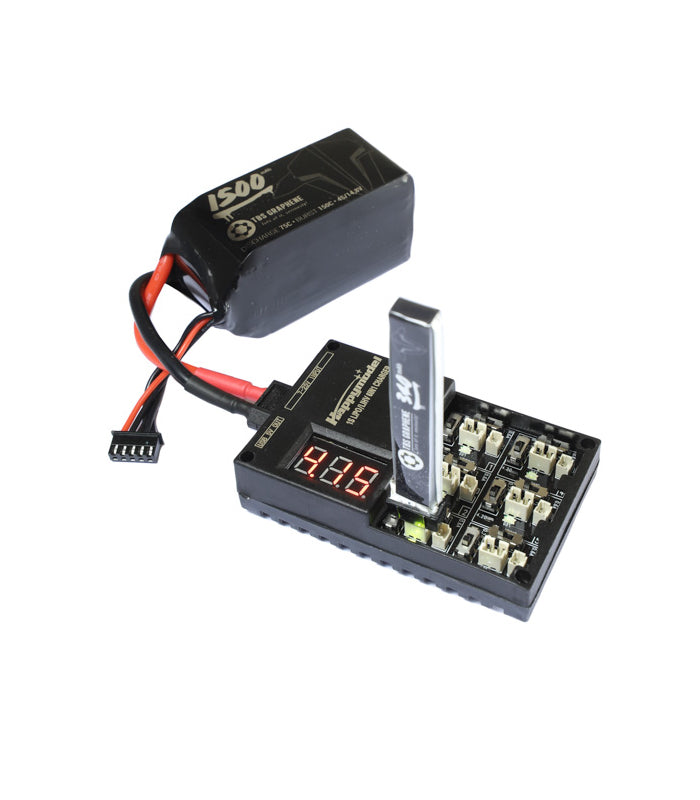

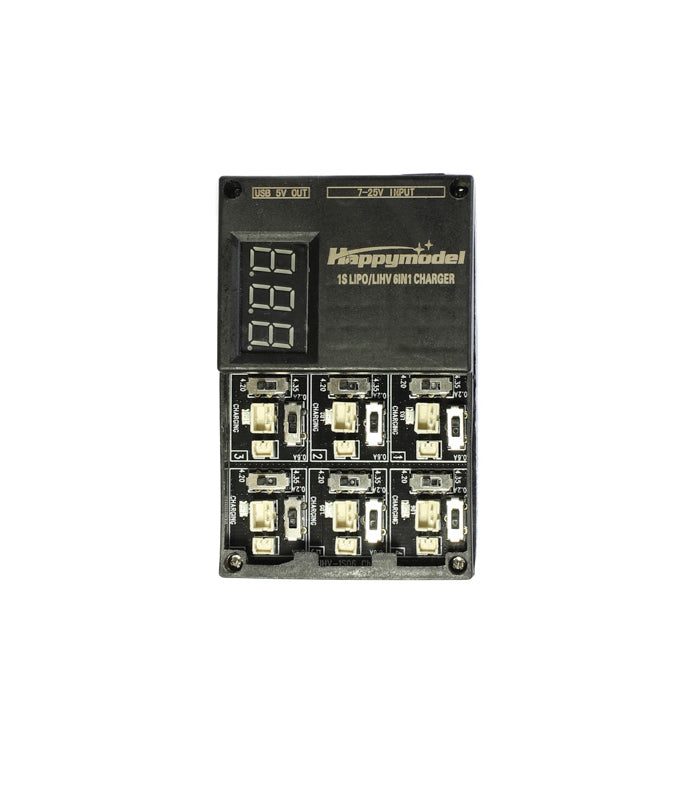

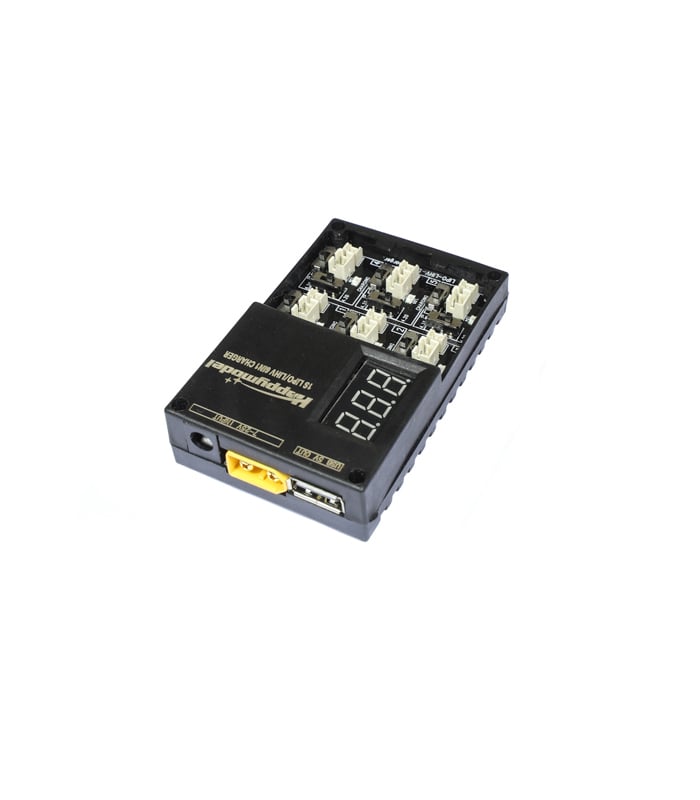

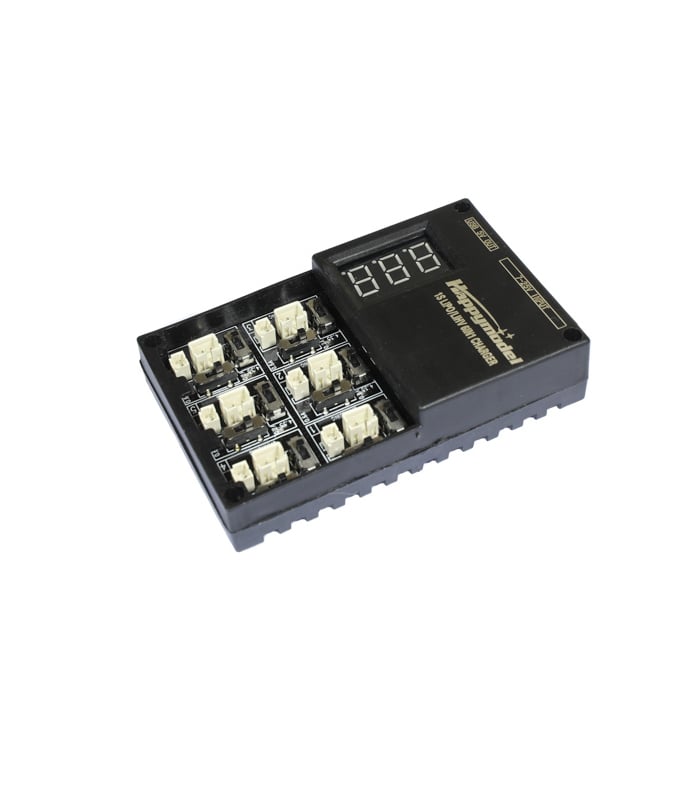

Happymodel 6-in-1 1S Lipo/LiHV Battery Charger

£14.40

This 6-port charger is perfect for charging 1S and 1S HV batteries. It is compatible with Lipo and LiHV chemistries and has two connectors on each port to fit either 1.25mm Picoblade or PH 2.0 batteries. The charge rate is selectable for each channel between 200mA and 600mW. It requires a power supply, you can either use a 2-5S XT60 battery or 2Amp DC mains power plug . Finally, there’s a handy display, which shows the voltage of each channel and a USB 5V output.

Note: Ports are numbered 1-6 – do not put more than one battery on a single port. For example, do not insert one battery on the Picoblade 1.25 plug and another on the same port with the PH 2.0 plug.

Features

• Supports Picoblade 1.25, PH 2.0mm battery
• Supports LiHV 4.35v battery
• Charges 6 batteries at the same time
• The display shows each channel input and output voltage in order.
• Charge at either 200mA or 600mA according to the setting of a switch that can be set independently for each port
• 2-5S (7.4V-22.2V) as a power supply or use adapters with at least 2A output
• Barrel connector is 5.5mm x 2.1mm center pin positive
• DO NOT use the 4.35V charge mode for a normal 1S LiPo. Doing so will overcharge the battery and pose a fire risk. Only charge 1S LiHV batteries to 4.35V.

Specifications

• Input: DC 7V-22V
• Output switchable: Fixed at 200~600 milliamps
• Cutoff voltage switchable:
• 4.20v cell charging cutoff (+- 0.5% margin of error) for 1S Lipo Battery
• 4.35v cell charging cutoff (+- 0.5% margin of error) for 1S 3.8V LIHV Battery
• Weight: 41g
• Dimensions: 82x51x22mm

In the box

• 1x Happymodel 6-way Charger
