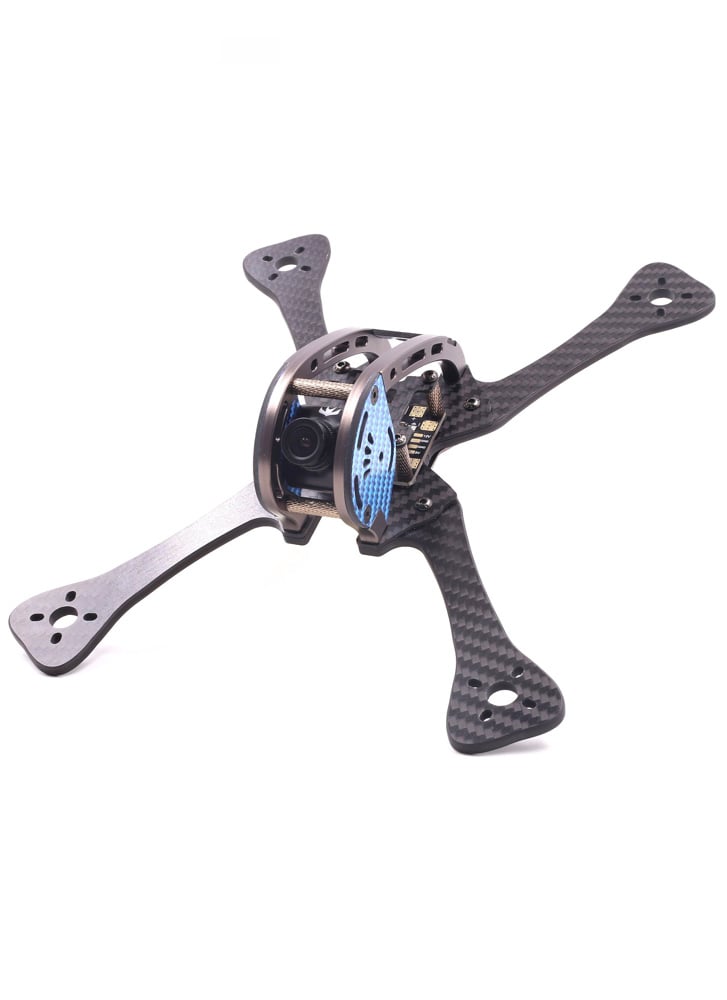

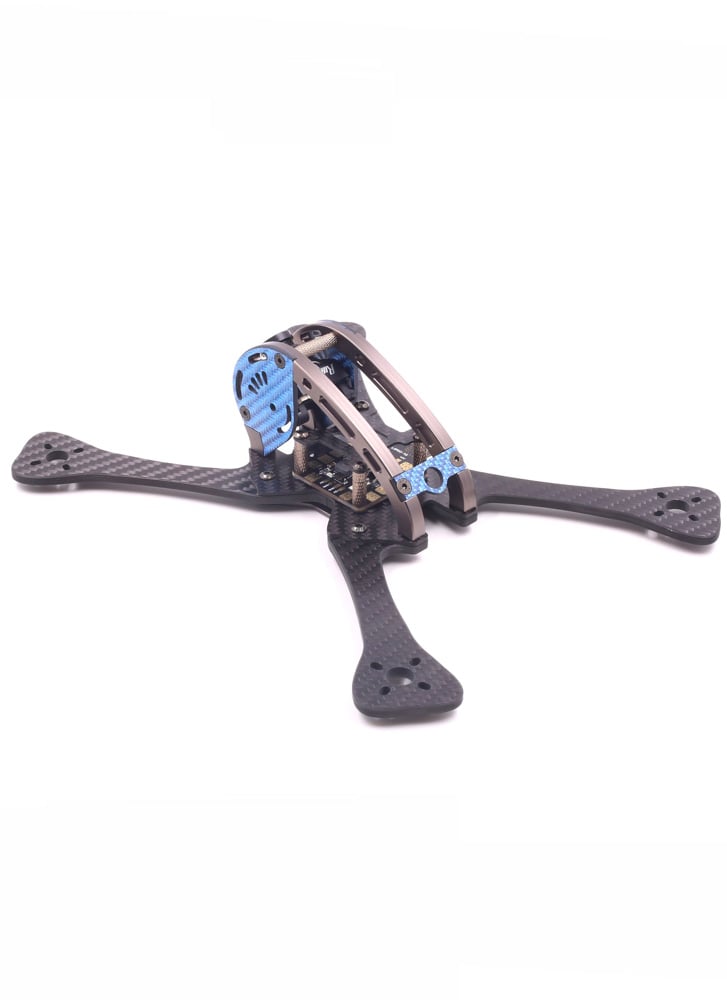

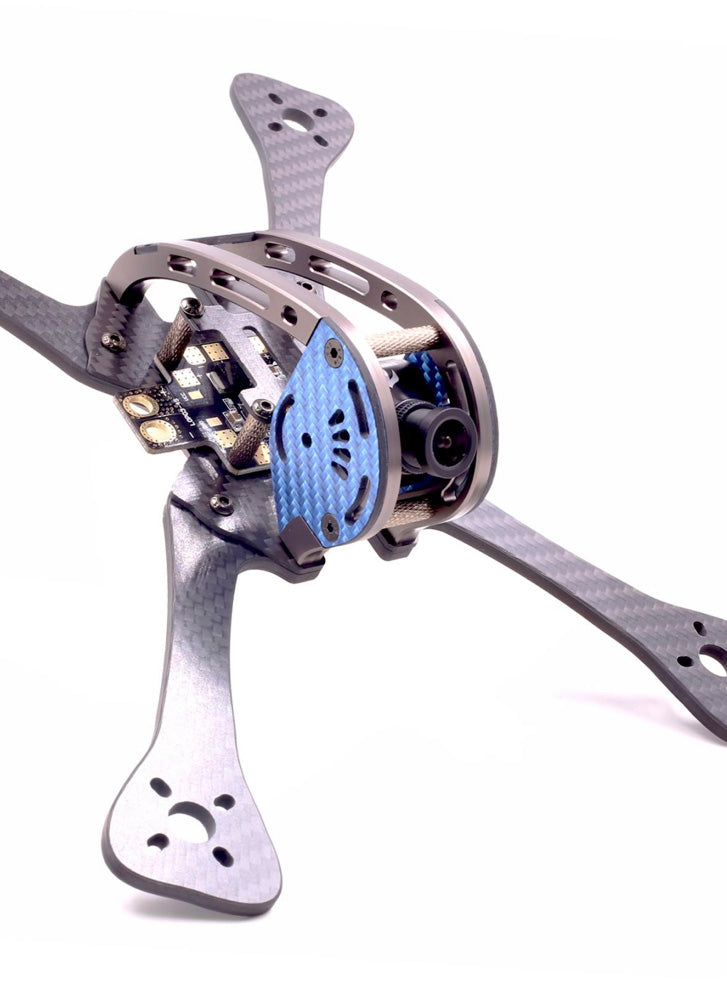

GEPRC GEP-LSX Leopard FPV Racing Drone X Frame 4/5/6

£39.90

The GEP-LSX Leopard series frame is the next generation on from the standard Leopard GEP-LX frame and guess what the ‘S’ stand for? It’s ‘stretch’ and this means that the frame arms have been stretched out in a design that favours the seasoned FPV racer. This stretched wheelbase seems to provide more ‘grip’ when cornering, giving the impression of flying on rails and some pilots says it increases acceleration too.

We stock 3 frame sizes for the GEP-LSX frames – one with 4 inch arms, one with 5 inch arms and one with 6 inch arms. All three frames offer the pilot a strong, durable and reliable quadcopter frame that won’t let you down in tight FPV races. They also look great! These frames come with blue side plates and standoffs.

Note: This listing is just for the frame kit. The FPV camera pictured in the product photographs is not included.

Features

• Good for Racing & Freestyle
• 3 Sizes of Frame – 4″, 5″, 6″
• Comes with the ‘stretched’ design that that results in higher performance in FPV races.
• High Strength 3K Carbon Fibre Drone Frame
• 7075 Aluminium Alloy Reinforcing Structure
• Taiwan YFS screws, 12.9 Level of Hardness

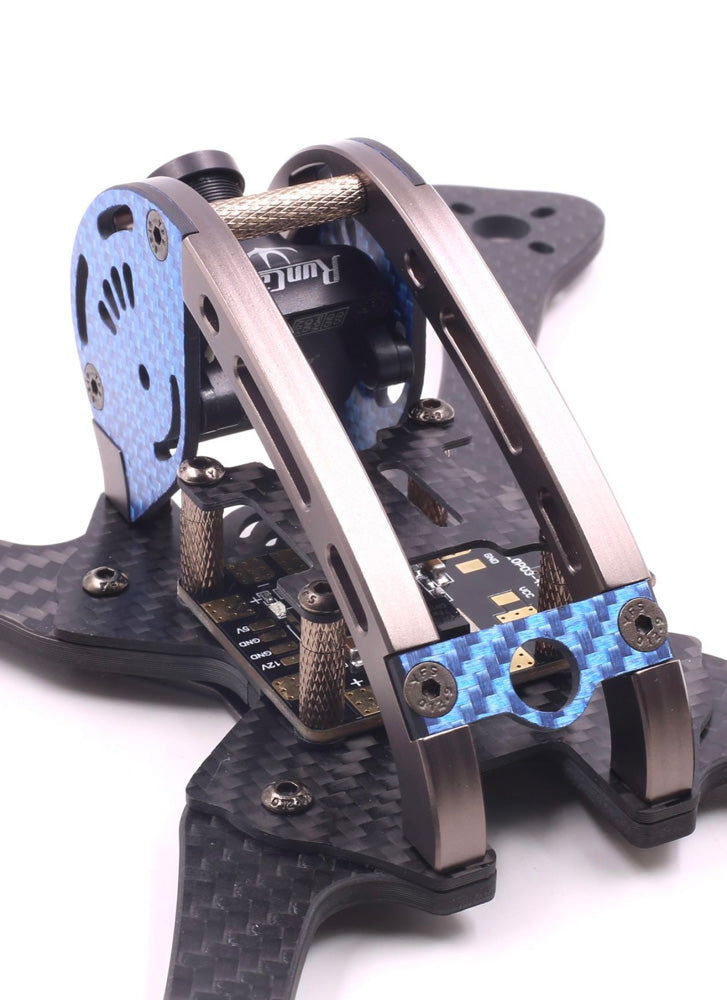

• Adjustable FPV Camera Mount Supports many different FPV camera types such as the HS1190, HS1177 and Swift.
• Comes with a PDB with an integrated XT60 connected and 5/12V outputs.
• The motor position has been widened, making it harder to hit the motors
• Fixed Antenna Mount

Recommended Parts:

Flight controller (F4 / F3 / Naze32)

Brushless motor (2204/ 2205/ 2206/ 2305/ 2306)

Brushless ESC (20A-30A)

Battery (3S 1300mAh ~ 4S 1500mAh)

Propellers: LSX4 195mm use 4 inch propellers LSX5 220mm use 5 inch propellers LSX6 255mm use 6 inch propellers

LSX4 195mm use 4 inch propellers

LSX5 220mm use 5 inch propellers

LSX6 255mm use 6 inch propellers

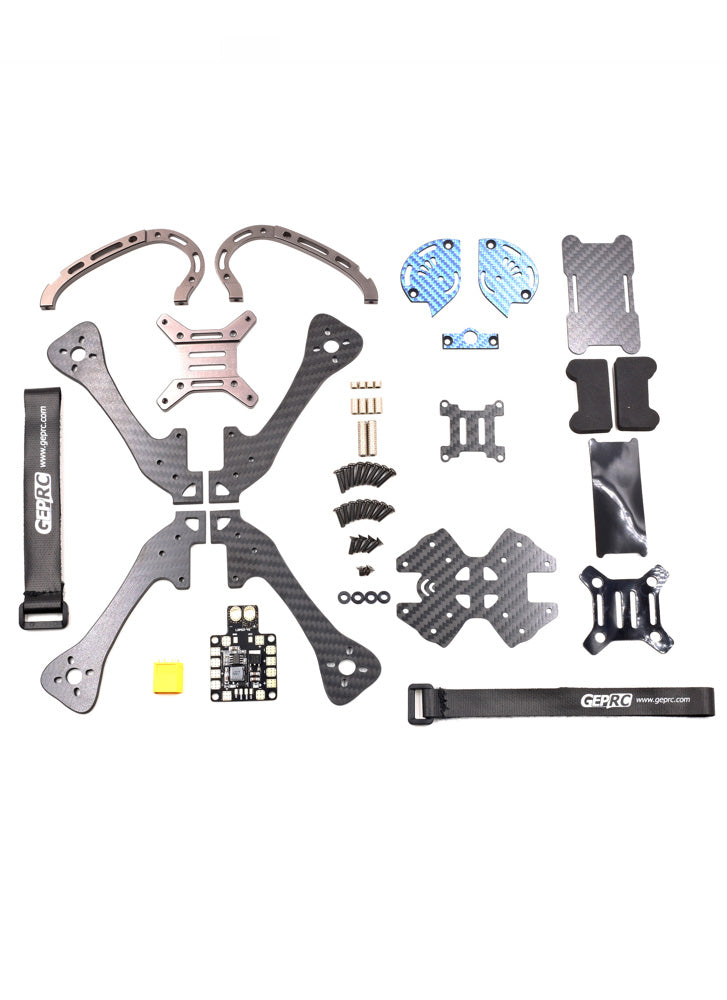

Included:

1 x GEP LSX Leopard FPV Racing Frame

2x GEPRC Sticker Sheet

1x PDB 5V & 12V

2x Battery Strap

Specifications

• Material: 3K Carbon Fibre / 7075 Aluminium
• Arms board: 4mm
• Side board: 2mm
• Other board: 1.5mm
• Wheelbase: 230mm
• Props Size: 5inch
• Size: 195x195mm
• Weight: 114g
• Flight Controller: F3 / F4 / Naze32 / CC3D
• Motor: 2204/2205/2206/2305/2306
• ESC: 20A-35A
• Props: 5inch
• Battery: 3S 1300mAh ~ 4S 1500mAh
